TU425SE 3.0

Thermal Imaging Scope

The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.

400x300IR Resolution

1920×10800.49" AMOLED Display

20mKNETD

OTA Upgradefor the latest firmware

  • Thermal Imaging Scope 1
  • Thermal Imaging Scope 2
  • Thermal Imaging Scope 3
  • Thermal Imaging Scope 4
  • Thermal Imaging Scope 5
  • Thermal Imaging Scope 6

模块1图片-TU425SE 3.0_销售工具_详情页专题-1920 850.jpg

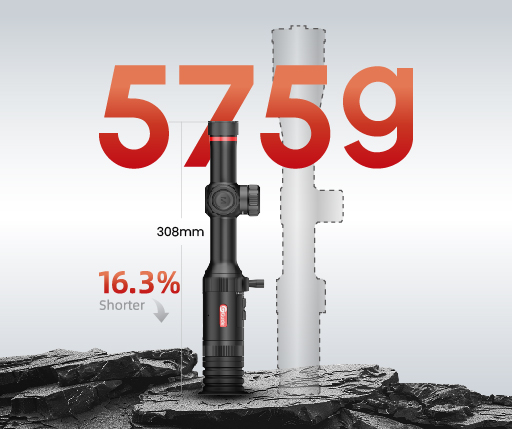

  • LPVO Style Ultra Light & Compact

    By adopting a LPVO style design, the TU SE 3.0 Series revolutionarily combines ultra-compact housing with advanced thermal technology, providing a superior size and weight experience compared to traditional scopes.

    • 官网产品详情页卖点图512X429-01.jpg
  • Hyper-Light Algorithm Ultra-Premium Visuals

    Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.

    • 官网产品详情页卖点图512X429-02.jpg
  • Shutterless Design Uninterrupted Visuals

    The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.

    • 官网产品详情页卖点图512X429-03.jpg

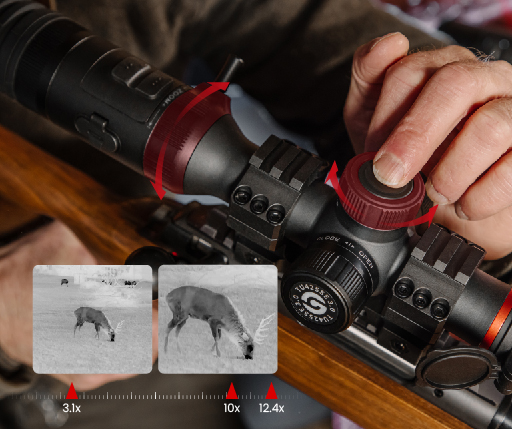

  • Tailored for Hunters Seamless Control

    After rounds of field testing, we evaluate the design features based on hunters’ feedback, adjusting and refining them to meet user habits. The focus wheel, zoom lever and button layouts are crafted with ergonomic detail for intuitive control.

    • 官网产品详情页卖点图512X429-04.jpg

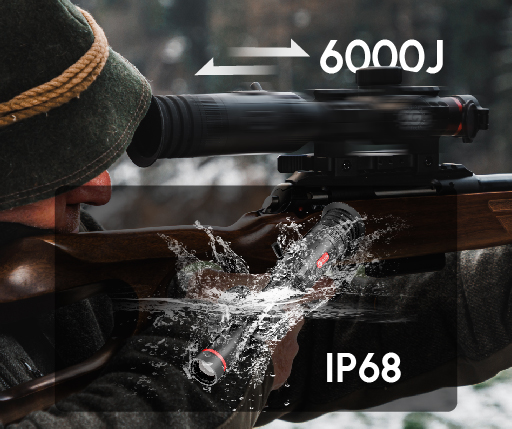

  • Rugged, Durable High Protection

    Considering the harsh environment in the field, the scope must be sufficiently durable and sturdy. It features shock resistance up to 6000J to withstand recoil and an IP68 waterproof rating.

    • 官网产品详情页卖点图512X429-05.jpg

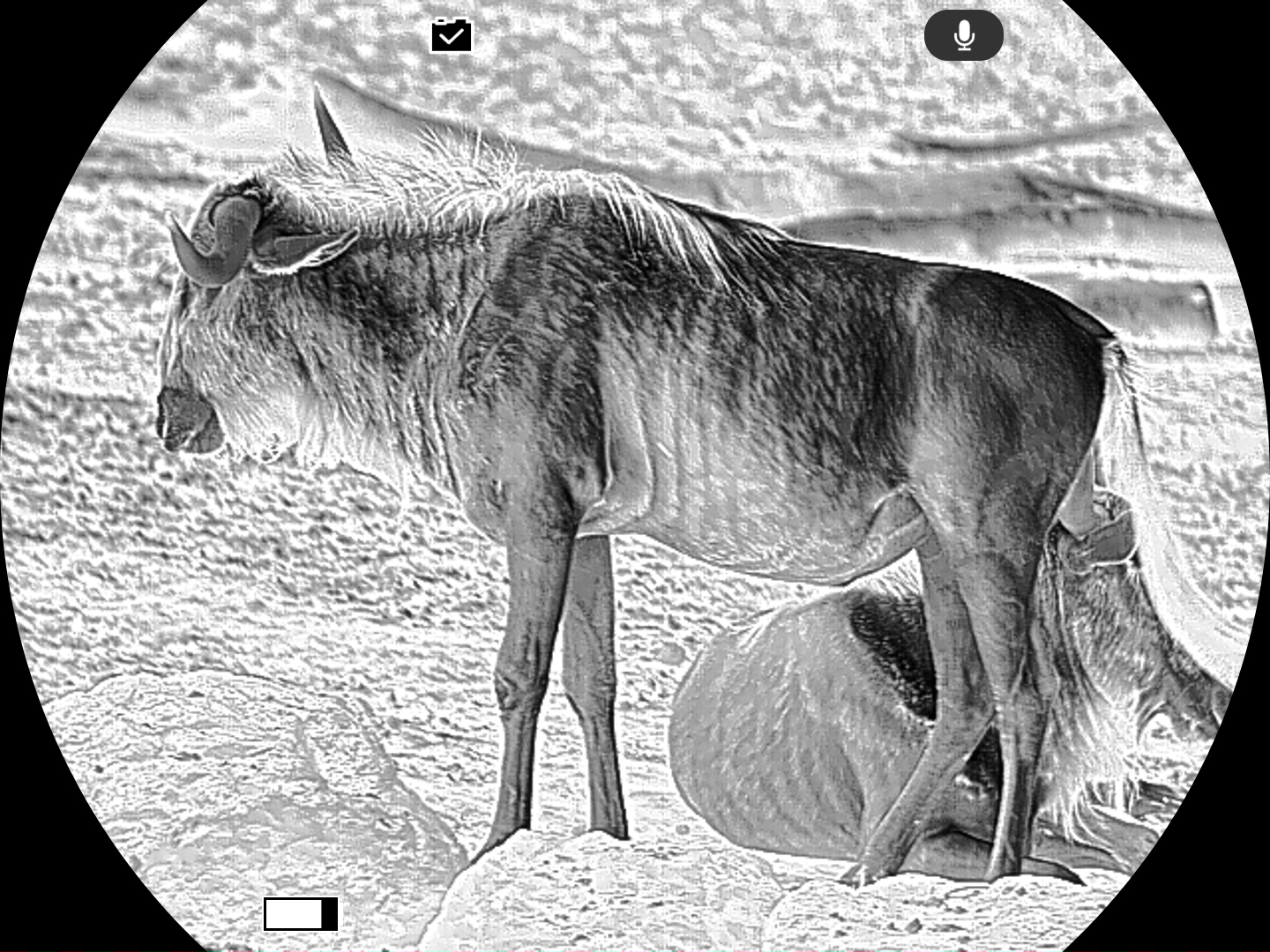

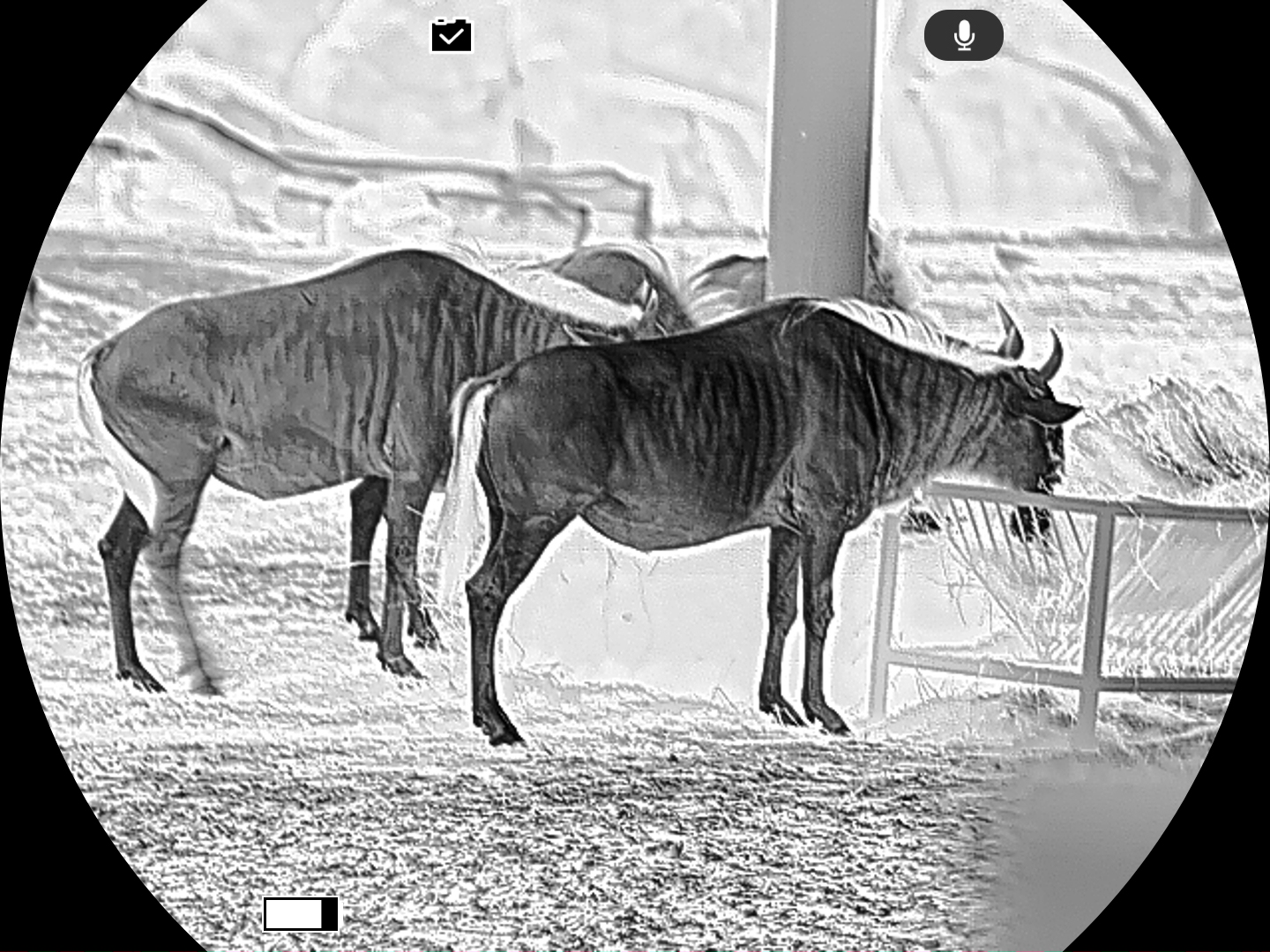

Media Gallery

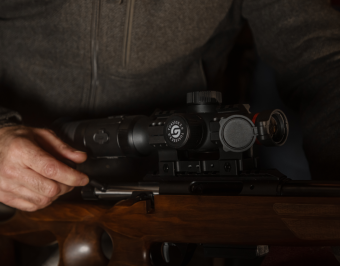

  • TU425SE 3.0 Field Test_01.png

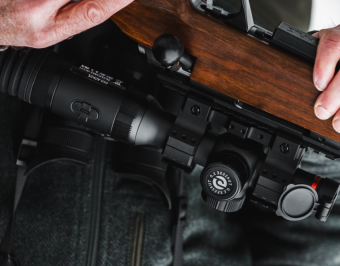

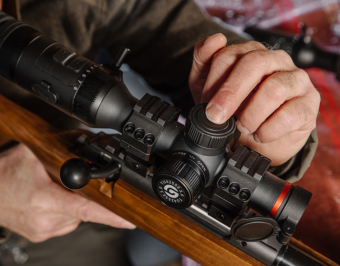

  • TU425SE 3.0 Field Test_02.png

  • TU425SE 3.0 Field Test_03.png

Technical Parameters

Model

TU425SE 3.0

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 20mK
Frame rate 50 Hz
Lens
Objective lens 25mm, F1.0
Field of view 10.3°×6.2°
FOV m@100m 18×11
Magnification 3.1x~12.4x
Detection range 1300m/1400yd
Focus Manual
Display
Display type 0.49'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x
Hardware
WIFI 2.4G, 5G
Interface USB-C (Charge/USB2.0)
Tube diameter Standard 30 mm
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time 12 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 6000J/1200G
Encapsulation IP68
Physical
Weight (g/oz) 575/20.28
Size (mm/in) 311×89×76/12.24×3.50×2.99
Standard Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger,  5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, Laser Rangefinder, 18650 Battery
