TU650P 3.0

Thermal Imaging Scope

The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, long-range solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.



640×512@12μmIR Resolution

18mKNETD

1.03'' 2560×2560AMOLED Display

1500mLaser Range

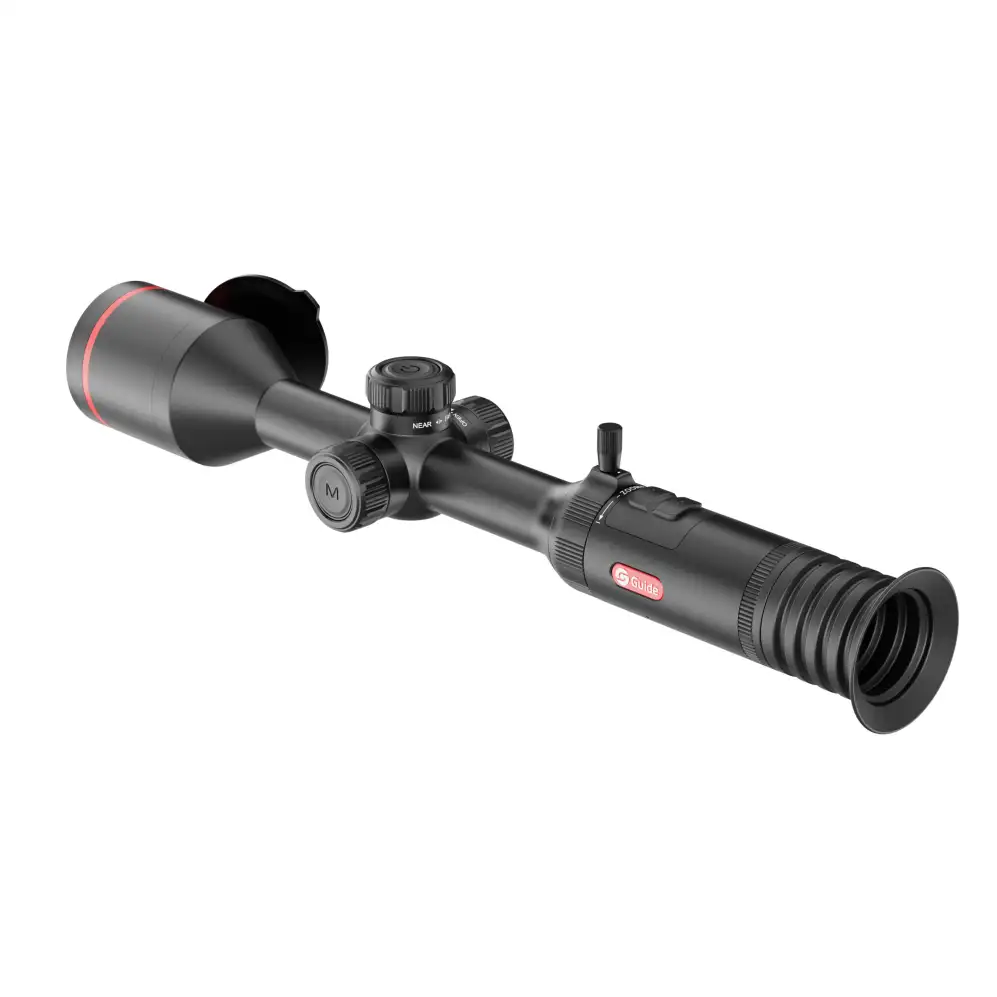

  • Thermal Imaging Scope 1

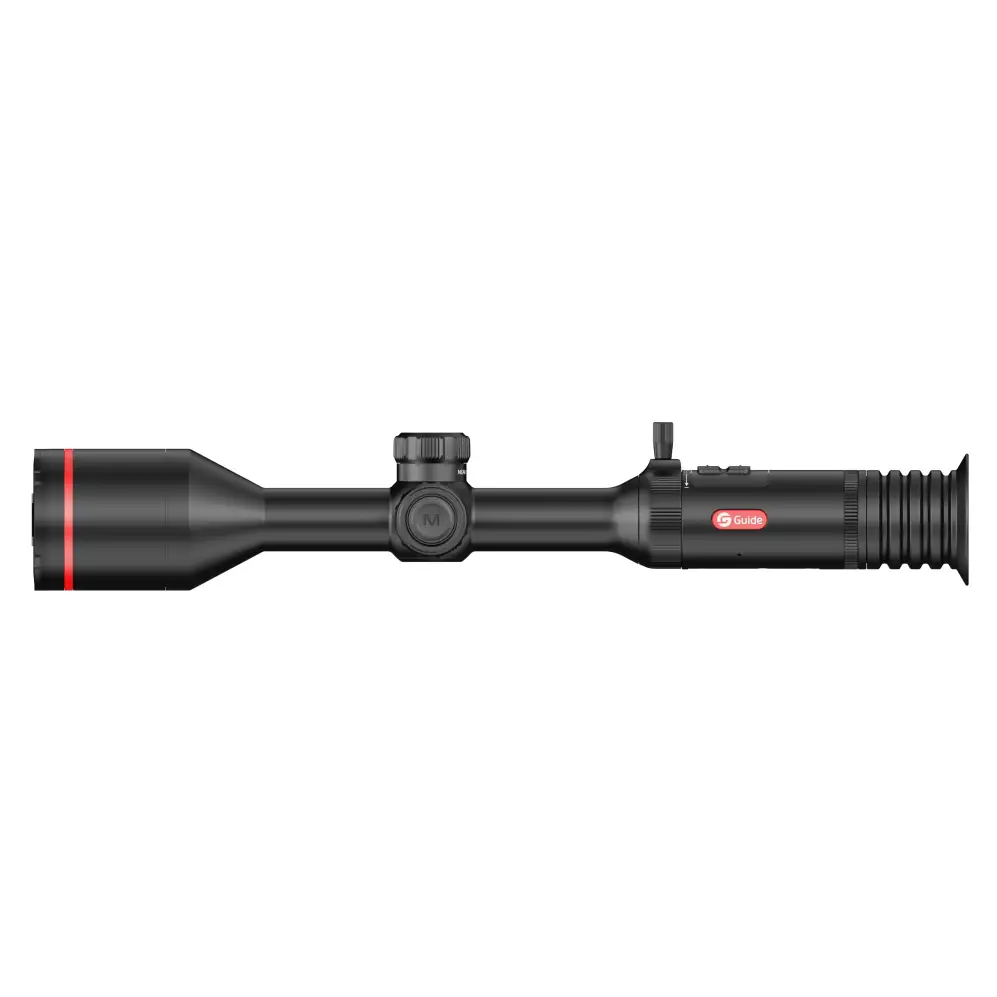

  • Thermal Imaging Scope 2
  • Thermal Imaging Scope 3

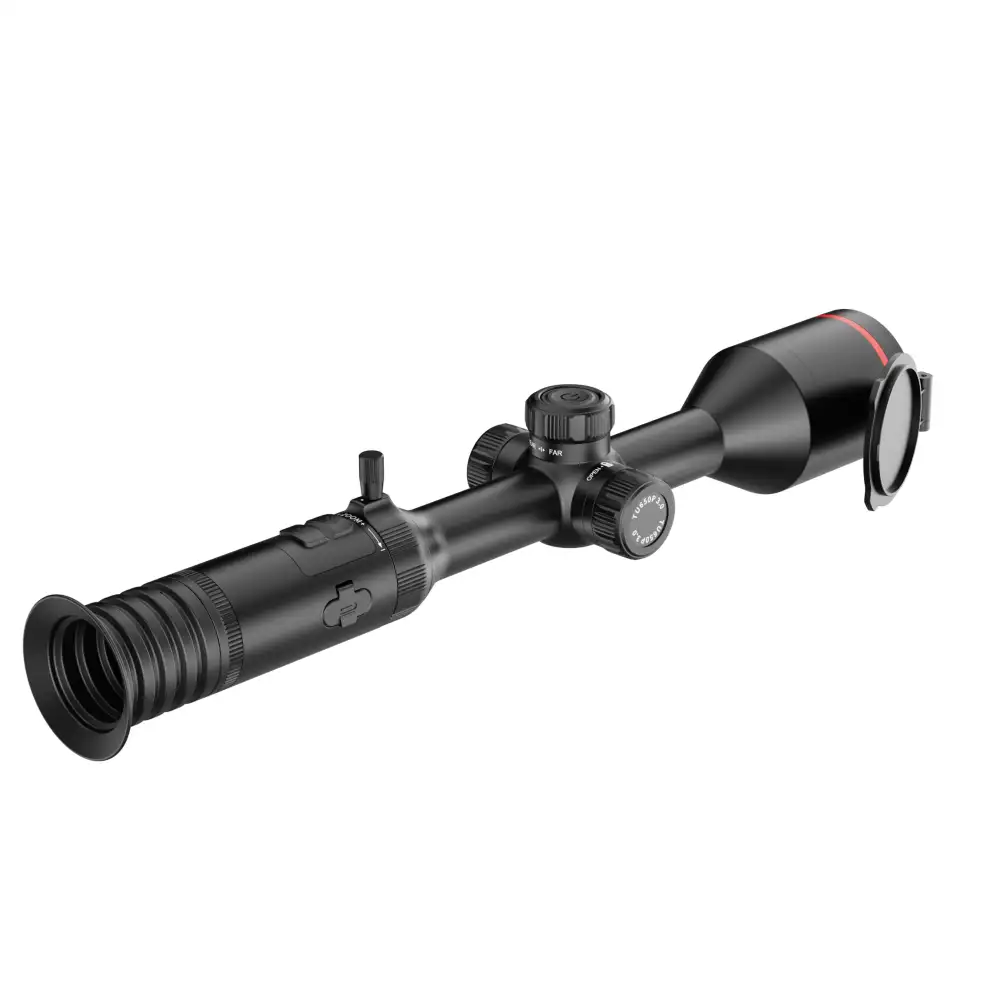

  • Thermal Imaging Scope 4
  • Thermal Imaging Scope 5

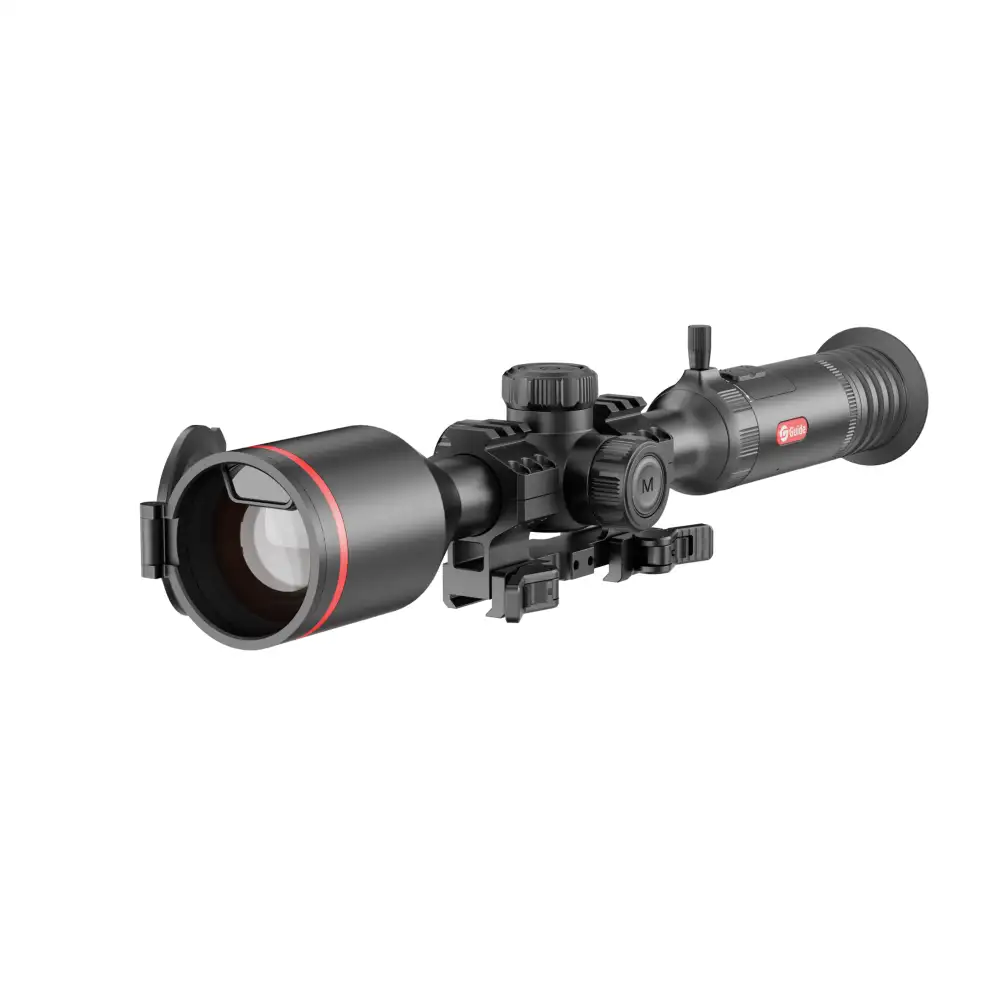

  • Thermal Imaging Scope 6

KV-1920 850@2x-100 (1).jpg

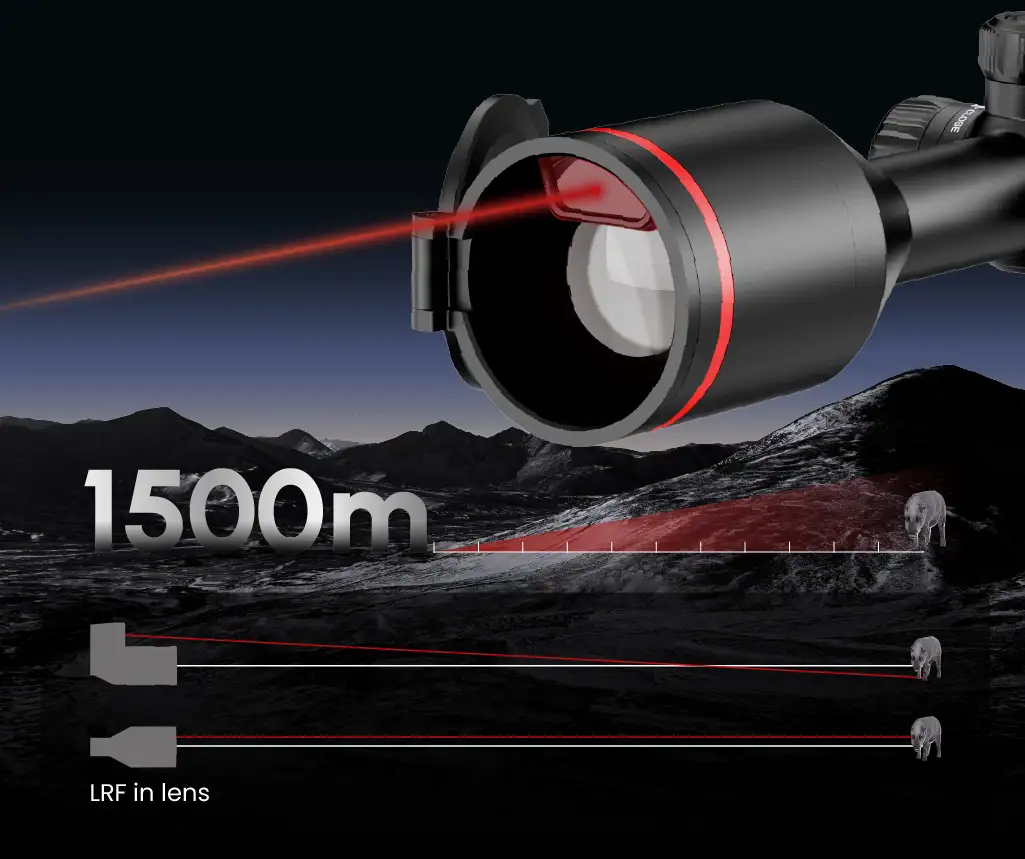

  • LRF in Lens Precision Shooting

    By seamlessly integrating the laser rangefinder module into the objective lens, the TU Pro 3.0 minimizes the baseline distance to the optical axis. This design significantly reduces parallax error, ensuring pinpoint ranging accuracy while keeping the device compact.

    • 1. LRF in Lens Precision Shooting.jpg
  • Hyper-Light Algorithm Ultra-Premium Visuals

    Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.

    • 2. Hyper-Light Algorithm Ultra-Premium Visuals.jpg

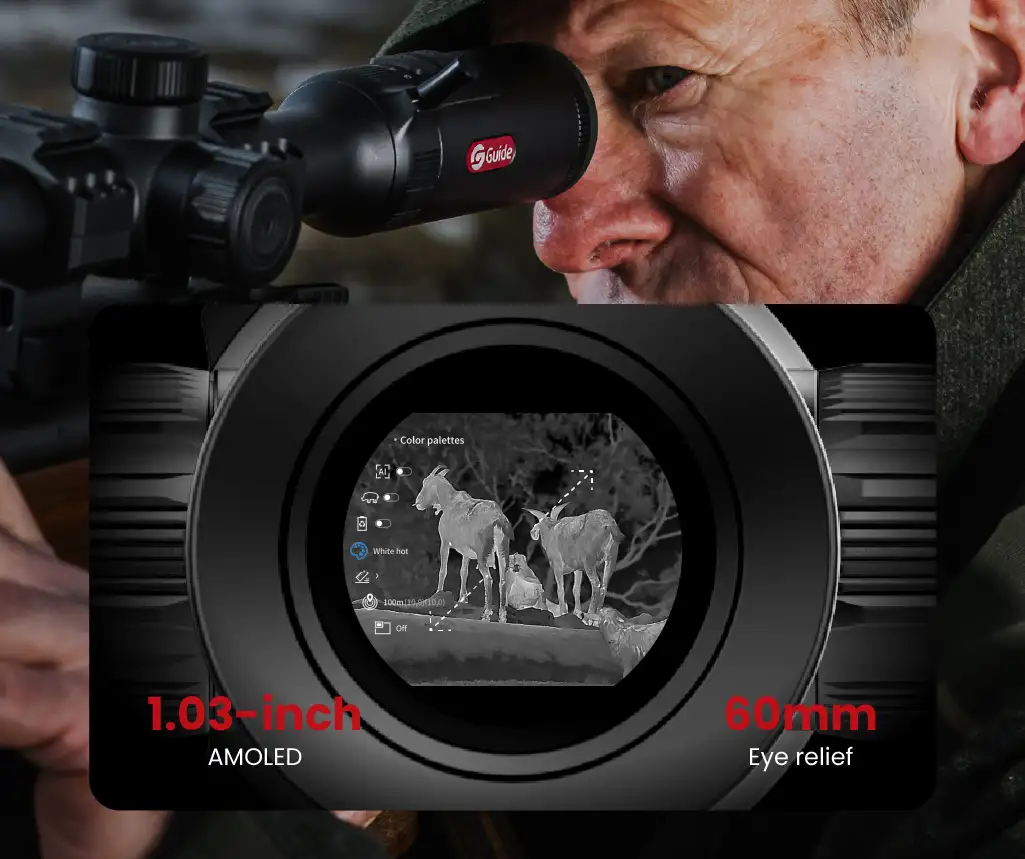

  • 2560×2560 Display Comfortable Viewing

    Equipped with a 1.03-inch AMOLED display of 2560×2560 resolution, the TU Pro 3.0 Series features 60mm eye relief and AI-enhanced imaging, ensuring crisp visuals while reducing eye strain for long-lasting comfort.

    • 3. 2560×2560 Display Comfortable Viewing.jpg

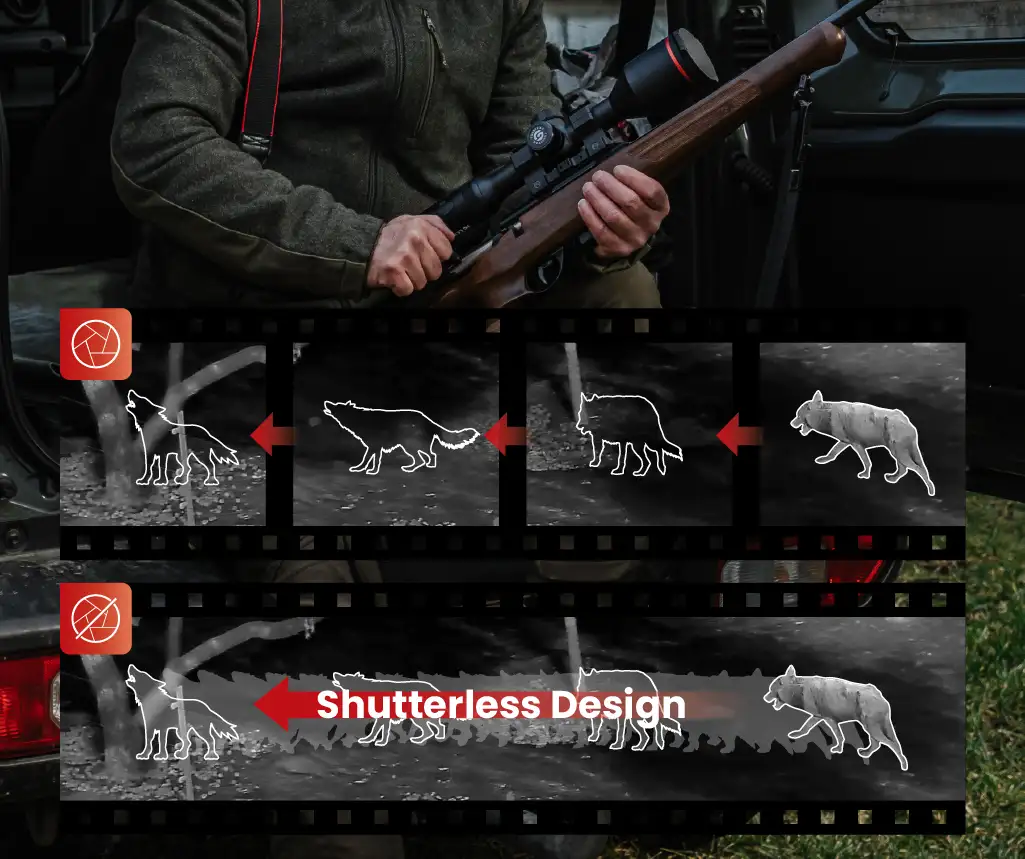

  • Shutterless Design Uninterrupted Visuals

    The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.

    • 4. Shutterless Design Uninterrupted Visuals.jpg

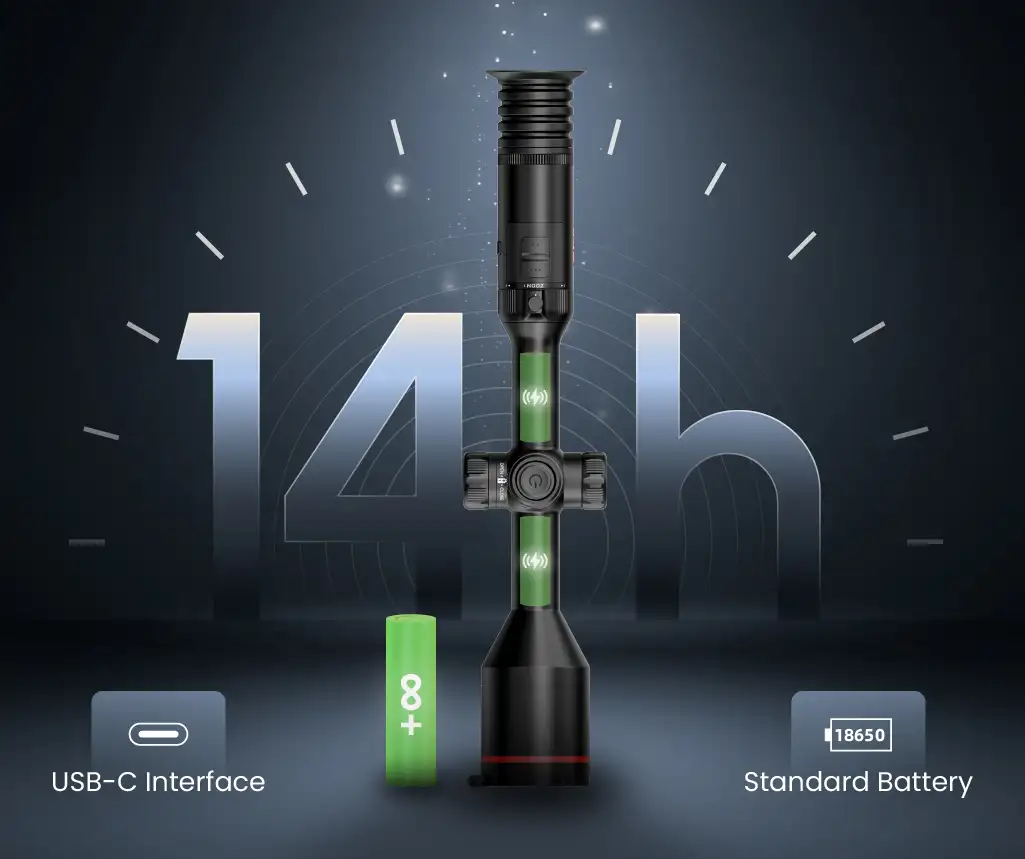

  • Dual Battery Design Worry-Free Power

    2 built-in batteries and an external battery system offer strong power backup for extended hunting sessions of up to 14 hours. Moreover, the replaceable standard 18650 batteries support hot swapping, enabling virtually unlimited runtime.

    • 5. Dual Battery Design Worry-Free Power.jpg

Media Gallery

  • Media Gallery_01.png

  • Media Gallery_02.png

  • Media Gallery_03.png

Technical Parameters

Model

TU650P 3.0

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 18mK
Frame rate 50 Hz
Lens
Objective lens 50mm, F0.9
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 3.7x~29.6x
Detection range 2600m/2800yd
Focus Manual
Display
Display type 1.03'' AMOLED 2560×2560
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x
Hardware
Laser Rangefinder 1500m/1630yd
WIFI 2.4G, 5G
Interface USB-C (Charge/USB2.0)
Tube diameter Standard 30 mm
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 256GB
Power
Battery type 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time 14 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 6000J/1200G
Encapsulation IP68
Physical
Weight (g/oz) 923/32.56
Size (mm/in) 451×90×79/17.75×3.54×3.11
Standard Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger,  5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, 18650 Battery
