TU435P 3.0
Thermal Imaging Scope
The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, long-range solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.
400×300@12μmIR Resolution
18mKNETD
0.49'' 1920×1080AMOLED Display
1000mLaser Range
ADD TO COMPARE
-

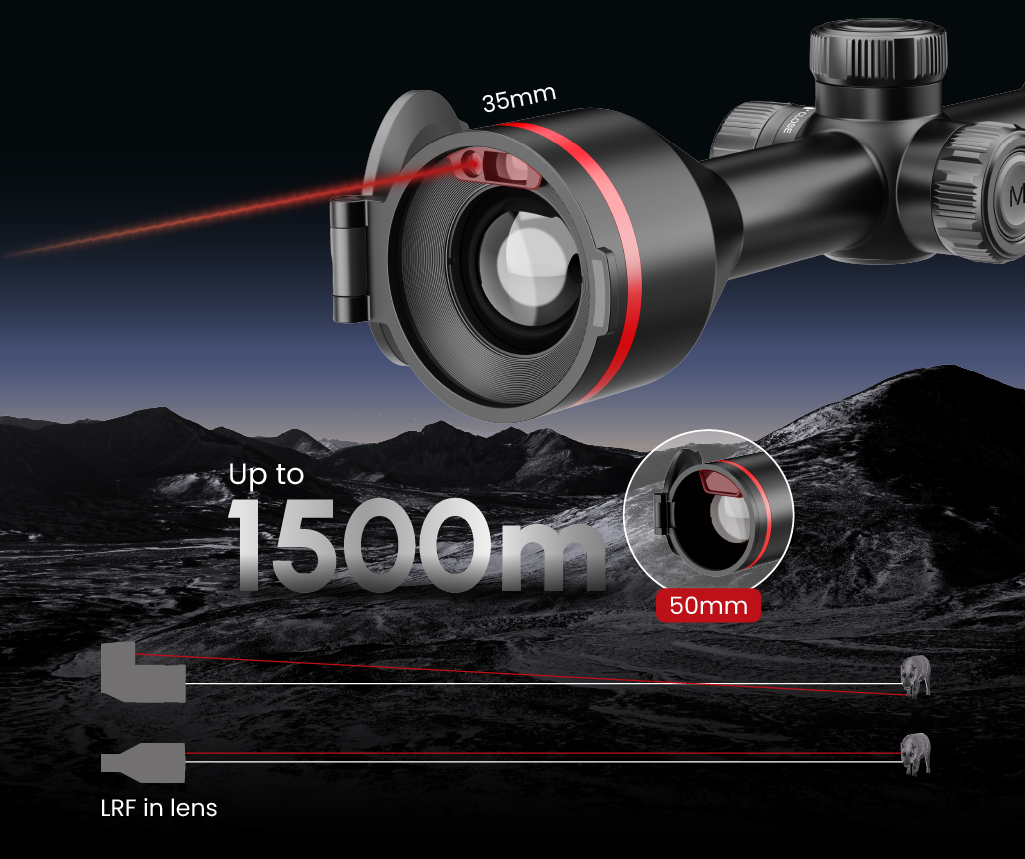

Integrated LRF in Lens Perfected Precision
The innovative lens construction integrates the laser rangefinder into the objective lens, reducing overall device size for a compact, streamlined tube appearance. Meanwhile it eliminates parallax error for maximum ranging accuracy.
-
-

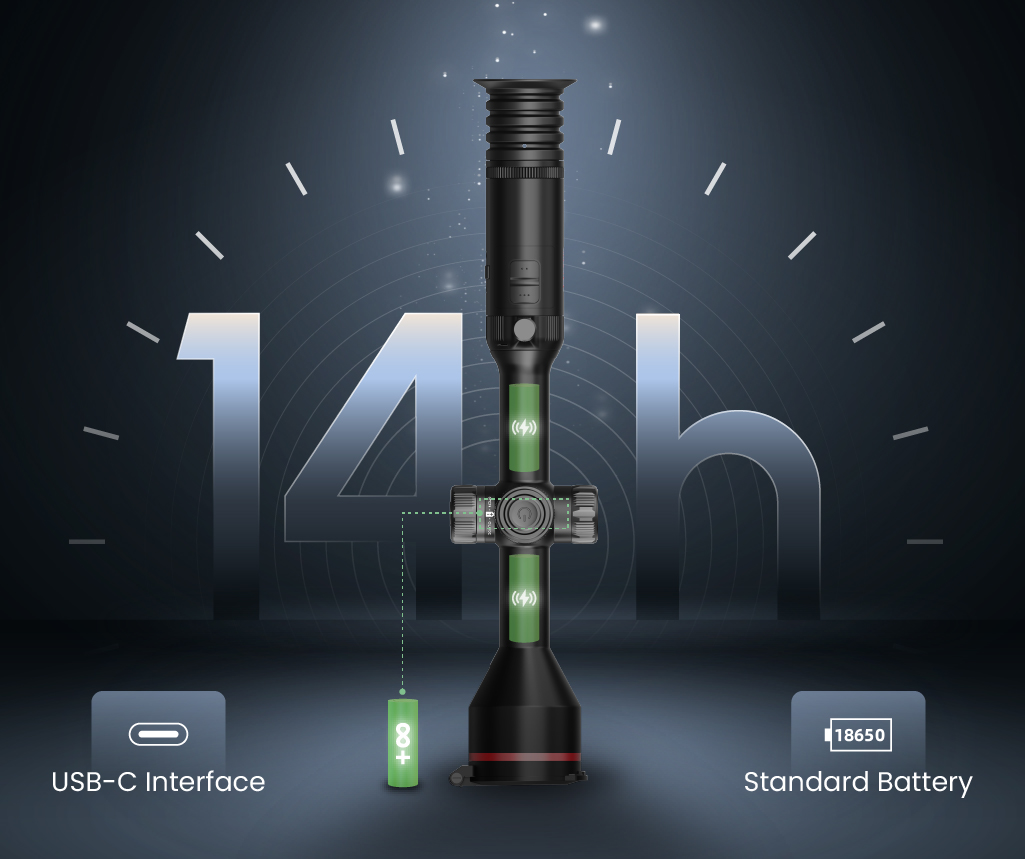

Dual Battery Design Worry-Free Power
The dual battery system offers strong power backup for extended hunting sessions of up to 14 hours. Moreover, the replaceable standard 18650 batteries support hot swapping, enabling virtually unlimited runtime.
-
-
Ultralight Design Effortless Handling
The TU Pro 3.0 Series is built for all-day comfort, weighing only 730g~923g without sacrificing durability. Its meticulously balanced design reduces arm fatigue, ensuring easy carrying and comfortable handling during extended outdoor use.
-
-
Easy Focus & Zoom Intuitive Operation
Built on extensive field testing and hunter feedback, TU Pro 3.0 was refined in every detail—from the focus wheel to the zoom lever and button layout. The ergonomic design is crafted for comfort and intuitive control.
-
-
Recoil Resistance Rugged and Durable
Engineered for all-weather reliability, TU Pro 3.0 performs flawlessly in rain, snow, or dust. It features shock resistance up to 6000J to withstand recoil and an IP68 waterproof rating for demanding outdoor missions.
-
Media Gallery
Technical Parameters
Model
TU435P 3.0
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.4°×4.4° | |||
| FOV m@100m | 13×8 | |||
| Magnification | 4.4x~17.6x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser Rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18500 ×1 Battery (Built-in) and 18650 ×2 Battery (External) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 730/25.75 | |||
| Size (mm/in) | 358×89×80/14.09×3.50×3.15 | |||
| Standard | Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
