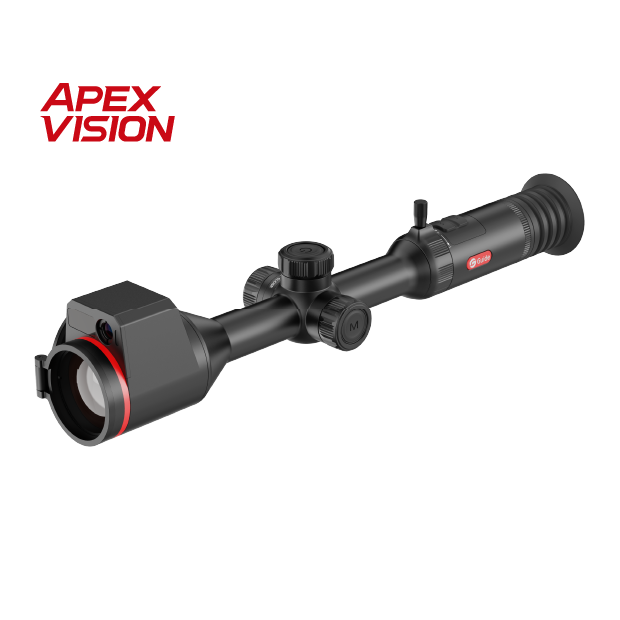

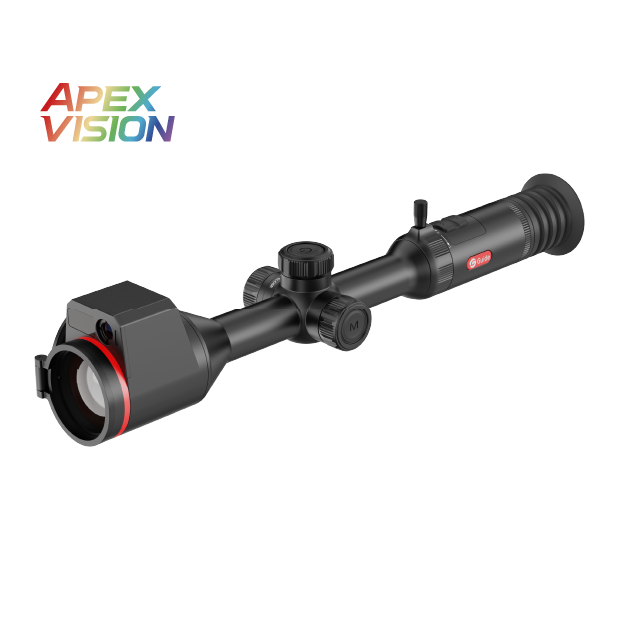

TU1260MS

Thermal Imaging Scope

The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, long-range solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.

1280×1024@12μmIR Resolution

15mKNETD

1920×1080@2.9μmDigital Resolution

3200mDetection range

Product Manual

Download the APP

ADD TO COMPARE

Complete ApexVision S1 System Architecture

Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
Thermal & Optical All-Day. All-Weather

The TU MUO 3.0 Series integrates thermal imaging and visible light with day, night and low-light modes. It’s the ideal device for both day and nighttime hunting — whether in the woods, bushes, rain, or snow.
Hyper-Light Algorithm Ultra-Premium Visuals

Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.

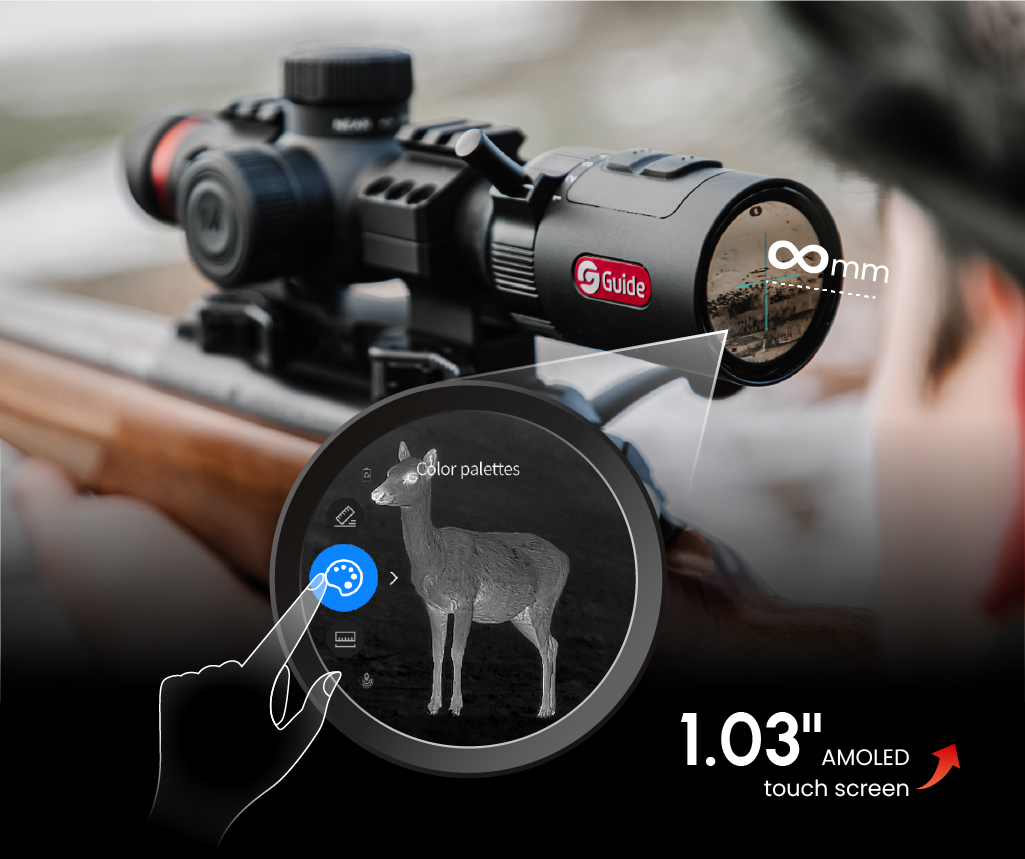

QHD AMOLED Display Comfortable Viewing

Equipped with a 1.03-inch AMOLED display of 2560×2560 resolution, the TU MUO 3.0 Series features 60mm eye relief and AI-enhanced imaging, ensuring crisp visuals while reducing eye strain for long-lasting comfort.

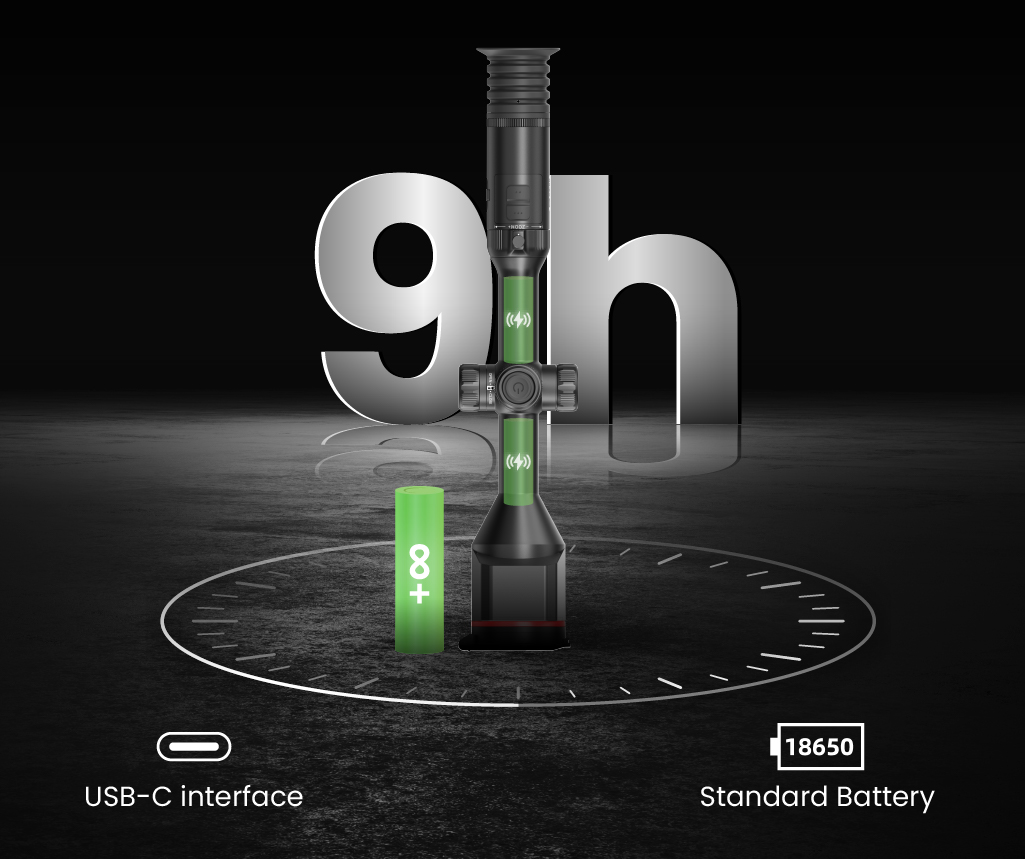

Dual Battery Design Worry-Free Power

2 built-in batteries and an external battery system offer strong power backup for extended hunting sessions of up to 9 hours. Moreover, the replaceable standard 18650 batteries support hot swapping, enabling virtually unlimited runtime.
Smart Recording Best Moments Captured

The recoil-activated recording function automatically captures a 15-second video and 5 photos of each shot, and provides instant video playback. The ultra-large 256GB storage ensures every breathtaking shot is saved.

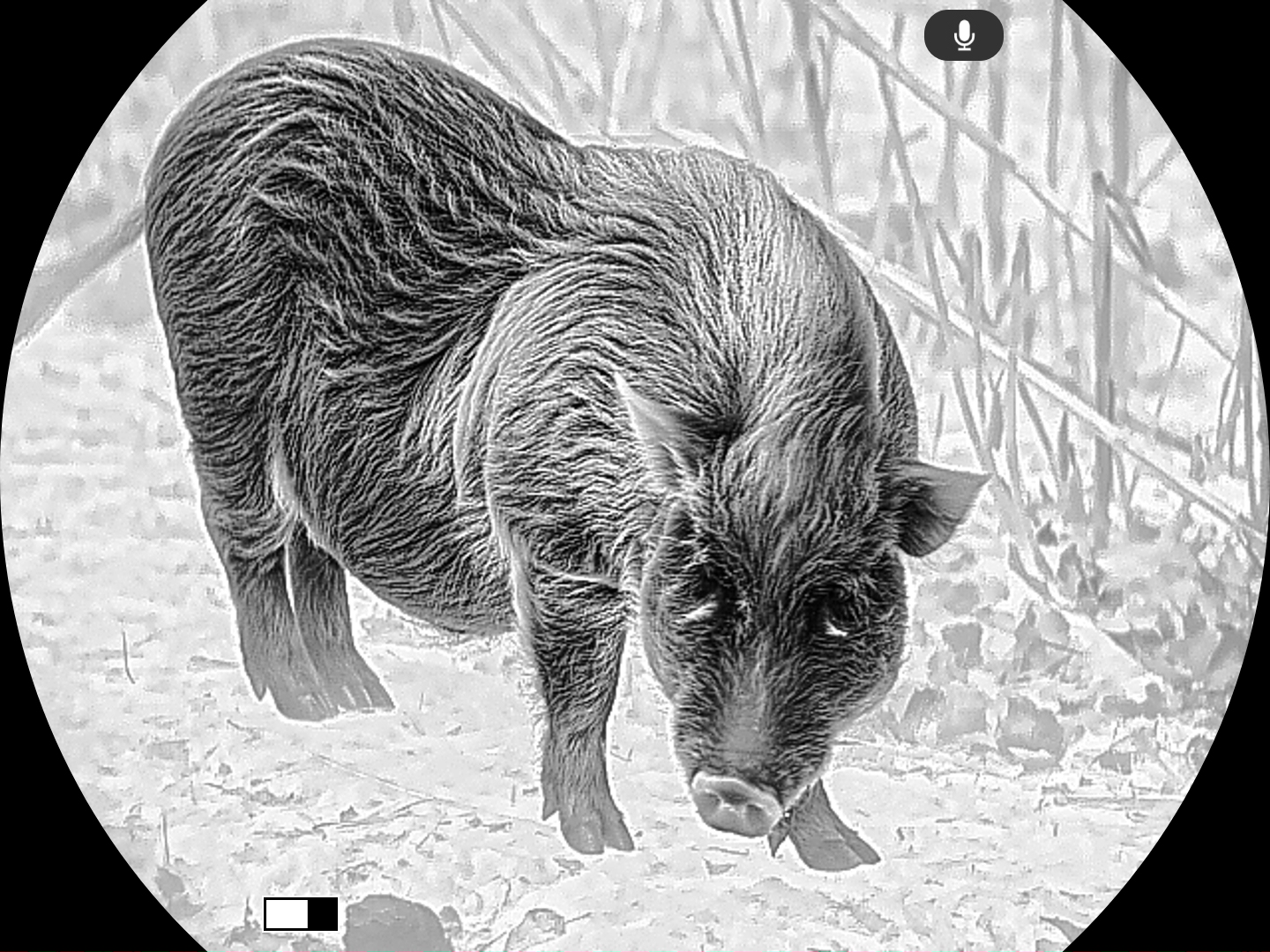

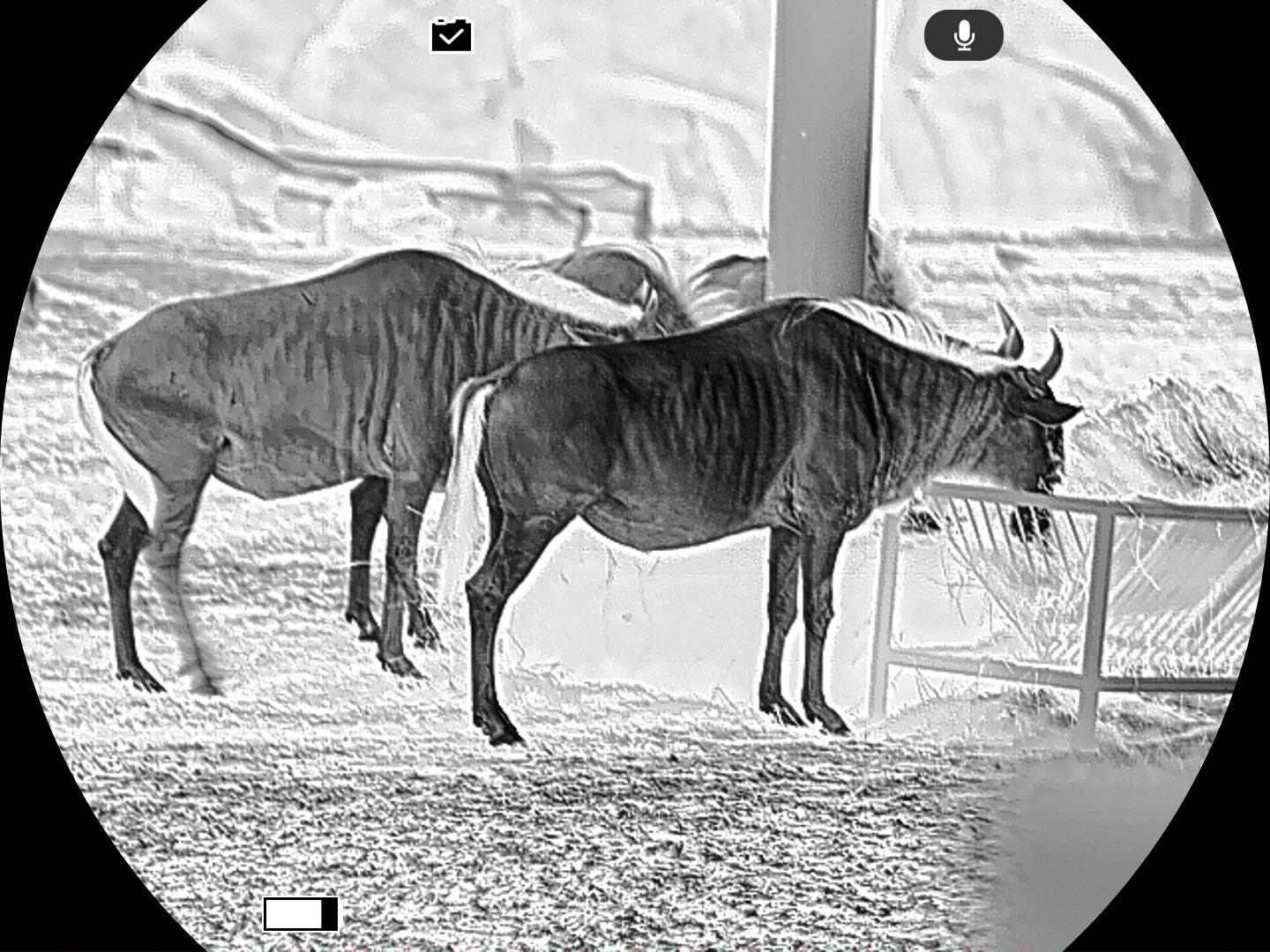

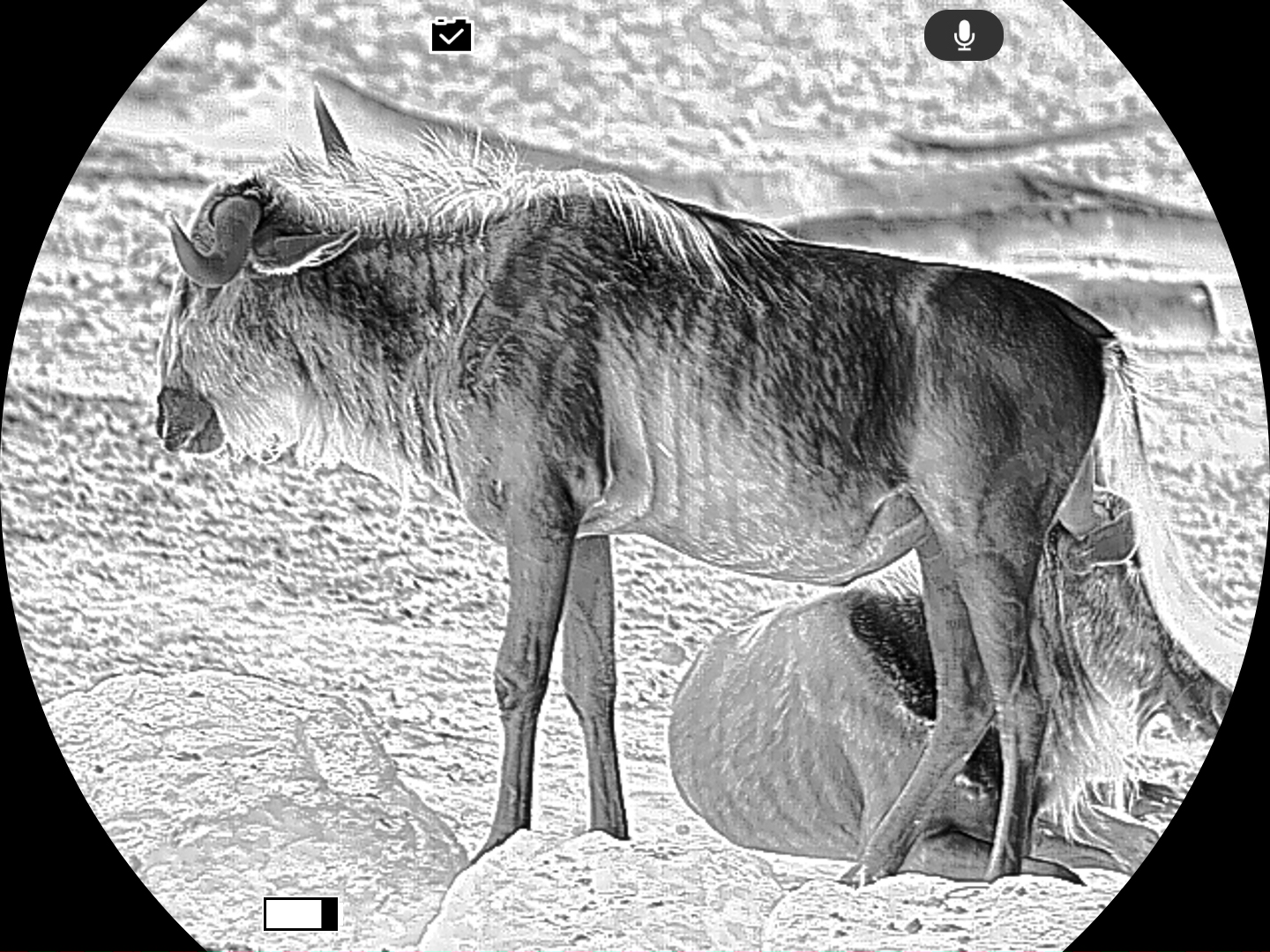

Media Gallery

Technical Parameters

Model

TU1260MS

ADD TO COMPARE

Sensor
Core Technology Item	Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type	Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution	Thermal: 1280×1024@12μm (NETD 15mK); Digital: 1920×1080@2.9μm
Frame rate	50Hz

Lens
Objective lens	Thermal: 60mm, F1.0; Digital: 35mm, F4.0
Field of view	Thermal: 14.6°×11.7°; Digital: 6.4°×5.1°
FOV m@100m	Thermal: 25×20; Digital: 11×9
Magnification	Thermal: 2.3x~36.8x; Digital: 5.1x~81.6x
Detection range	Thermal: 3200m/3500yd; Digital: 330m/360yd
Focus	Manual

Display
Display type	1.03'' AMOLED 2560×2560
Color palettes	IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light
Eyepiece	Eye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x

Hardware
Laser rangefinder	1500m/1630yd
WIFI	2.4G, 5G
Interface	USB-C (Charge/USB2.0)
Tube diameter	Standard 30 mm
Others	Microphone, Bluetooth

System
Recording function	Photo/Video (Audio recording included)
Memory capacity	256GB

Power
Battery type	18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
Operating time	9 hours

Environmental
Operating temp.	-20°C to 50°C / -4°F to +122°F
Shock	6000J
Encapsulation	IP68

Physical
Weight (g/oz)	1145/40.39
Size (mm/in)	450×90×91/17.72×3.54×3.58
Standard	Device, Eye Mask, Quick-Release Scope Mount, Carry Bag, Accessory Bag, Lint-Free Cloth, IR Illuminator, IR Illuminator Bracket, 18650 Battery ×2, Battery Charger, USB-A to USB-C Cable, Quick Start Guide, Warranty Card, 5V 2A Adapter (US, UK, Australia, and Europe)
Optional	Bluetooth Remote Control, 18650 Battery
