TU651

Thermal Imaging Scope

The TU Gen2 Series is equipped with a high-sensitivity thermal sensor of 12μm and a 1440×1080 HD AMOLED display. Paired with the robust PureIR image algorithm, it provides users with a more vivid and detailed visual experience. The product has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.

640×512IR Resolution

1440×10800.49" AMOLED Display

12 HoursBattery Life

OTA Upgradefor the latest firmware

  • 1.png
  • 2.png
  • 3.png
  • 4.png
  • 5.png

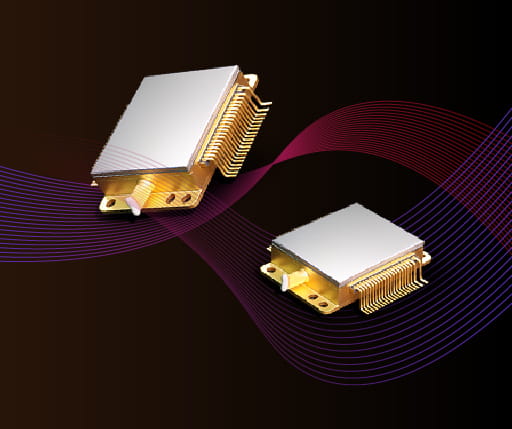

  • High Definition Thermal Sensor, NETD Optimized to 20mK

    High-quality thermal imaging sensor with 400x300@12μm or 640x512@12μm resolution with clear distinctions allows for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape.

    • TU2LRFtedian(1).jpg
  • 0.49-inch 1440x1080 AMOLED Display

    The enlarged 0.49-inch AMOLED display presents more image details for making decisions. The heat signature captured by the thermal image can be shown on the display using the picture-in-picture (PIP) mode, significantly enhancing the comfort observation.

    • TU2LRFtedian(2).jpg

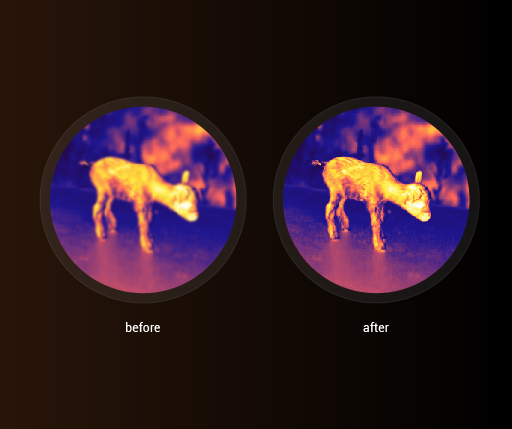

  • PureIR Adaptive Dynamic Filtering Algorithm (PureIR)

    The PureIR combining 3DNR and PureIR adaptive filtering algorithms delivers high-sensitivity thermal images, reducing image distortion and enriching detail even for distant targets.

    • TU2LRFtedian(3).jpg

TUSeriespc.jpg TUSeriesph.jpg

Technical Parameters

Model

TU651

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50 Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 3.0x~23.6x
Detection range 2600m/2800yd
Display
Display type 0.49'' AMOLED 1440×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48 mm; Diopter ± 4; Zoom: 14x
Hardware
WIFI 2.4G
Interface USB Type-C; Micro HDMI
Tube diameter Standard 30 mm
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 128GB
Power
Battery type Single 18650 battery (built-in) and customized battery (external)
Operating time 12 hours
Environmental
Operating temp. -30°C to 50°C / -22°F to +122°F
Shock 800G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP67
Physical
Weight (g/oz) 1000/35.27
Size (mm/in) 381×106×68/15.00×4.17×2.68
Standard Device, Lens cover, Eye mask, 5V2A adapter (US, Britain, Australia and Europe), Customized battery×2, Customized battery charger, USB Type-C cable, Micro HDMI cable, Clip×2, Quick start guide, Warranty card
Optional Bluetooth remote control, Customized battery
