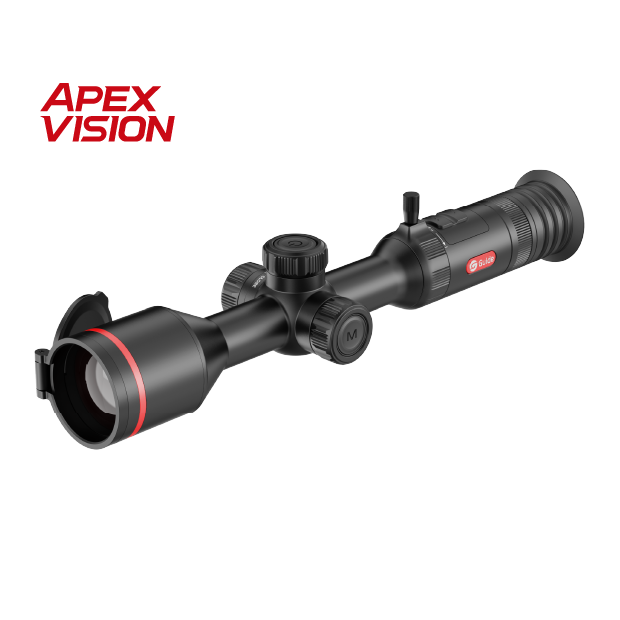

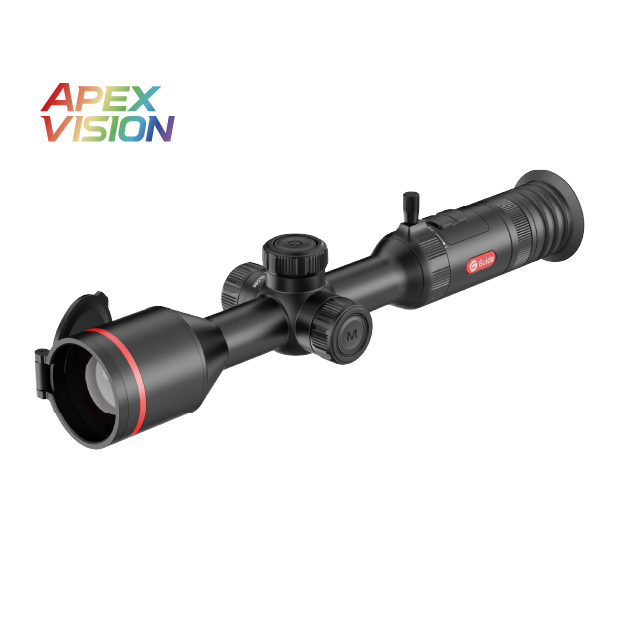

TU650S
Thermal Imaging Scope
The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.
640×512@12μmIR Resolution
15mKNETD
2560×25601.03'' AMOLED Display
14 hoursBattery Life
ADD TO COMPARE
-
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
-
-
Hyper-Light Algorithm Ultra-Premium Visuals
Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.
-
-

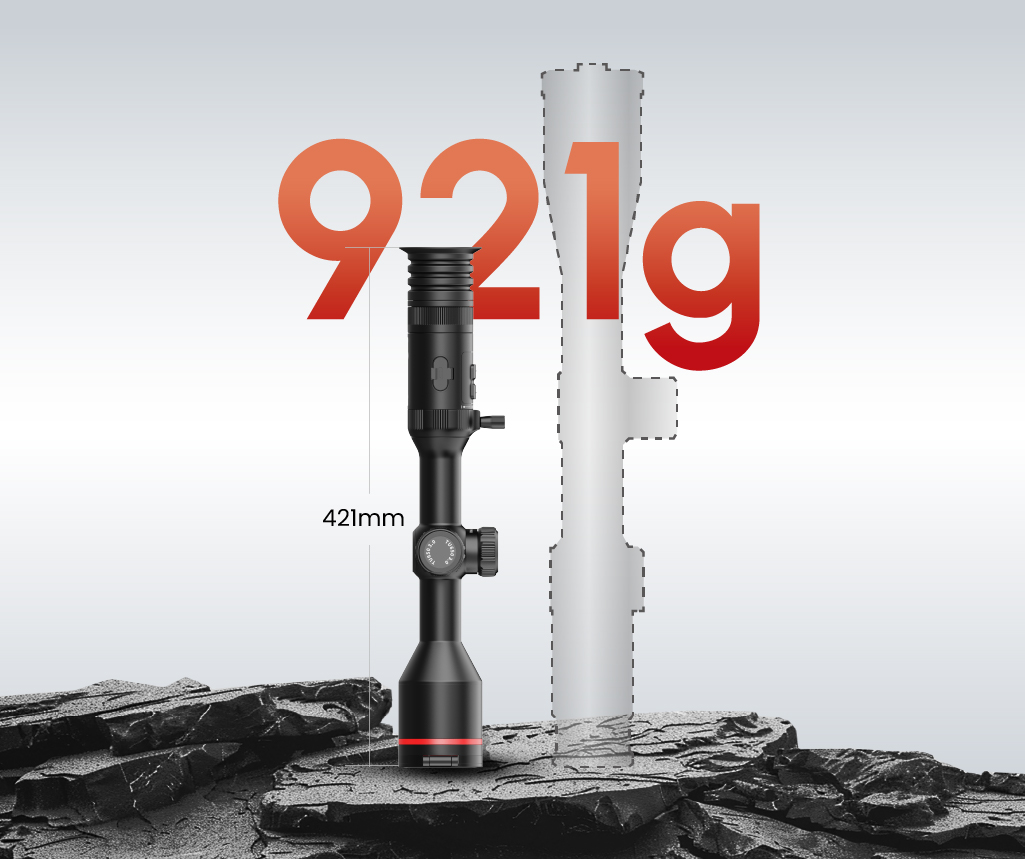

Lightweight Design Compact Housing
Compared to the previous generation, TU 3.0 adopts a more compact and lightweight design, Its slim, metallic housing provides a comfortable grip.
-
-
Shutterless Design Uninterrupted Visuals
The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.
Note: The shutter module has been retained to ensure high image quality during startup and under significant temperature variations.
-
-
Seamless Control Easy Focus & Zoom
Built on extensive field testing and hunter feedback, TU 3.0 was refined in every detail—from the focus wheel to the zoom lever and button layout. The ergonomic design is crafted for comfort and intuitive control.
-
-
Rugged Design All-Weather Reliability
Engineered for all-weather reliability, TU 3.0 performs flawlessly in rain, snow, or dust. It features shock resistance up to 6000J to withstand recoil and an IP68 waterproof rating for demanding outdoor missions.
-
Technical Parameters
Model
TU650S
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F0.9 | |||
| Field of view | 8.8°×7.0° | |||
| FOV m@100m | 15×12 | |||

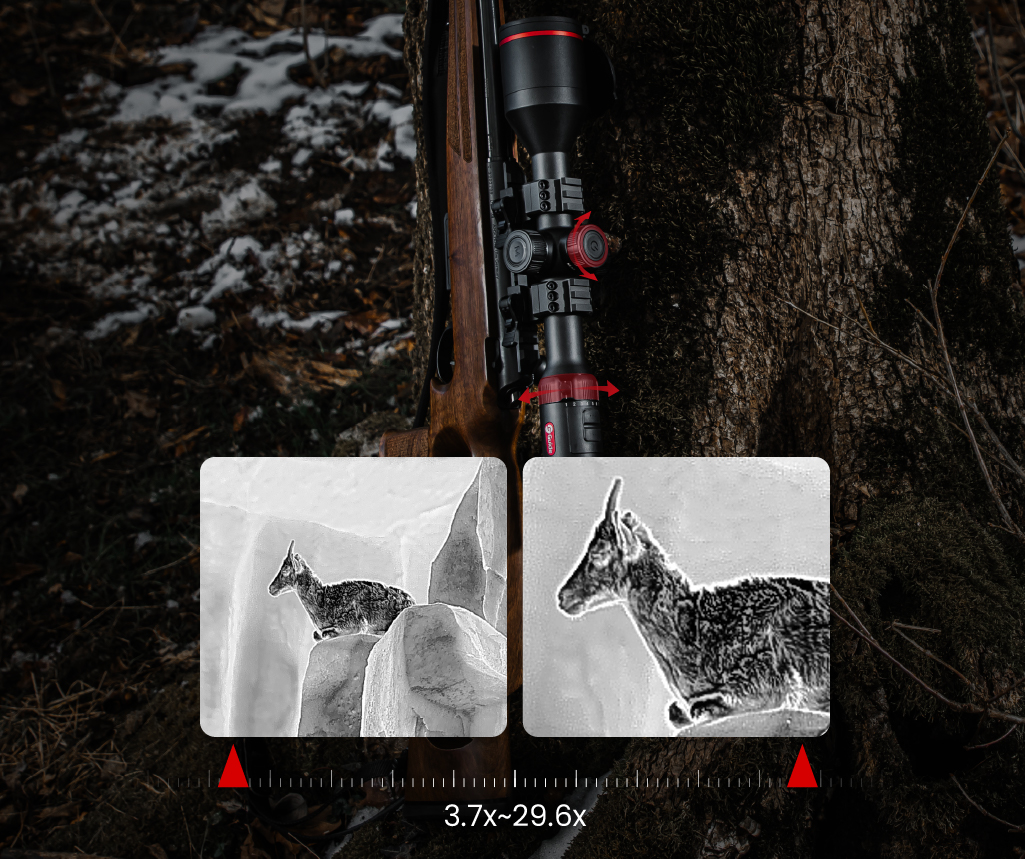

| Magnification | 3.7x~29.6x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 1.03'' AMOLED 2560×2560 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 256GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External) | |||
| Operating time | 14 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 921/32.49 | |||
| Size (mm/in) | 421×89×80/16.57×3.50×3.15 | |||
| Standard | Device, Eye Mask, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, 18650 Battery | |||
