TR620

Thermal Imaging Scope

TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series offers sharp, detailed images with 640 × 512 IR resolution while retaining accuracy. TR thermal scope also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.

640×512IR resolution

25mm F1.0Focal length

17.5°×14.0°Field of view

1024×768AMOLED display

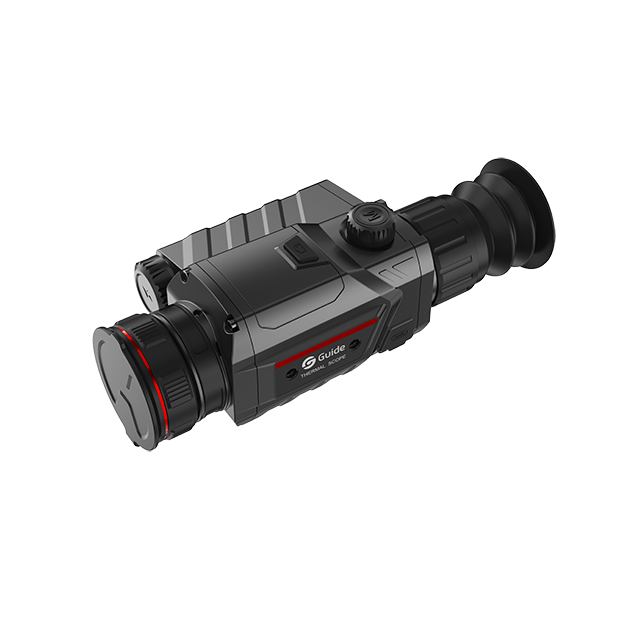

  • 25mm(1)-595.png

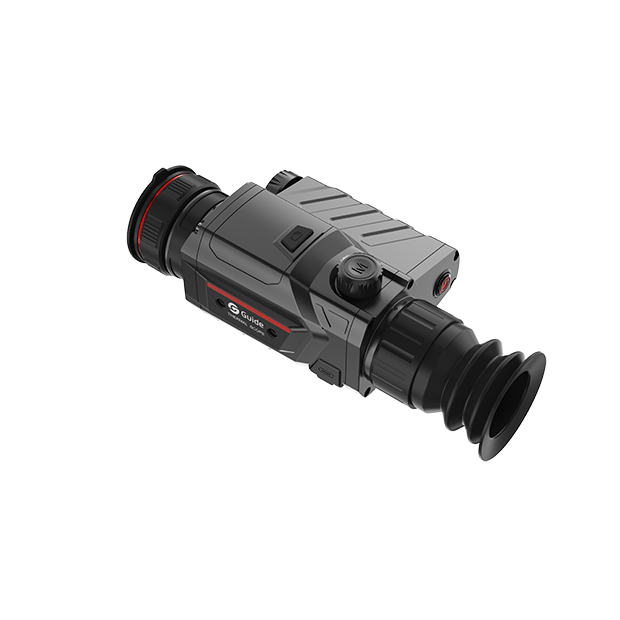

  • 25mm(2)-242.png

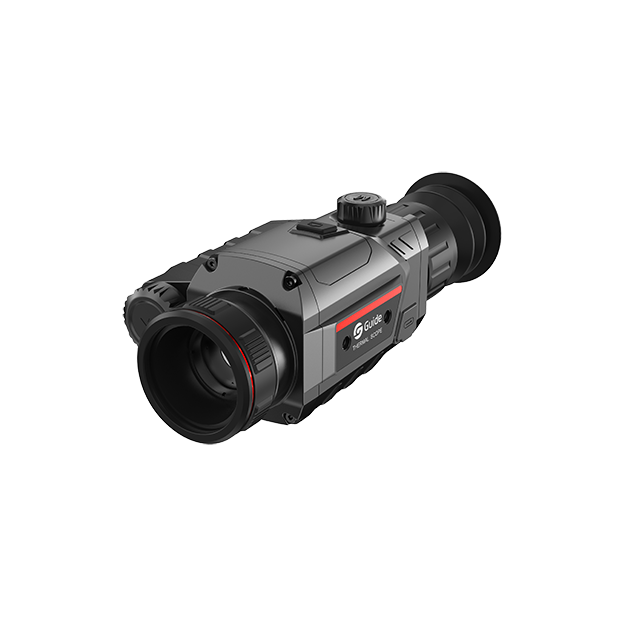

  • 25mm(3)-394.png

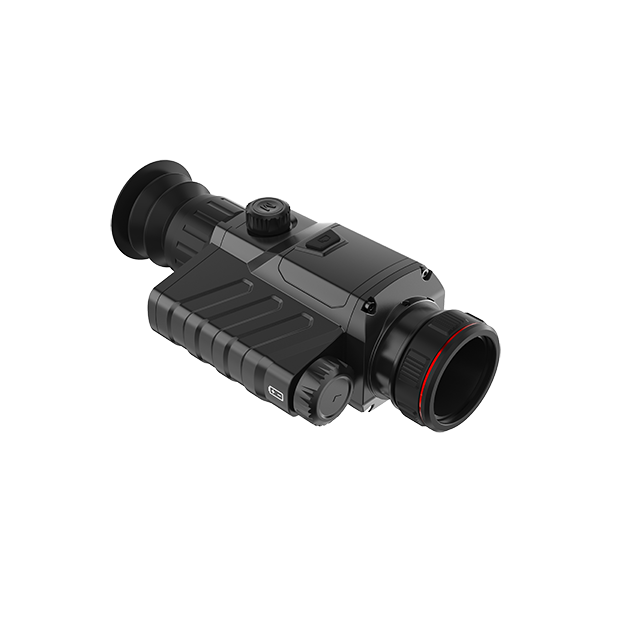

  • 25mm(4)-438.png

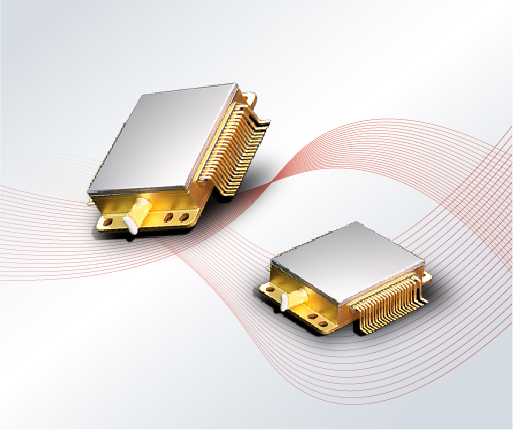

  • High Definition Detector

    TR Series uses high-quality 12µm thermal imaging detectors with 640×512 resolution and 20mK NETD to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.

    • 官网产品详情页卖点图512X429-02.jpg

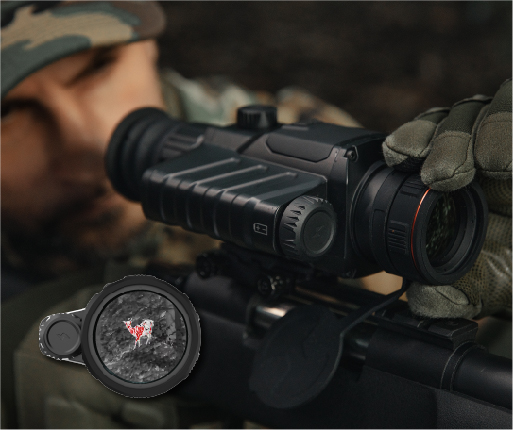

  • Full-color HD AMOLED Display

    The full-color 0.39-inch HD AMOLED display with 1024×768 pixels delivers sharp, richly contrasted, and vivid images that capture every moment in perfect detail.

    • 官网产品详情页卖点图512X429-03.jpg

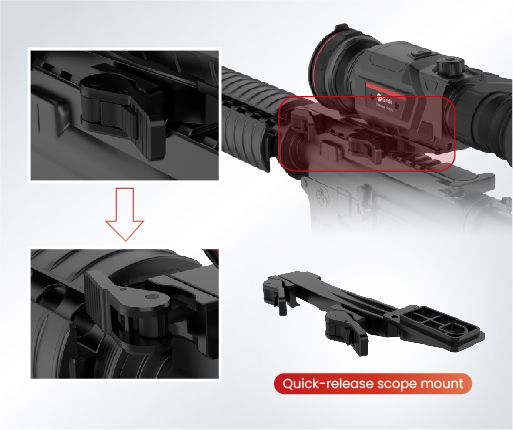

  • Quick-release scope mount for tool-free mounting

    Simply mount the device onto the quick-release scope mount, then tighten the locking lever, and the TR Series can be easily and securely mounted without any other tools.

    • 官网产品详情页卖点图512X429-04.jpg

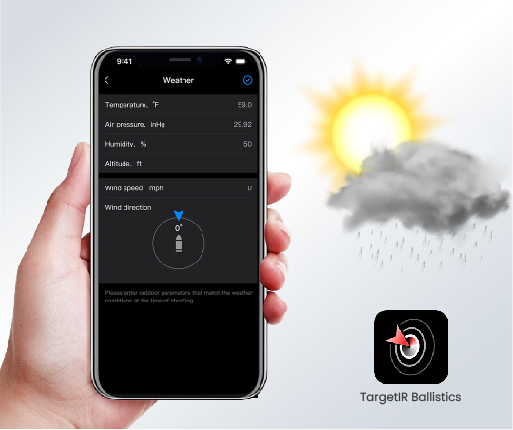

  • Ballistic Calculation

    Connect the device to TargetIR Ballistics APP (Android or iOS) to set bullet and weather parameters, then transmit the data to the device for ballistic calculation, and achieve high-precision shooting easily.

    • 官网产品详情页卖点图512X429-05.jpg

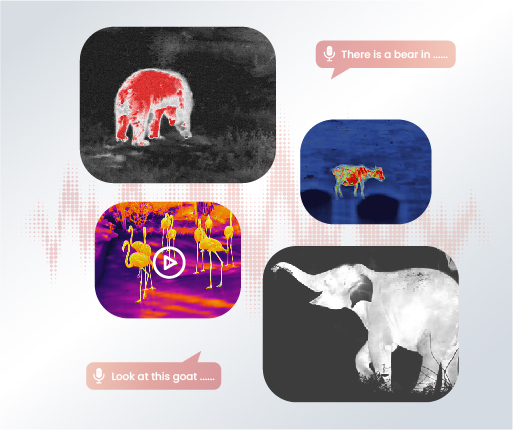

  • Capturing photos and videos with audio

    The photo and video function allow users to capture and share wonderful moments anytime, and integrates a built-in microphone for recording sound.

    • 官网产品详情页卖点图512X429-06.jpg

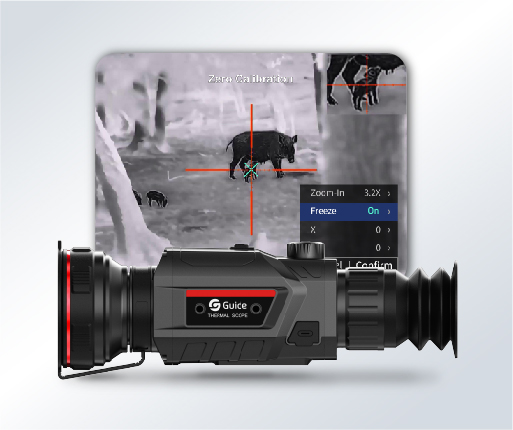

  • One-touch Freeze

    Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.

    • 官网产品详情页卖点图512X429-10.jpg

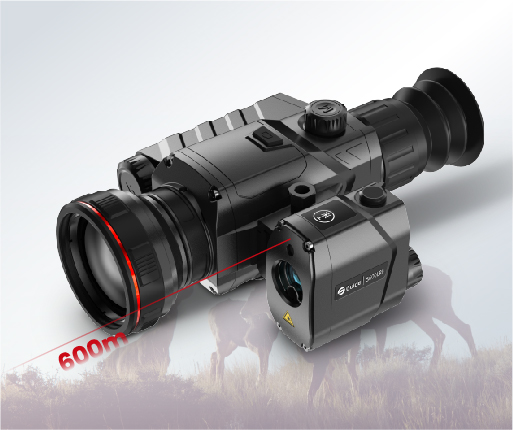

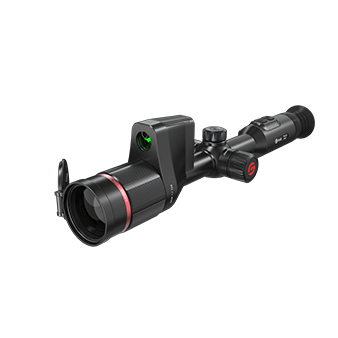

  • External Laser Range Finder

    With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.

    • 官网产品详情页卖点图512X429-08.jpg

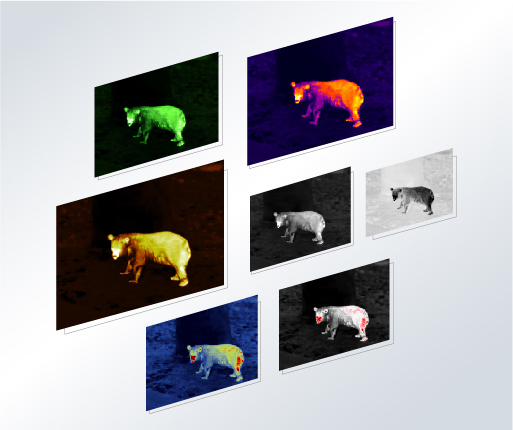

  • Seven Color Palettes

    The 7 color palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, Blue Hot and Sepia help increase chances for recognition and identification.

    • 官网产品详情页卖点图512X429-12.jpg

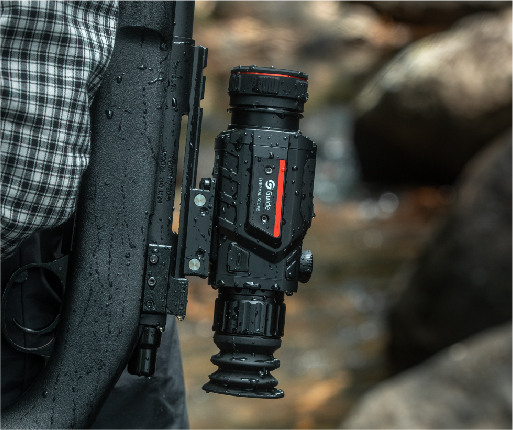

  • IP67 Protection Rating

    With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.

    • 官网产品详情页卖点图512X429-13.jpg

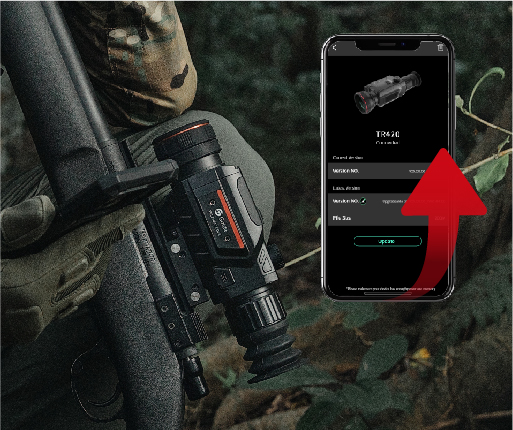

  • OTA Upgrade

    Support device firmware updates by connecting TargetIR for high efficiency.

    • 官网产品详情页卖点图512X429-09.jpg

TRSeriespc.jpg TRSeriesph.jpg

Media Gallery

  • 1989-189.png

  • 3240.png

  • TR8-瞄准_副本.jpg

Technical Parameters

Model

TR620

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50 Hz
Lens
Objective lens 25mm, F1.0
Field of view 17.5°×14.0°
FOV m@100m 31×25
Magnification 1.5x~12.0x
Detection range 1300m/1400yd
Display
Display type 0.39'' AMOLED 1024×768
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48 mm; Diopter ± 4; Zoom: 14x
Hardware
WIFI 2.4G
Interface USB Type-C
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type Single, replaceable 18650 battery
Operating time 8 hours
Environmental
Operating temp. -30°C to 50°C / -22°F to +122°F
Shock 800G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP67
Physical
Weight (g/oz) 578/20.39
Size (mm/in) 201×89×66/7.91×3.50×2.60
Standard Device, Quick-release scope mount, Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, Quick start guide, Warranty card
Optional 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder
