N225

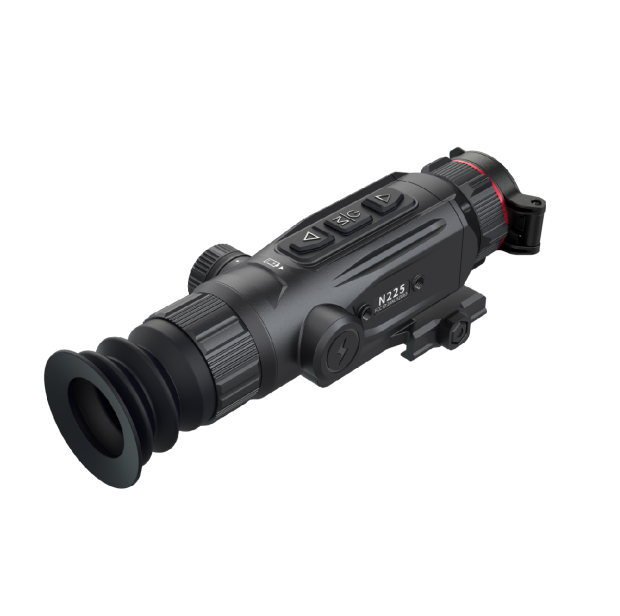

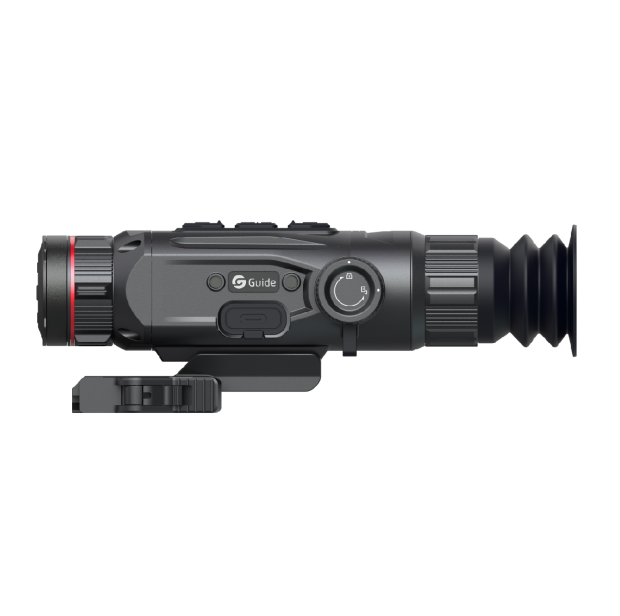

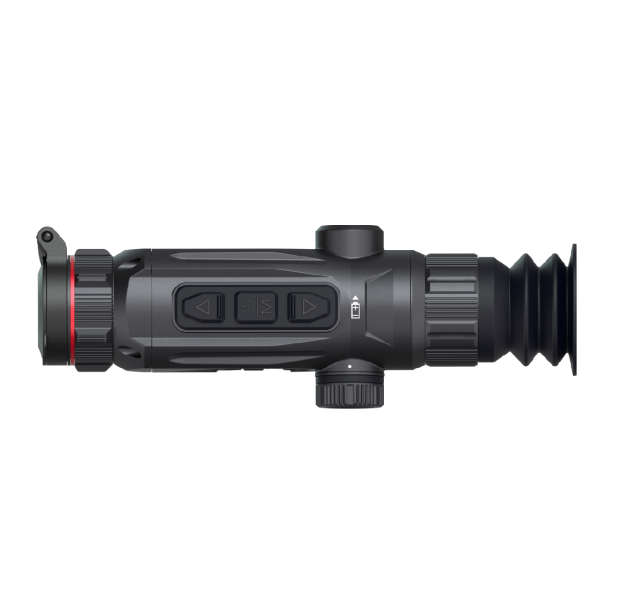

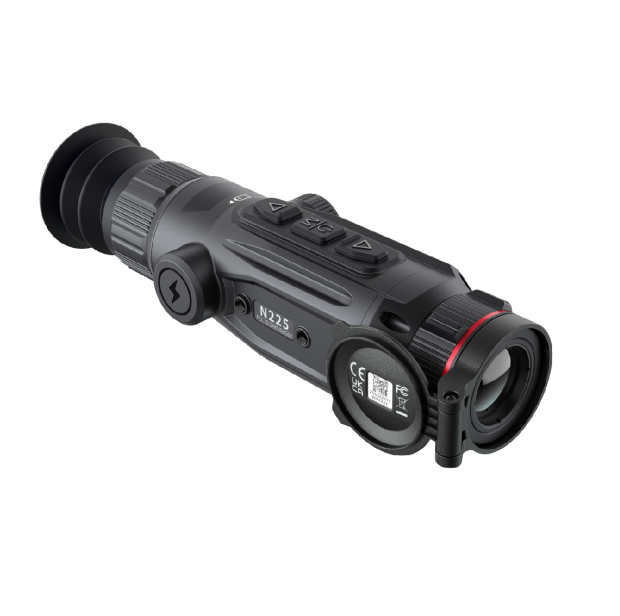

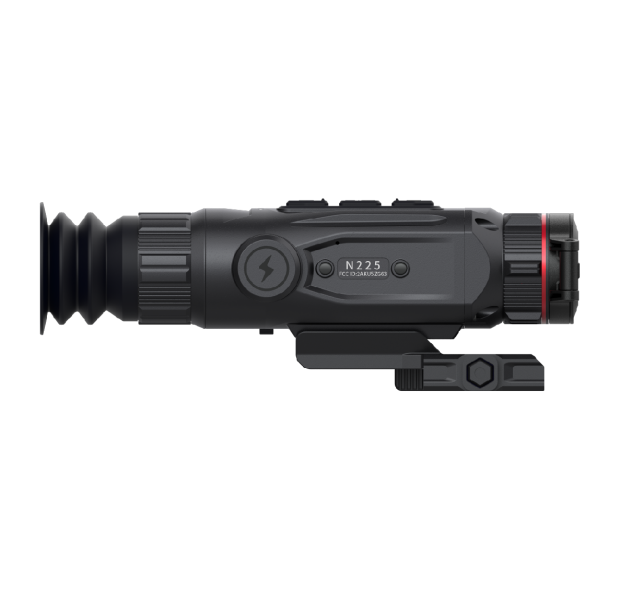

Thermal Imaging Scope
The Nova Series thermal imaging scope is tailored for hunters seeking high performance and portability. Featuring Guide’s latest AI-powered Hyper Light algorithm, it delivers razor-sharp clarity for every detail in the dark. The compact magnesium alloy housing makes it lightweight yet durable. Equipped with standard replaceable 18500 batteries and ballistic calculation algorithm, it ensures you a successful hunting experience.
256×192@12μmIR Resolution
25mKNETD
0.39'' 1024×768AMOLED Display
25mm, F1.0Focal length
ADD TO COMPARE
-
500g lightweight Well-balanced
The compact, slender body design of NOVA Series weighs just over 500 grams, making it easy to carry and mount. Its refined design keeps the gear balanced for a steady, precise aim.
-
-

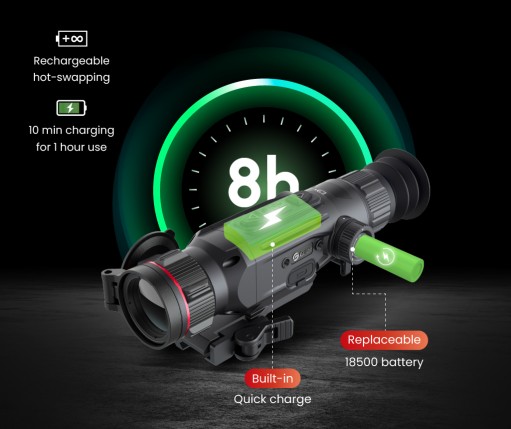

Quick charging All-day power
The NOVA Series provides 8 hours of continuous operation with a replaceable standard 18500 battery. It also supports 20W quick charging and hot swapping for uninterrupted use in the field.
-
-
Hyper-light algorithm Vivid imaging
Paired with the advanced Hyper-Light algorithm, 12μm detector, and lag-free AMOLED display, the NOVA Series detects finer temperature differences and enhances contrast for sharper, more detailed visuals.
-
-

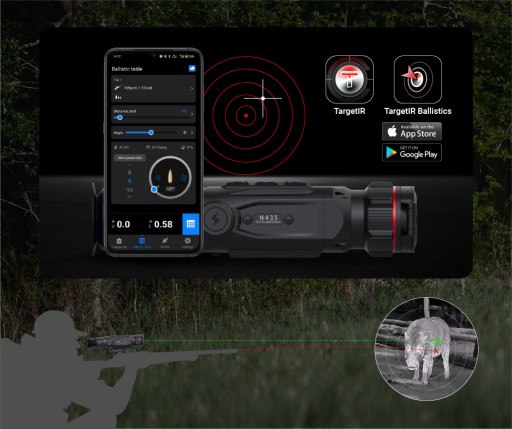

Ballistic calculator On-target precision
TargetIR Ballistics App is designed to help users achieve high-precision shooting, it provides an extensive, regularly updated database for common calibers and manufacturers, together with advanced ballistics algorithms to calculate accurate trajectories.
-
-
Smart recording Capture the moment
The NOVA Series automatically records a 15-second video (with sound) and captures five images upon recoil detection. It also supports continuous triggering and automatic playback.
-
-
Intelligent functions Prolonged service life
The NOVA Series integrates intelligent functions such as burn-in protection, defective pixel correction, and smart sleep mode, enabling users to keep the device in good condition during daily use.
-
-
Robust performance Built to endure
Sturdy yet comfortable, the housing features a metallic texture and a pleasant tactile feel. Rated IP67 and resistant to recoil up to 6000J, it ensures reliable performance and long-term durability.
-
Technical Parameters
Model
N225
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm; | |||
| Resolution | 256×192@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm F1.0 | |||
| Field of view | 7.0°×5.3° | |||
| FOV m@100m | 12×9 | |||
| Magnification | 3.6x~14.4x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Customized Battery(Built-in) and 18500 Battery(External) | |||
| Operating time | 8 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 506/17.85 | |||
| Size (mm/in) | 222.5×73×57.5 / 8.76×2.87×2.26 | |||
| Standard | Device, lens cover, eye mask, 18500 battery ×2, battery charger, USB-C to USB-C cable, quick-release scope mount, quick start guide, warranty card | |||
| Optional | Bluetooth laser rangefinder, wired laser rangefinder | |||
