TJ430

Handheld Thermal Imaging Monocular

Embark on nighttime explorations with the TJ Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.

NETD<25mKDetector

12 hrsBattery

Full-HD 1920x1080AMOLED display

IP67Encapsulation

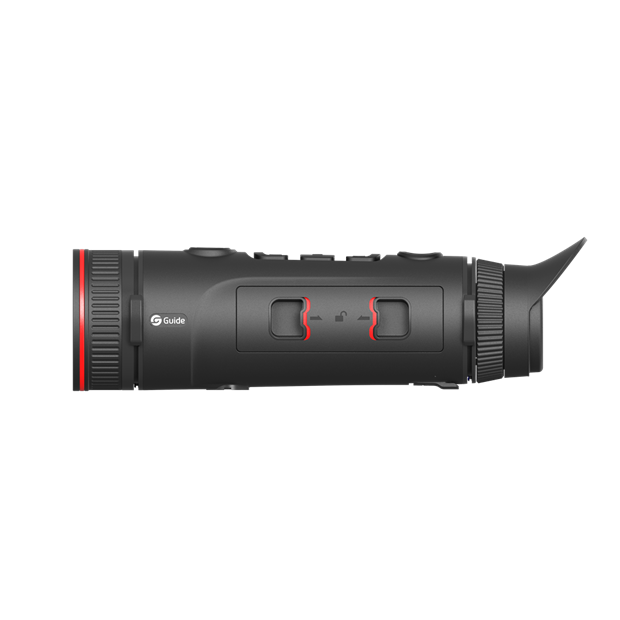

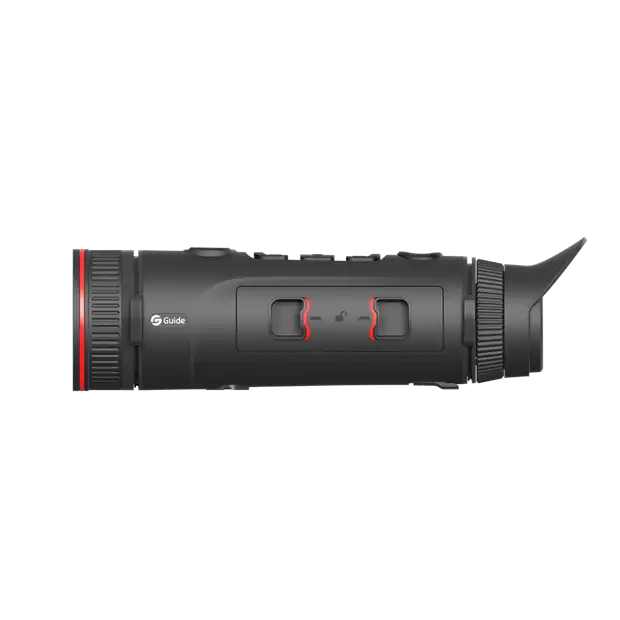

  • C25ceshitu_fuben-136.png

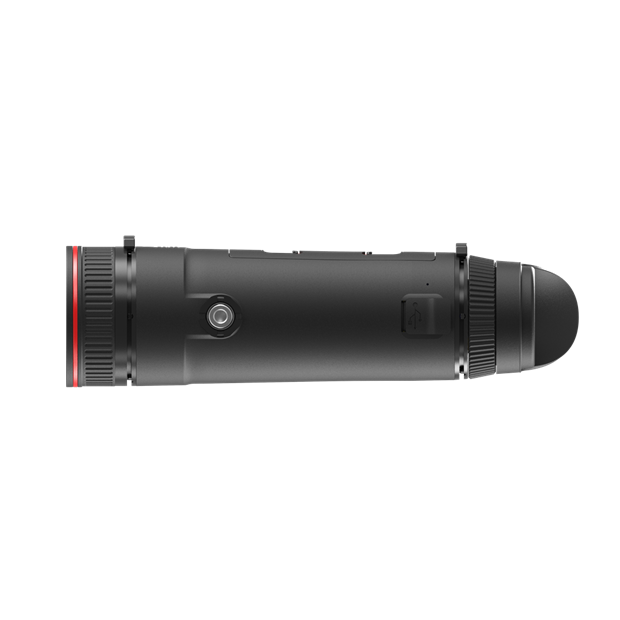

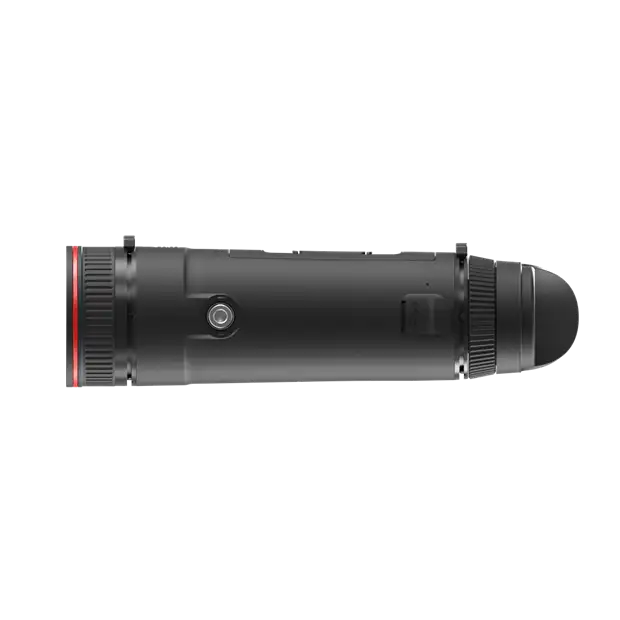

  • C25dishitu_fuben-300.png

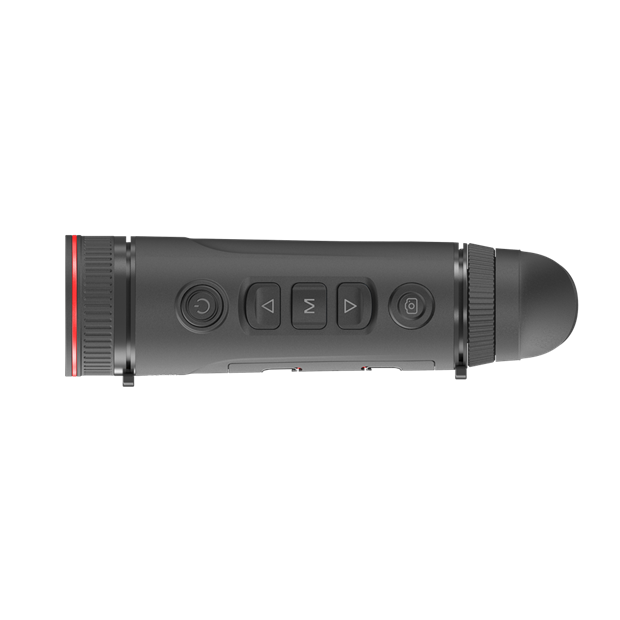

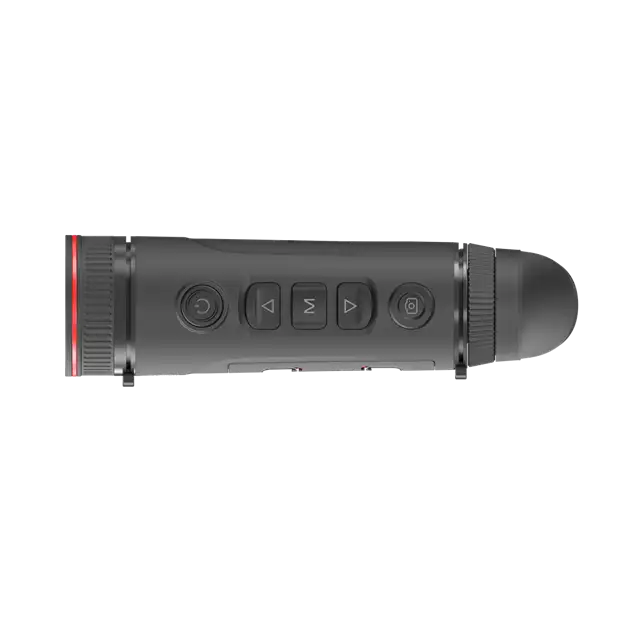

  • C25dingshitu_fuben-966.png

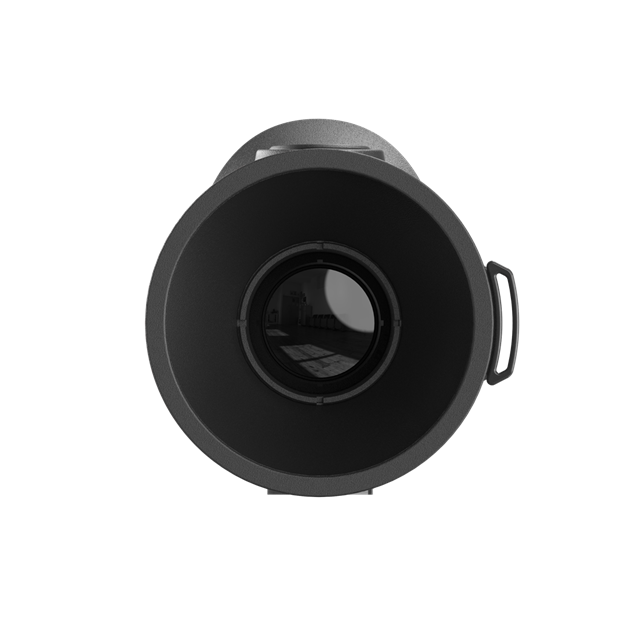

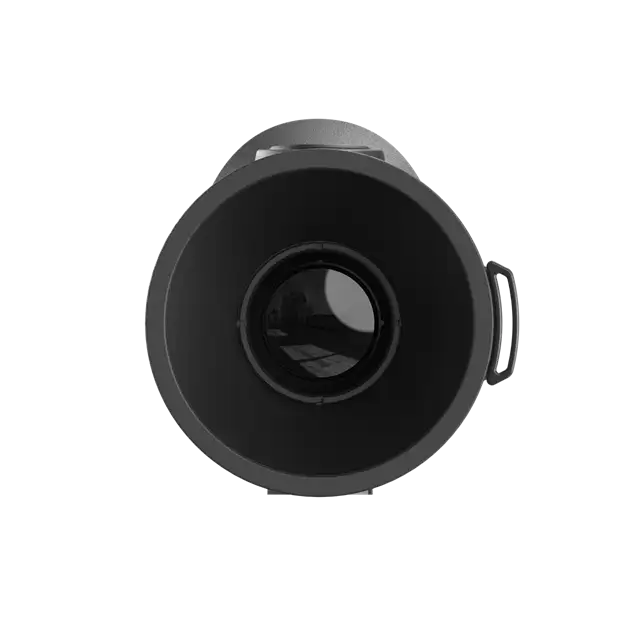

  • C25qianshitu_fuben-924.png

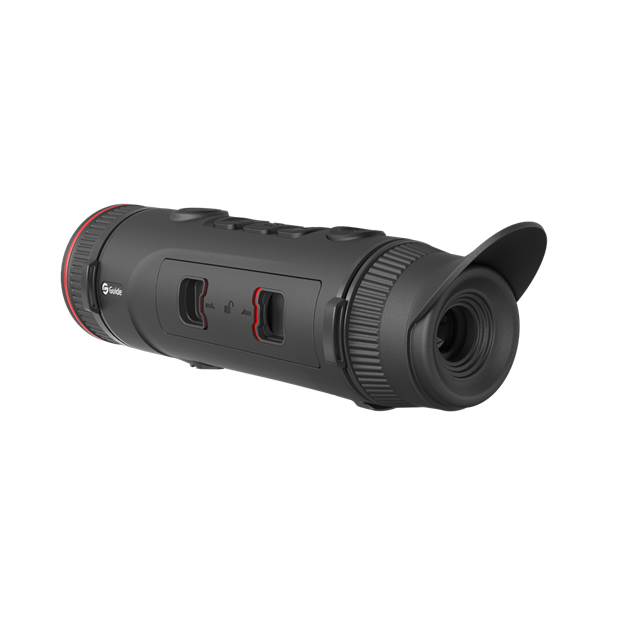

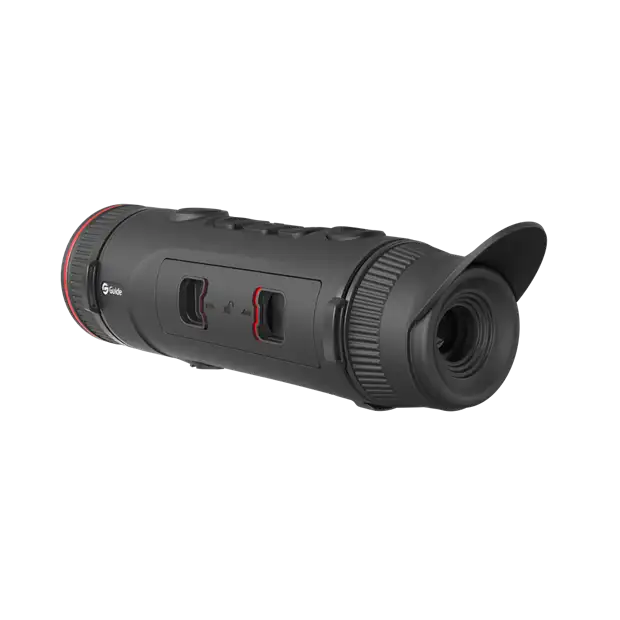

  • C25touhoushitu_fuben-273.png

banner_TJ .jpg

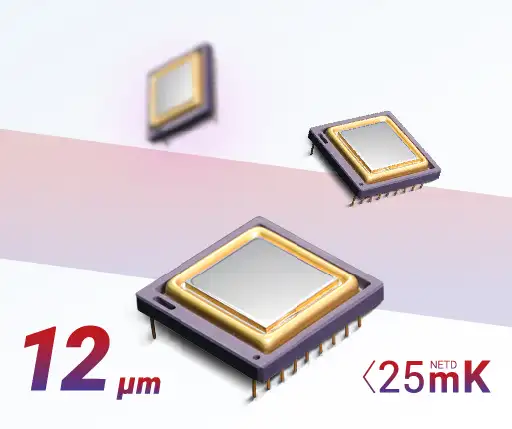

  • 12um high sensitivity infrared detector

    By utilizing a highly sensitive lR detector with a NETD of 25mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.

    • TJ LRF-10.jpg

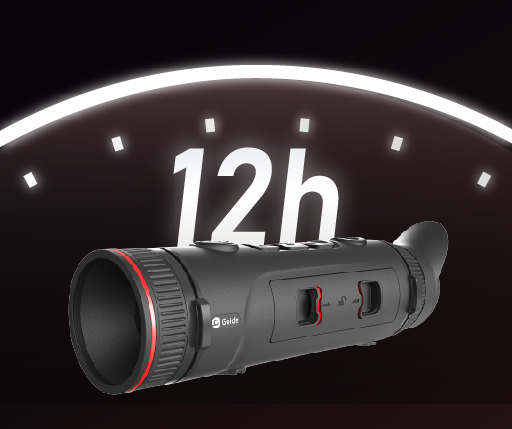

  • 12h operating time

    To support outdoor observation and hunting continuously, TJ Series provides a long 12-hour battery life at -20℃ to 50℃ (-4°F to 122°F). The standard 18650 batteries can be replaced in the dark, ensuring a delightful user experience without fear of power outages.

    • download-612.jpg

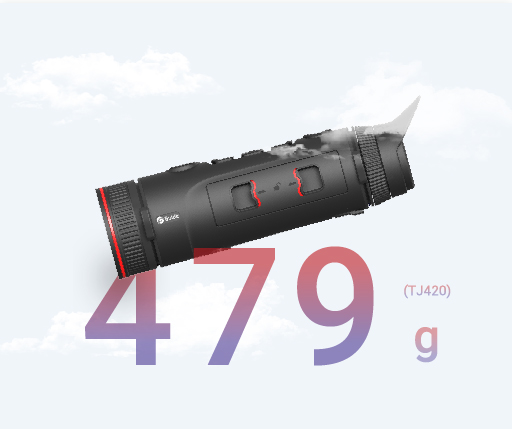

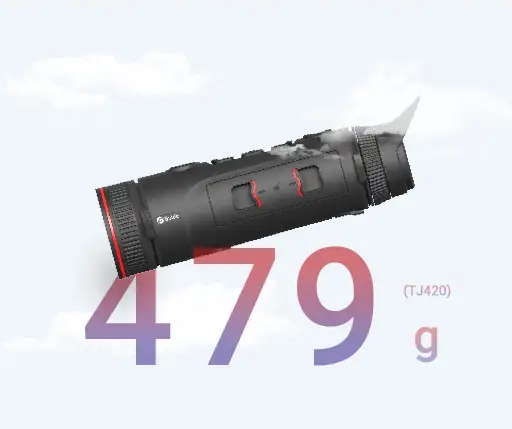

  • Lightweight

    The whole device weighs around 500g, which reduces the burden of equipment and is easy to carry and use outdoors. lts compact design and portable size together bring con-venience to your nighttime explorations.

    • download.jpg

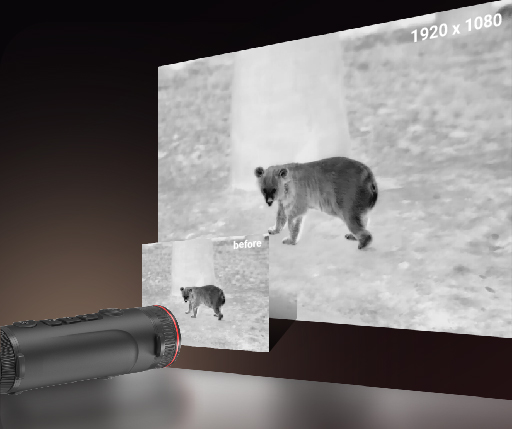

  • Full-HD 1920x1080 AMOLED display

    The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.

    • download.jpg

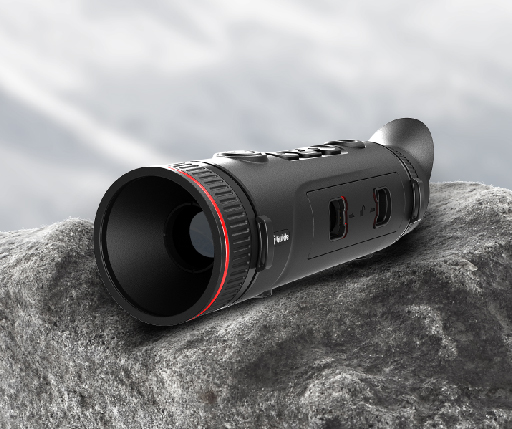

  • IP67 Waterproof rating

    Equipped with an IP67 waterproof rating, ensuring it can withstand the most challenging weather conditions. With this robust protection, you can confidently take your thermal imaging monocular on any adventure.

    • download.jpg

TJ Series pc.jpg TJ Series ph.jpg

MEDIA GALLERY

  • 已修01_副本.jpg

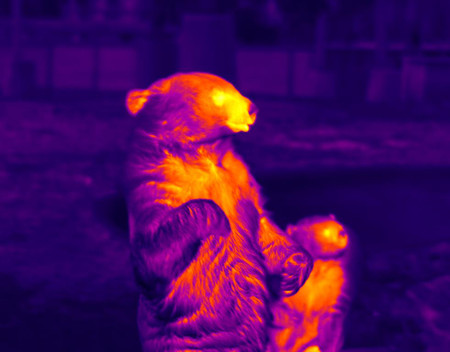

  • IRI_20230207_045224-1_副本.jpg

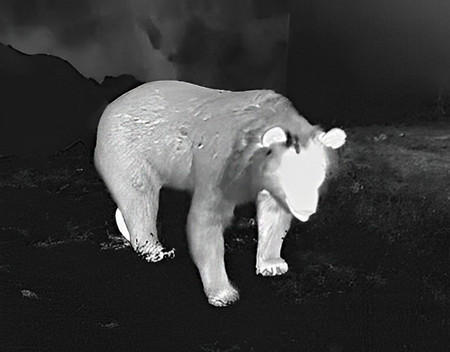

  • 熊P_副本.jpg

Technical Parameters

Model

TJ430

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 25mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 7.9°×5.9°
FOV m@100m 14×10
Magnification 4.25x~17.0x
Detection range 1800m/1950yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Compass, Gyroscope, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 12 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67
Physical
Weight (g/oz) 504/17.78
Size (mm/in) 243×66×66/9.57×2.60×2.60
Standard A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional Bluetooth remote control, 18650 battery
