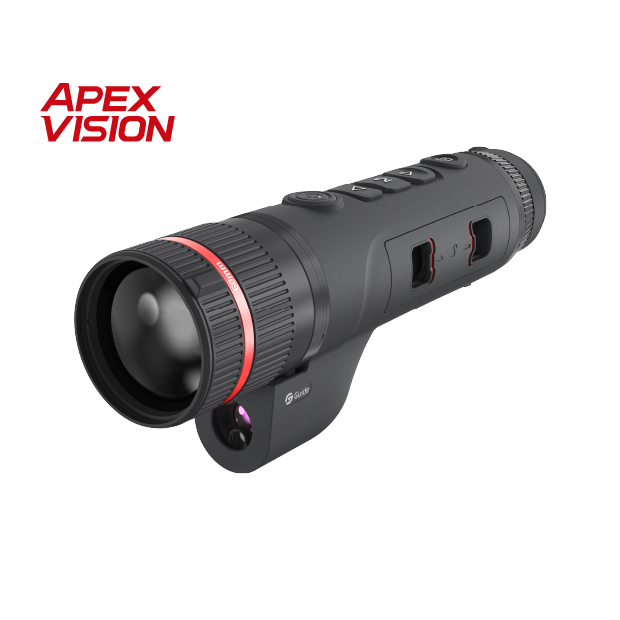

TJ660LZS

Handheld Thermal Imaging Monocular

TJ LRF Zoom Series adapts an integrated 20mm/60mm DFOV lens, allowing you to switch the focal length accordingly, whether it is a large-scale search or a long-distance target identification. The high-sensitivity 12μm infrared detector and full HD display enable clear night vision. Twohanded operation, laser ranging, video recording, and up to 10 hours of battery life make it an ideal partner for your nighttime adventures

15mKNETD

Full-HD 1920x1080AMOLED display

1000mLaser range

IP67Encapsulation

Product Manual

Download the APP

ADD TO COMPARE

Complete ApexVision S1 System Architecture

Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.

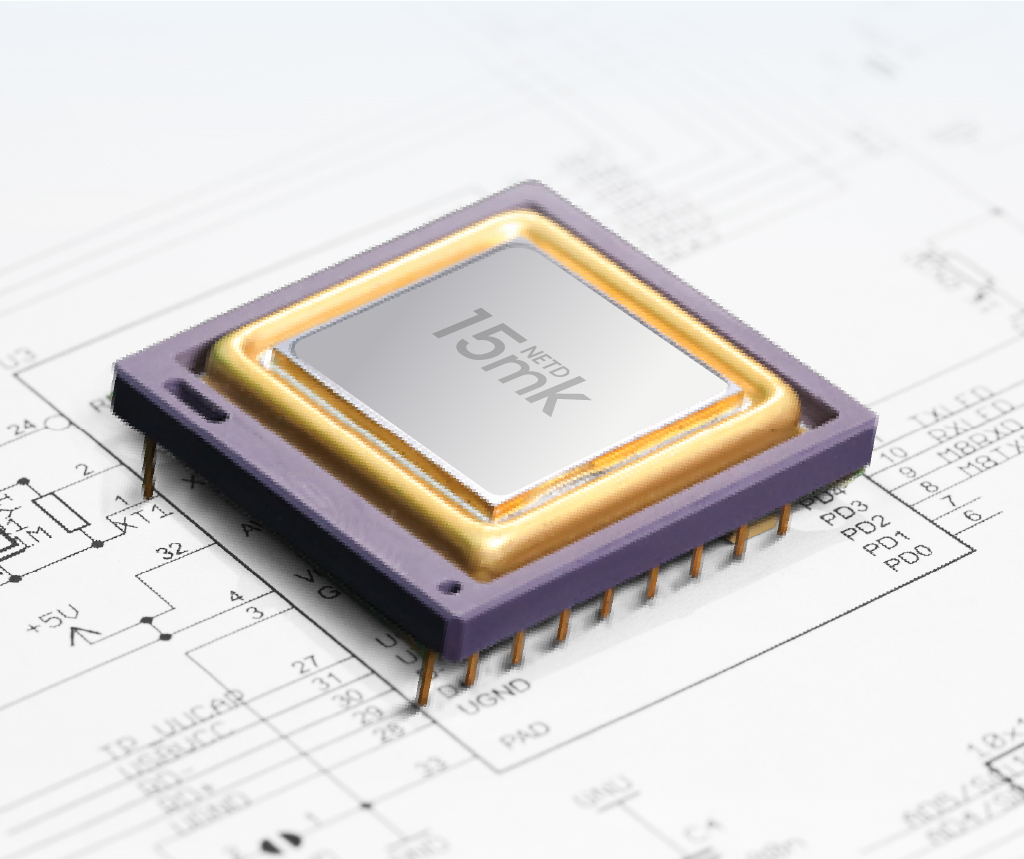

12μm IR detector, NETD down to 15mK

By utilizing a highly sensitive IR detector with a NETD down to 15mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
3x optical zoom, detection distance up to 3100m

TJ LRF Zoom Series adapts a 20mm~60mm dual FOV lens, which allows for easily changing the focal lengths and focus fine-tuning. It is a perfect combination of large-scale and long-distance observation, capable of detecting targets up to 3100m.
Easily changing the focal lengths

With the well-designed focus ring, TJ LRF Zoom Series allows users to smoothly switch the focal lengths from 20mm to 60mm within 1 second, and fine-tune the focus to get the perfect image of targets.
Ultra-large display

Optimal visual experiences
To present a better visual experience, hence improving the efficiency and comfort of outdoor exploration, TJ LRF Zoom has upgraded the display to provide a stunning visual effect like a 70-inch home theater at 2.5m distance.
1000m laser rangefinder

The built-in laser rangefinder provides a long detection range of up to 1000m, improving the capability to obtain the target distance and the long-distance perception.
Intelligent sleep mode

TJ LRF Zoom developed an intelligent function of automatically switching the sleep mode and wake up mode by recognizing the device’s posture, which will lead to lower power consumption and longer battery life.

Technical Parameters

Model

TJ660LZS

ADD TO COMPARE

Sensor
Core Technology Item	Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×512@12μm
NETD	15mK
Frame rate	50Hz

Lens
Objective lens	20mm, F0.9; 60mm, F1.1
Field of view	21.7×16.4; 7.3×5.5
FOV m@100m	38×29; 13×10
Magnification	1.2x~9.6x; 3.5x~28x
Detection range	1000m/1090yd; 3100m/3350yd
Focus	Manual

Display
Display type	0.39'' AMOLED 1920×1080
Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece	Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x

Hardware
Laser rangefinder	1000m/1090yd
WIFI	2.4G, 5G
Interface	USB-C (Power supply/USB2.0)
Others	Microphone, Compass, Gyroscope, Bluetooth

System
Recording function	Photo/Video (Audio recording included)
Memory capacity	128GB

Power
Battery type	2 Replaceable 18650 Batteries
Operating time	10 hours

Environmental
Operating temp.	-20°C to 50°C / -4°F to +122°F
Encapsulation	IP67

Physical
Weight (g/oz)	764/26.95
Size (mm/in)	259×97×69/10.20×3.82×2.72
Standard	Device, Lint-Free Cloth, Carry Bag, Accessory Bag, Hand Strap, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional	Bluetooth Remote Control, 18650 Battery
