TJ630L

Handheld Thermal Imaging Monocular

Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.

NETD 20mKDetector

Full-HD 1920x1080AMOLED display

1000mLaser range

IP67Encapsulation

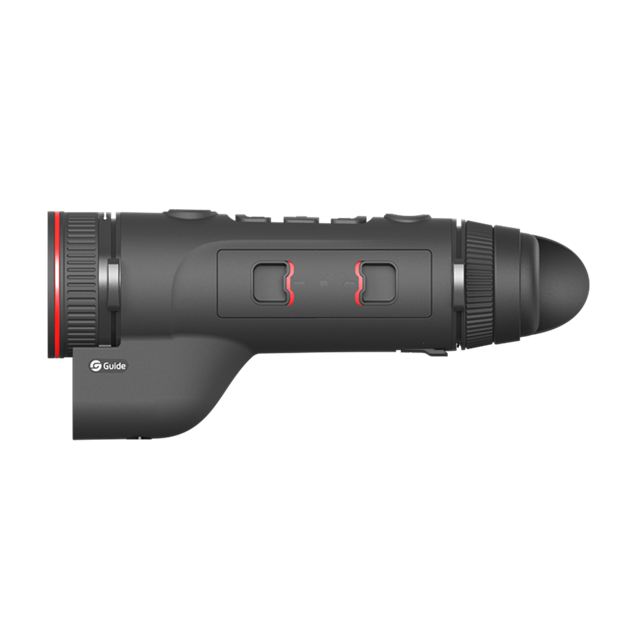

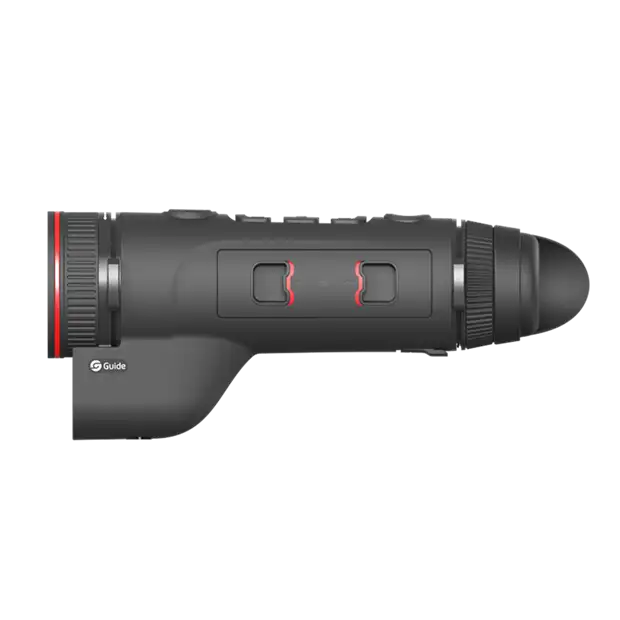

  • ZG28A.303.1_fuben-441.png

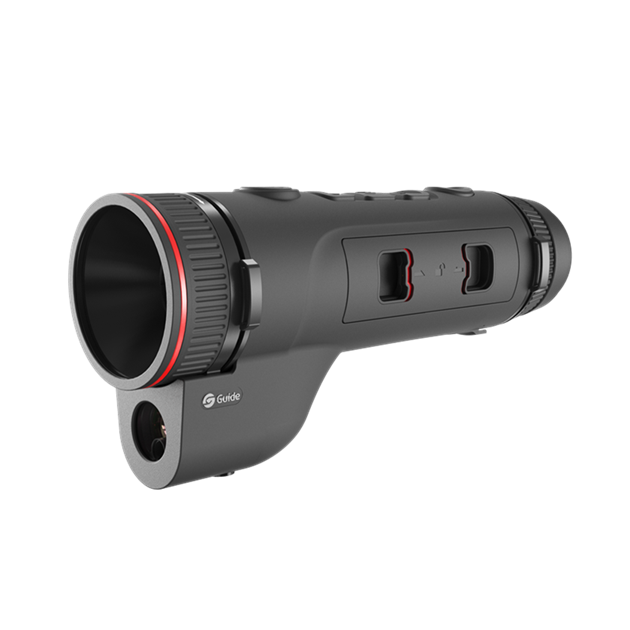

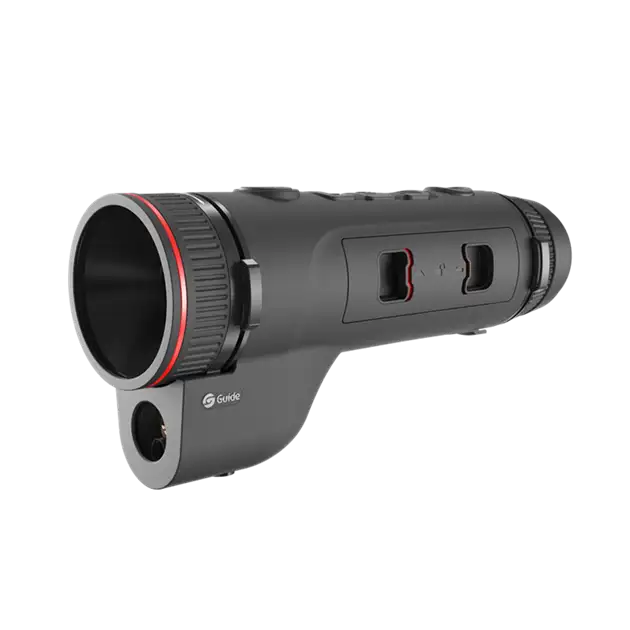

  • ZG28A.303.2_fuben-202.png

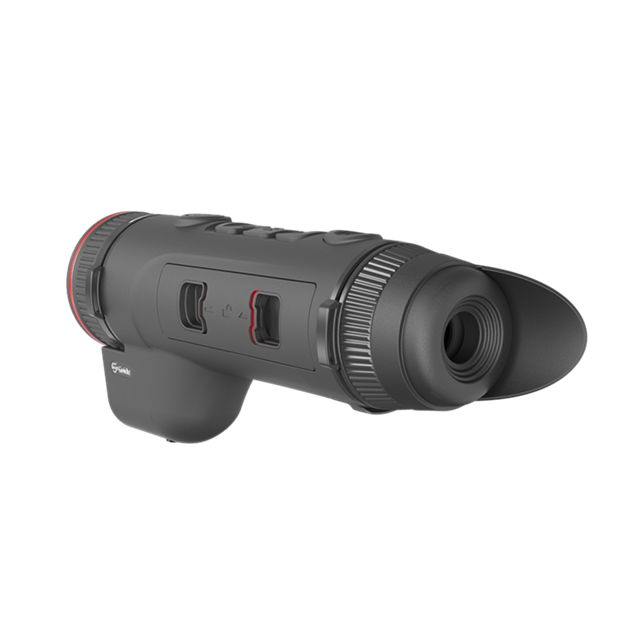

  • ZG28A.303.3_fuben-863.png

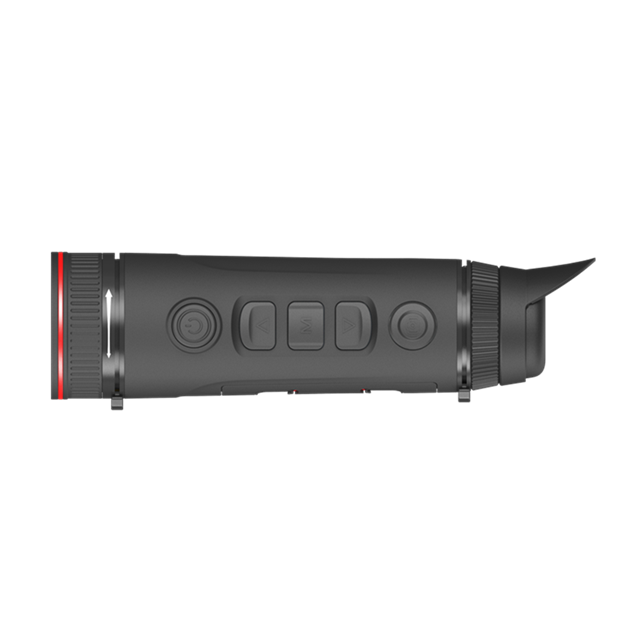

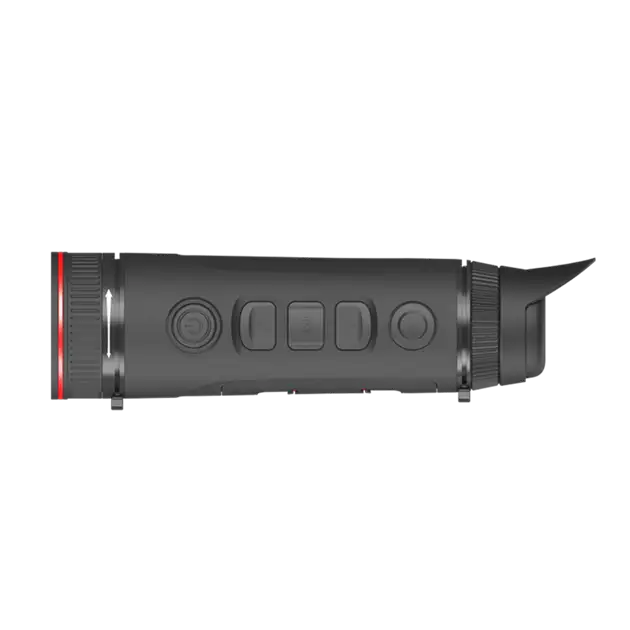

  • ZG28A.303.4_fuben-468.png

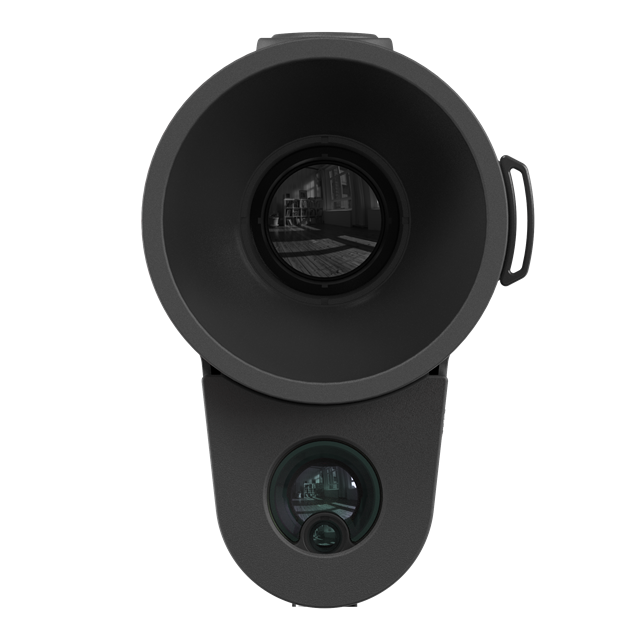

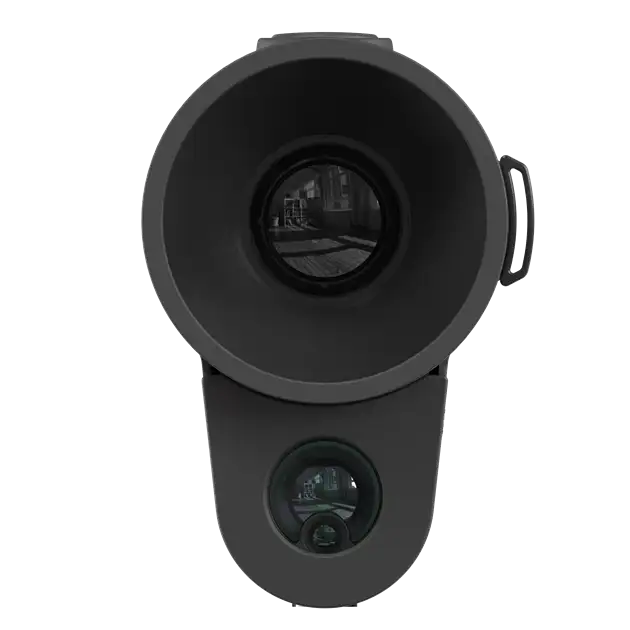

  • ZG28A.303.9_fuben-249.png

banner_TJ L.jpg
  • Welcome to the big screens

    TJ LRF Series - Handheld Thermal Imaging Monocular

    • TJLRF-09-537.jpg

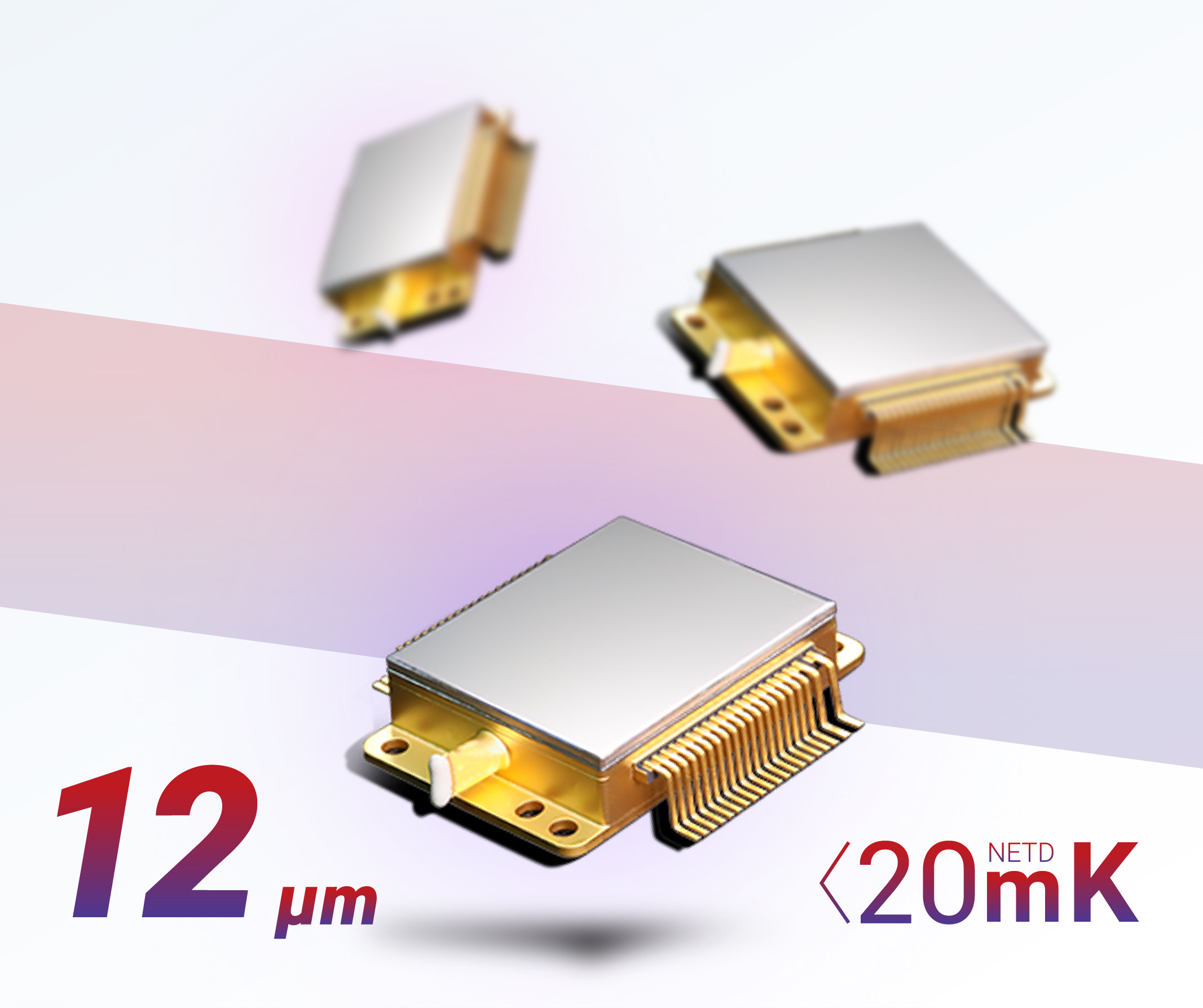

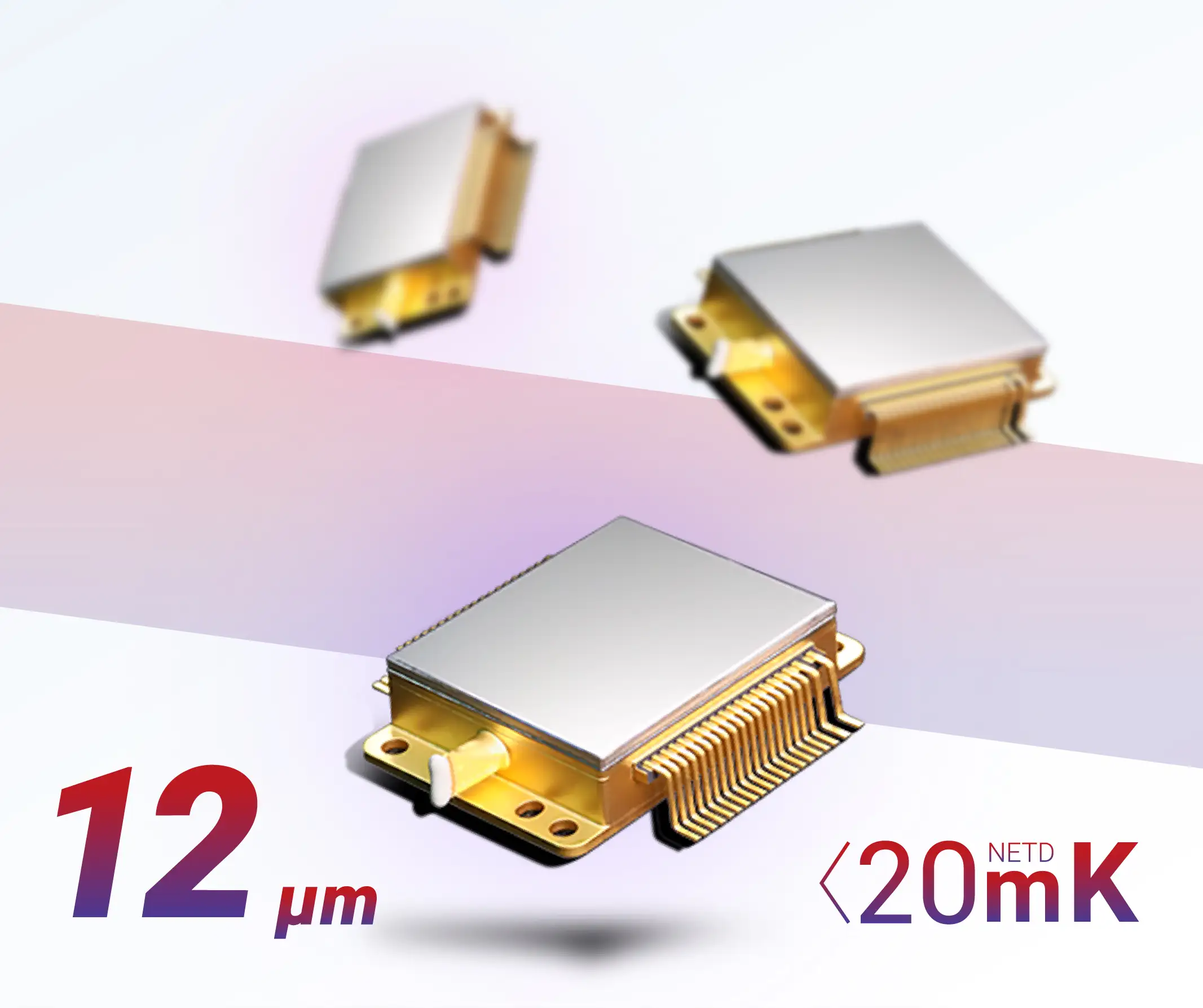

  • 12um high sensitivity infrared detector

    By utilizing a highly sensitive IR detector with a NETD of 20mK, even the slightest temperature differences, can be distinguished resulting in sharper and clearer imaging.

    • 20mK.jpg

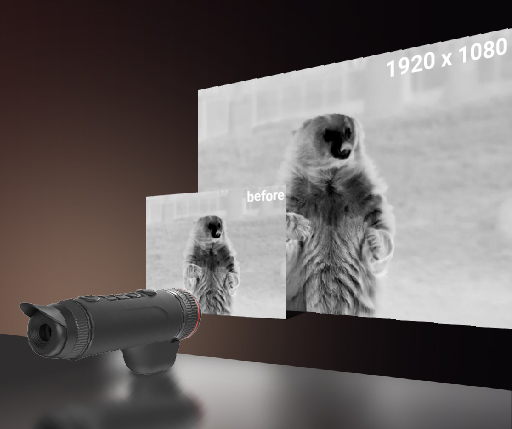

  • 1920 X 1080 AMOLED Display

    The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.

    • TJ LRF-11.jpg

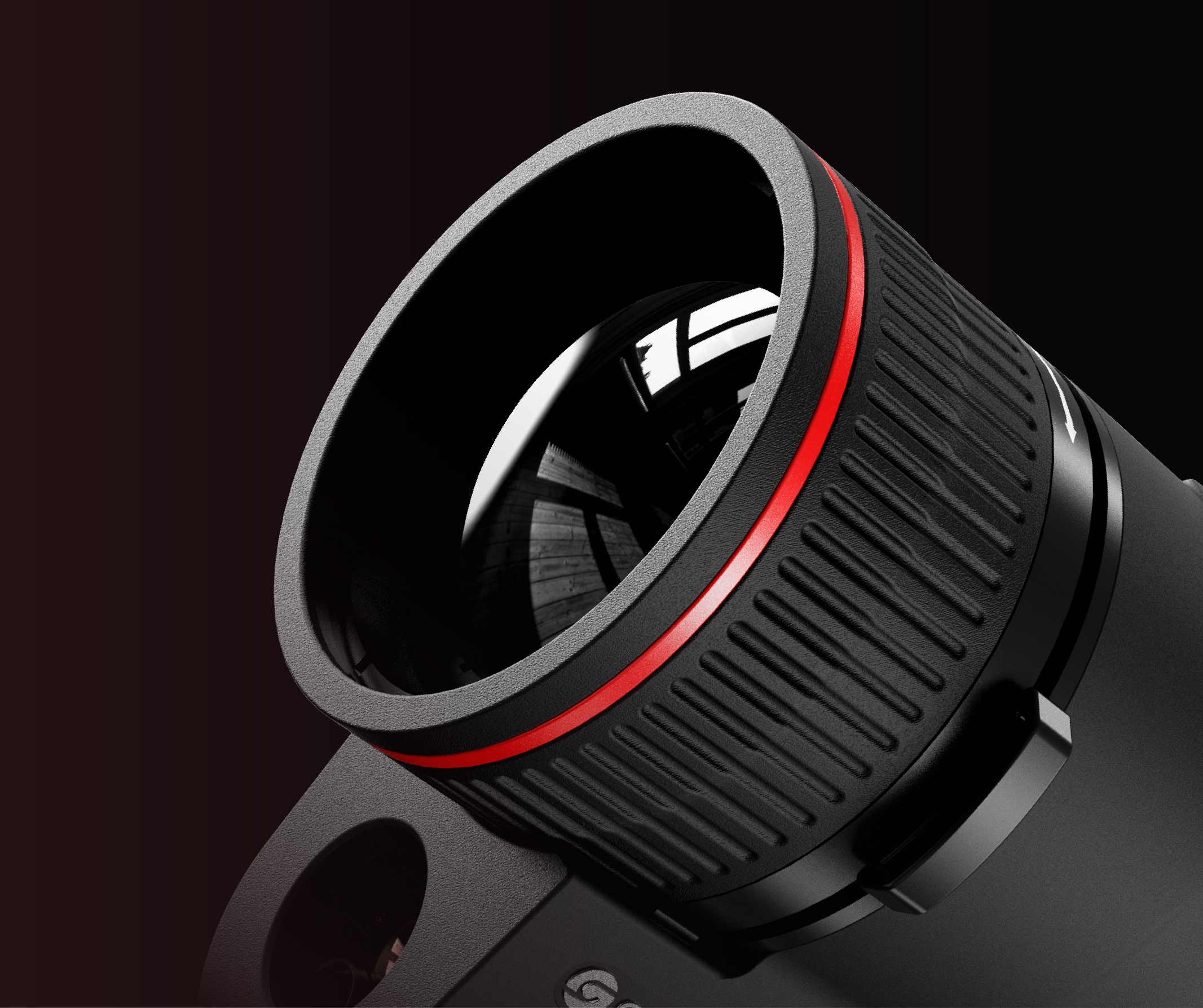

  • 25/35/50mm F1.0 focal length

    Multiple focal lengths give TJLRF Series stronger capabili-ties and more options in dif-ferent environments. The maximum 50mm F1.0 lens can clearly indicate targets within 2000m, which is convenient for observation and recording.

    • TJLRF-12-363.jpg

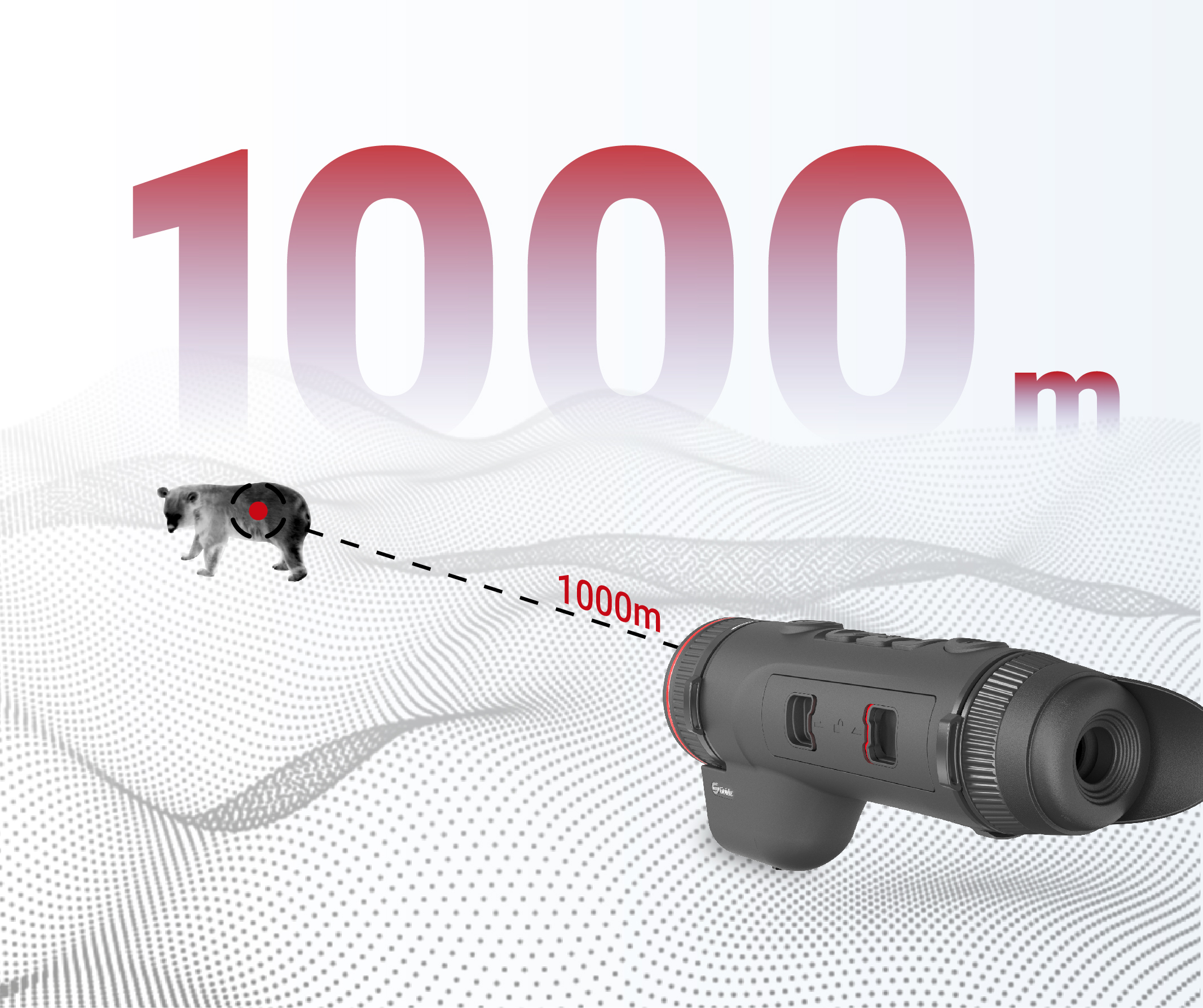

  • 1000m laser ranging

    The built-in laser rangefinder provides a long detection range up to 1000m, improving the capability to obtain the target distance and the long-distance perception.

    • TJLRF-13-193.jpg

TJ LRF Series pc.jpg TJ LRF Series ph.jpg

Technical Parameters

Model

TJ630L

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×10.0°
FOV m@100m 22×17
Magnification 2.66x~21.28x
Detection range 1800m/1950yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x
Hardware
Laser rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Compass, Gyroscope, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 10 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67
Physical
Weight (g/oz) 581/20.49
Size (mm/in) 234×97×66/9.21×3.82×2.60
Standard A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional Bluetooth remote control, 18650 battery
