TJ420L

Handheld Thermal Imaging Monocular

Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.

NETD<25mKDetector

Full-HD 1920x1080AMOLED display

1000mLaser range

IP67Encapsulation

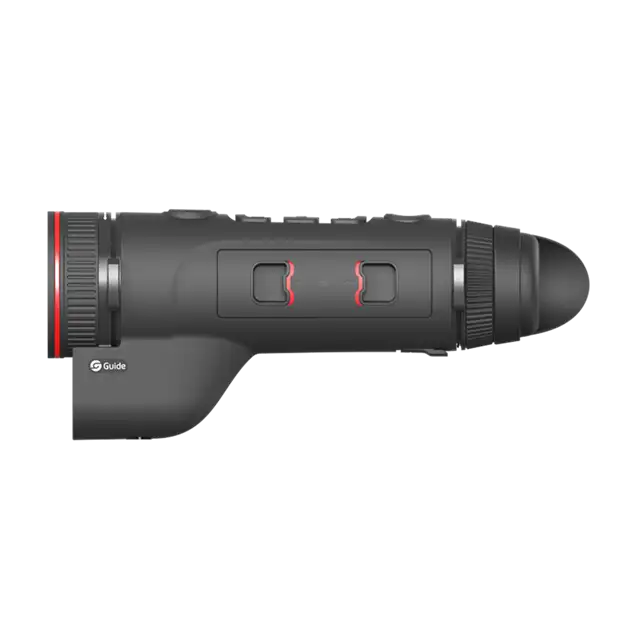

  • ZG28A.303.1_fuben-441.png

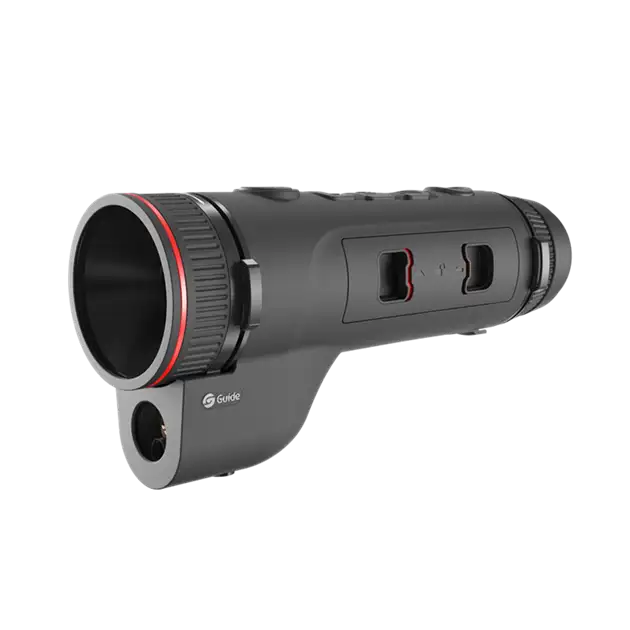

  • ZG28A.303.2_fuben-202.png

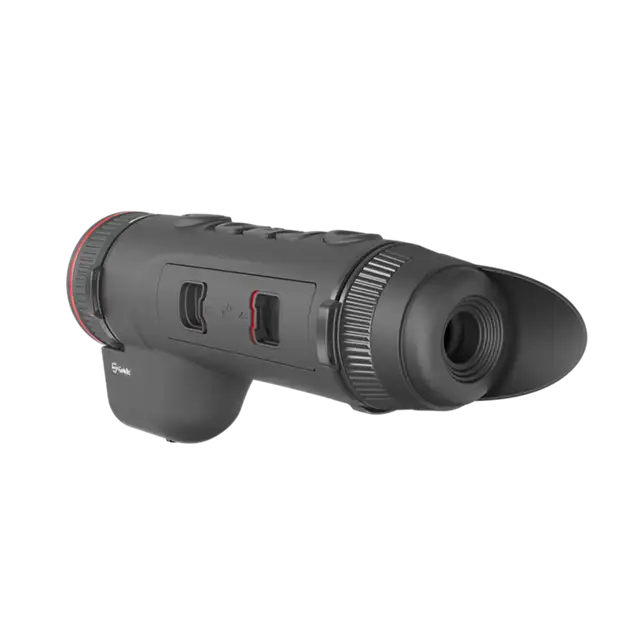

  • ZG28A.303.3_fuben-863.png

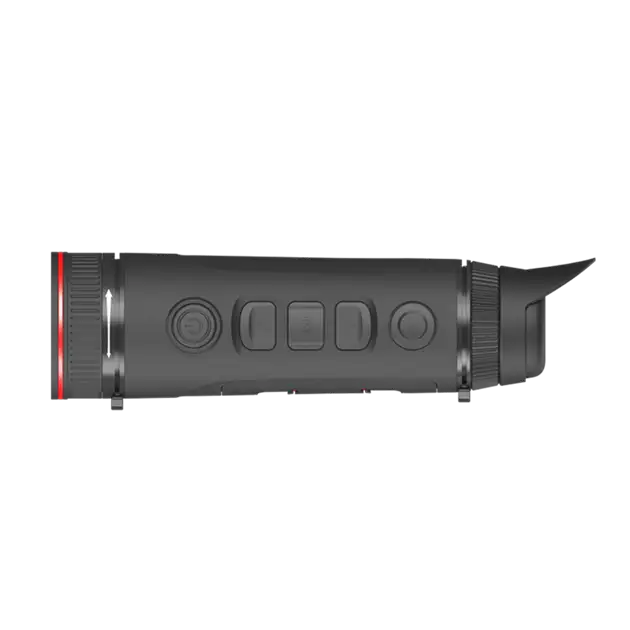

  • ZG28A.303.4_fuben-468.png

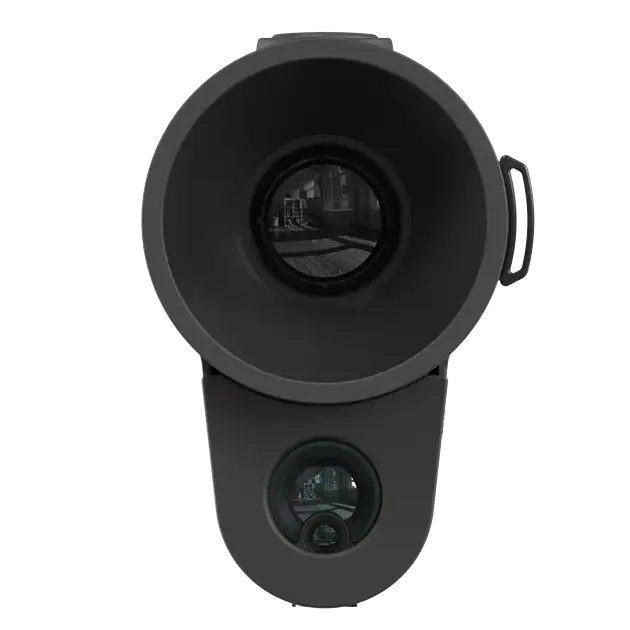

  • ZG28A.303.9_fuben-249.png

banner_TJ L.jpg
  • Welcome to the big screens

    TJ LRF Series - Handheld Thermal Imaging Monocular

    • TJLRF-09.jpg

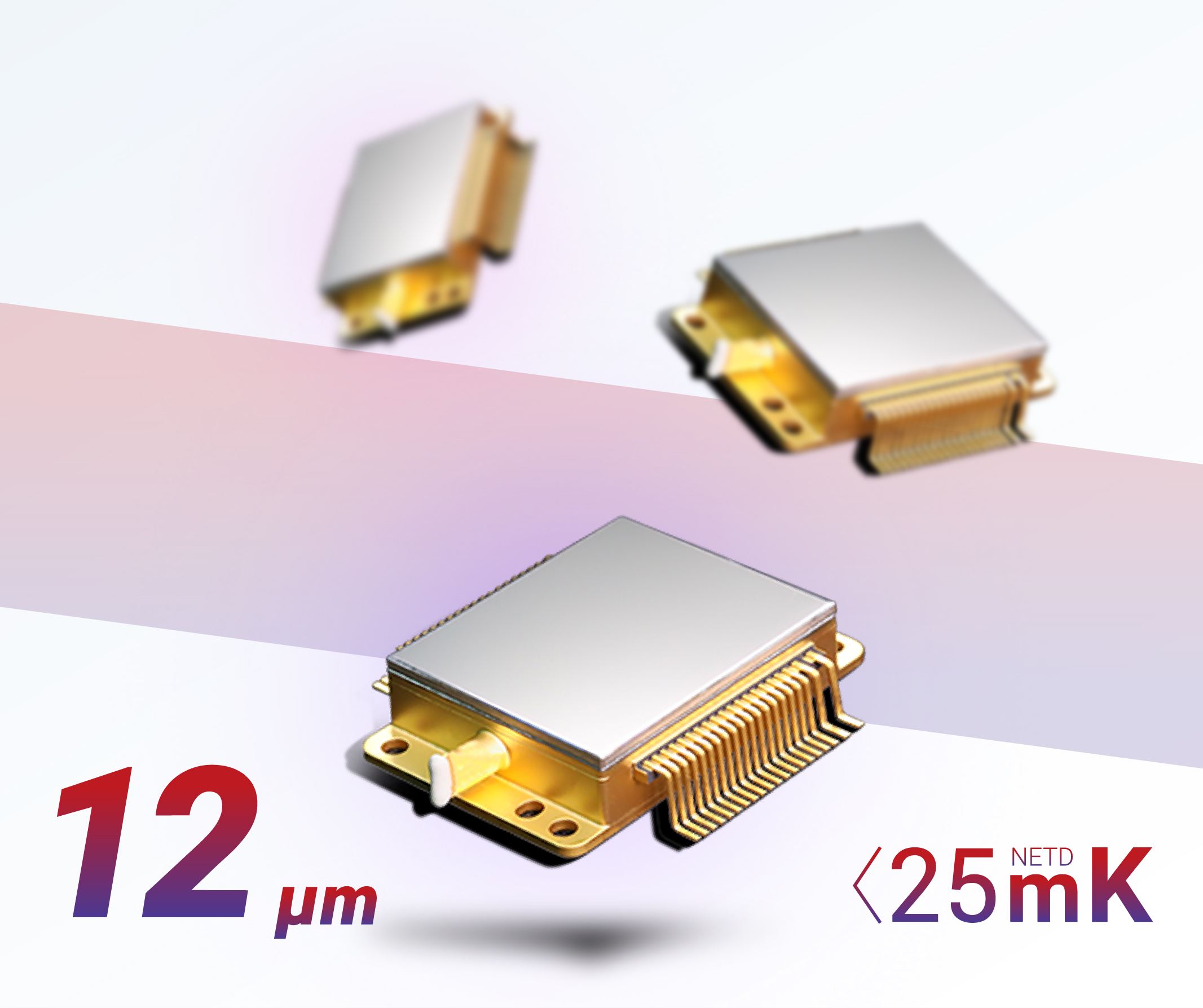

  • 12um high sensitivity infrared detector

    By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences, can be distinguished resulting in sharper and clearer imaging

    • TJLRF-10.jpg
  • 1920 X 1080 AMOLED Display

    The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.



    • TJ LRF-11.jpg

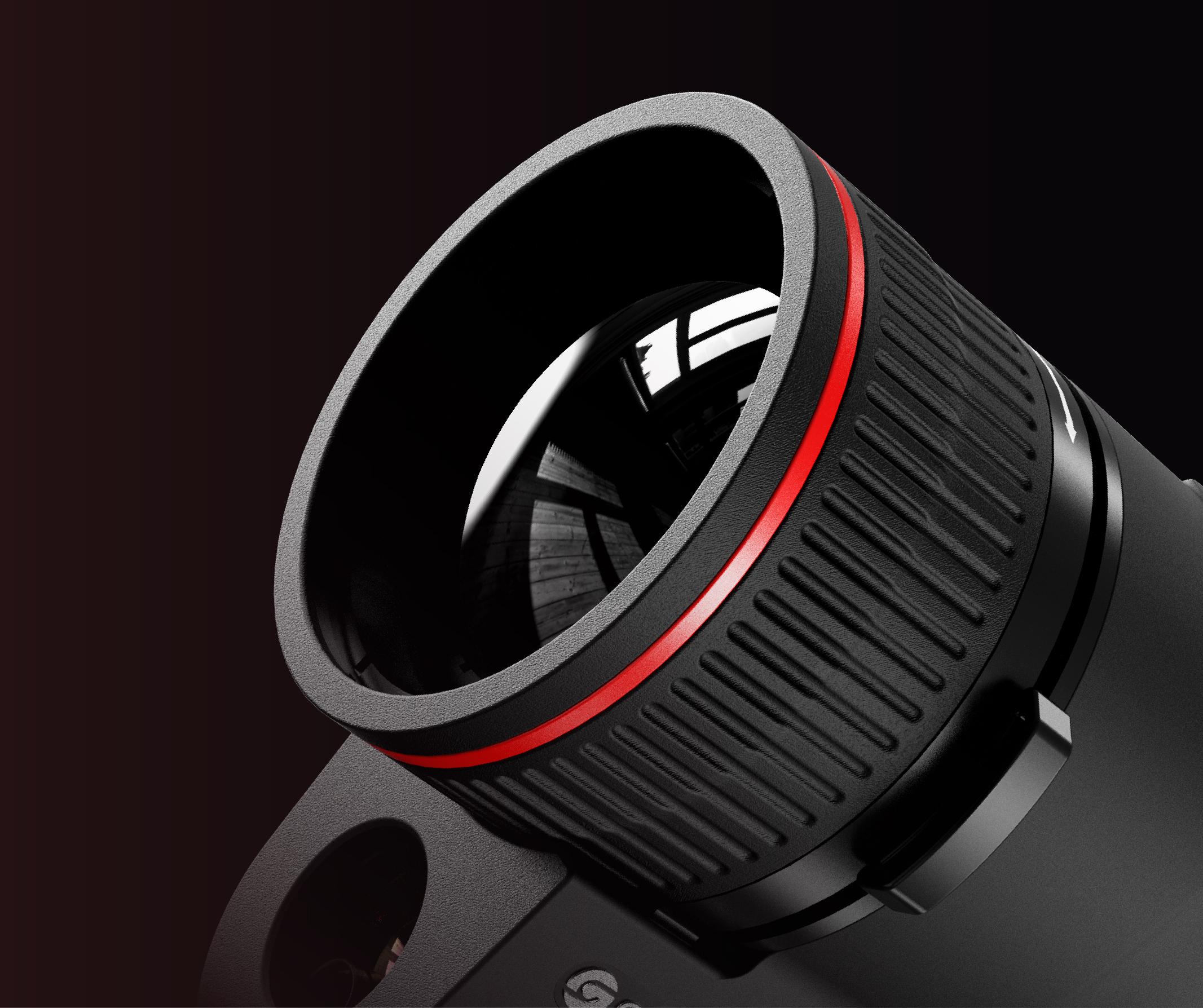

  • 25/35/50mm F1.0 focal length

    Multiple focal lengths give TJLRF Series stronger capabilities and more options in different environments. The maximum 50mm F1.0 lens can clearly indicate targets within 2000m, which is convenient for observation and recording.

    • TJLRF-12.jpg
  • 1000m laser ranging

    The built-in laser rangefinder provides a long detection range up to 1000m, improving the capability to obtain the target distance and the long-distance perception.



    • TJLRF-13.jpg

TJ LRF Series pc.jpg TJ LRF Series ph.jpg

Technical Parameters

Model

TJ420L

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 25mK
Frame rate 50Hz
Lens
Objective lens 25mm, F1.0
Field of view 11.0°×8.2°
FOV m@100m 19×14
Magnification 3.04x~12.16x
Detection range 1300m/1400yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x
Hardware
Laser rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Compass, Gyroscope, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 12 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67
Physical
Weight (g/oz) 558/19.68
Size (mm/in) 234×97×66/9.21×3.82×2.60
Standard A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional Bluetooth remote control, 18650 battery
