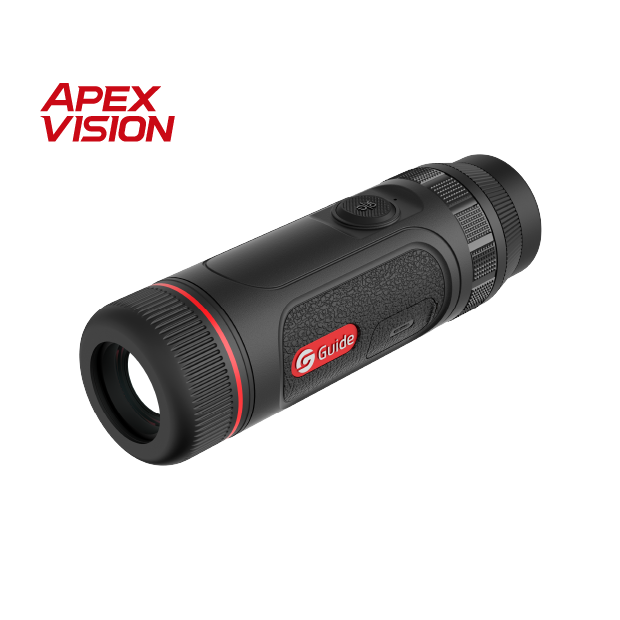

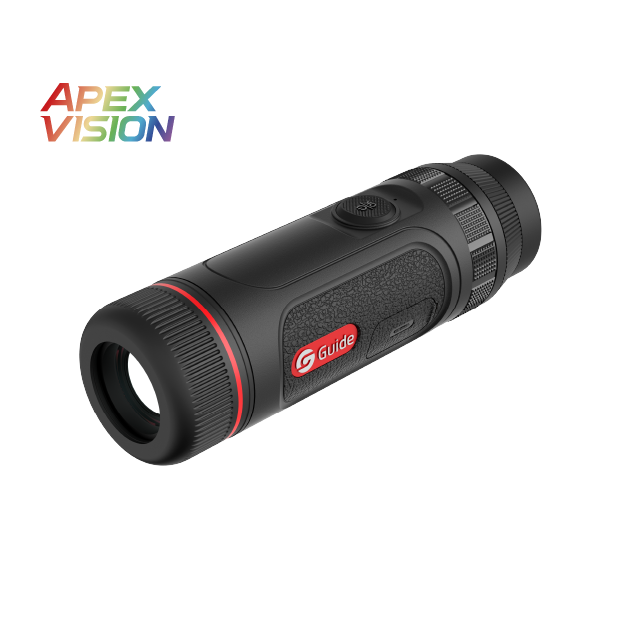

TE425S
Handheld Mini Thermal Imaging Monocular
The TE Series Handheld Thermal Imaging Monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price. It is equipped with a highly sensitive infrared detector, providing multiple resolutions and lens options to meet your diverse needs in various environments. A 10-minute quick charge gives you an hour of continuous use, making it the perfect companion for your outdoor explorations.
400×300@12μmResolution
Only 320gUltra-Lightweight
One-button controlSmooth Operation
IP67Encapsulation
ADD TO COMPARE
-
Complete ApexVision S1 System Architecture
Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
-
-
Powerful 12μm detector Sharp image quality
To achieve a crisp image clarity, the TE Series is equipped with a powerful 12μm detector and offers multiple resolutions and lenses to meet your needs in various scenarios and activities.
-
-

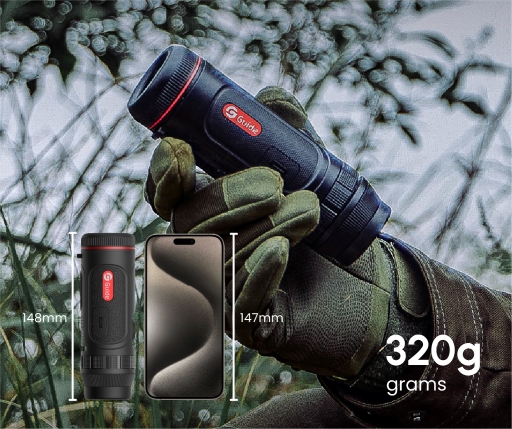

Ultra-lightweight Effortlessly portable
The TE Series only weighs over 320 grams with a compact, pocket-sized design, small like a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional portability.
-
-
Smooth operation One-button, one-ring
Based on years of outdoor experience, the TE Series has streamlined the button design to simplify operations. With a one-button and one-ring design, you can easily access the menu and perform various functions, allowing for seamless control.
-
-
Extended battery 20W quick charge
The TE Series integrates a built-in rechargeable battery that provides up to 5 hours of runtime. It features an advanced 20W quick charge function. With just 10-minute quick charging, you can enjoy 1 hour of continuous use, ensuring worry-free power.
-
-
Comfortable viewing Clear and smooth visuals
The 0.32-inch AMOLED screen presents rich colors and clear, smooth images, offering top-notch visual effects. The comfortable eyepiece and 25mm eye relief reduce eye fatigue, providing a great visual experience for your outdoor observation activities.
-
-
Audio-visual sync
Photos, videos, and audio recordings are all available. With 16GB built-in storage, you can flexibly capture and share exciting moments in the wild anytime and anywhere.
-
-
Dual-band WiFi connection
The WiFi function has been upgraded to dual-band, providing stronger connectivity. The TE Series features faster transmission speeds and longer distances, with upgrade packages downloading in just 10 seconds and a maximum transmission distance of 26.5 meters.
-
MEDIA GALLERY
Technical Parameters
Model
TE425S
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Core Technology Item | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 | |||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 15mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F0.9 | |||
| Field of view | 11.0°×8.2° | |||
| FOV m@100m | 19×14 | |||
| Magnification | 1.9x~7.6x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.32'' AMOLED 800×600 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 25mm; Diopter: -5 to +5; Zoom: 13.8x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charging/Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Built-in Battery | |||
| Operating time | 5 hours (Support 20W quick charging) | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 320/11.29 | |||
| Size (mm/in) | 157x51×47/6.18×2.01×1.85 | |||
| Standard | Device, Lint-Free Cloth, Carry Bag, Wrist Strap, Quick Charging Adapter (US, UK, Australia, and Europe), USB-C to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, USB-A to USB-C Cable | |||
