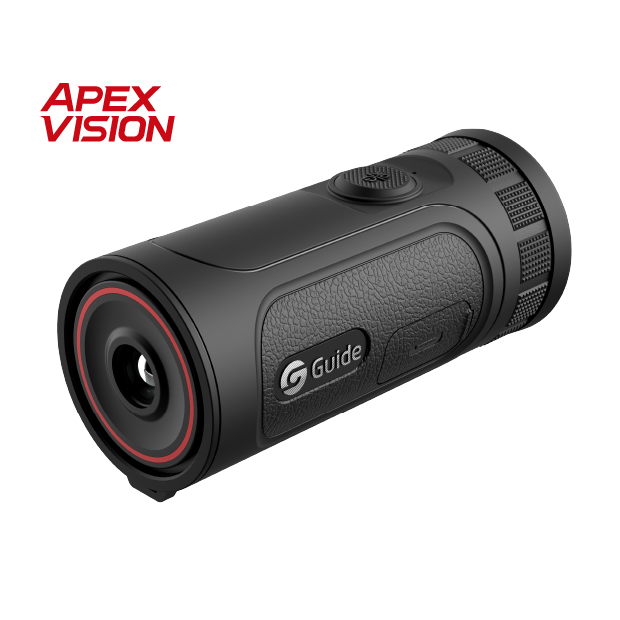

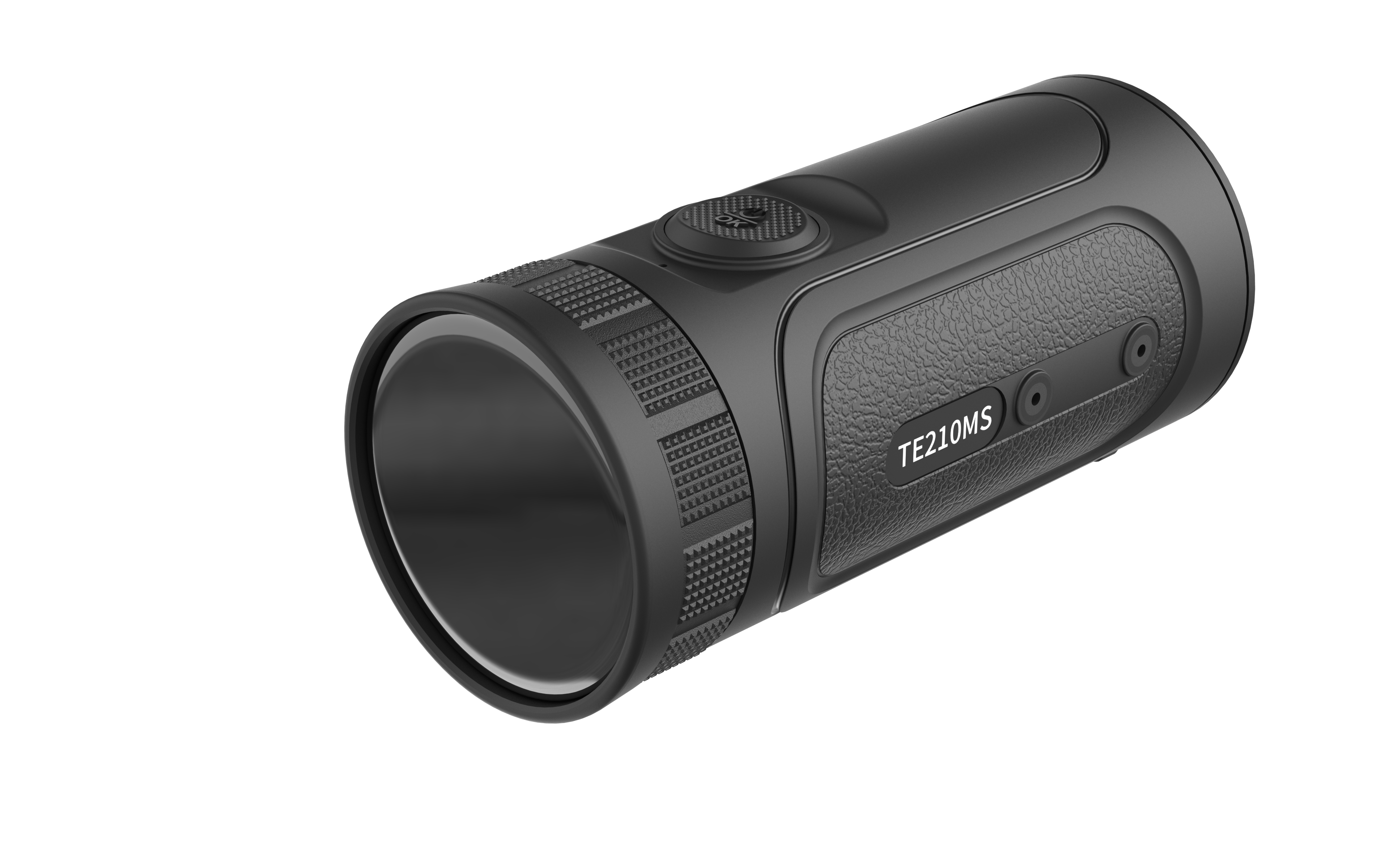

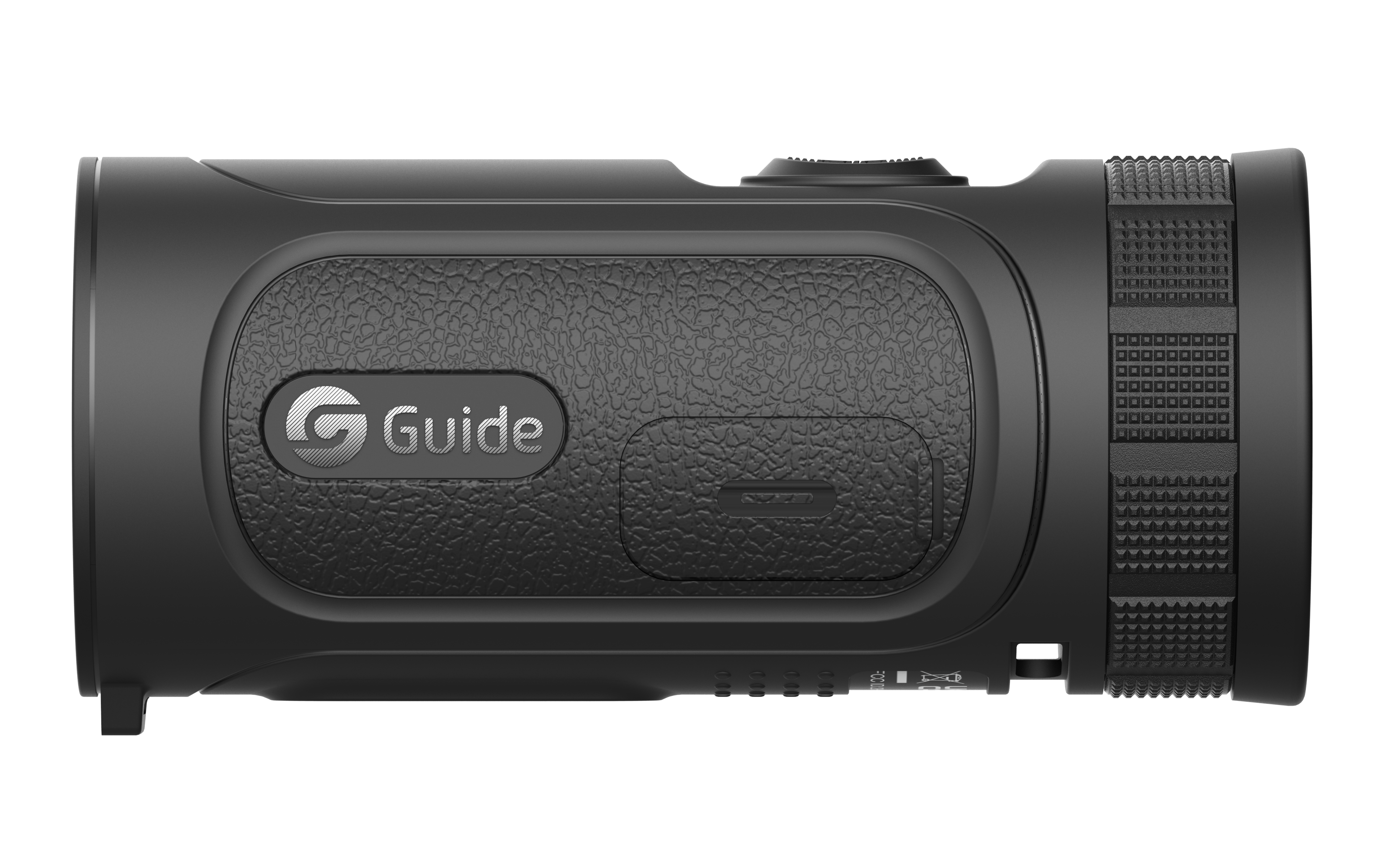

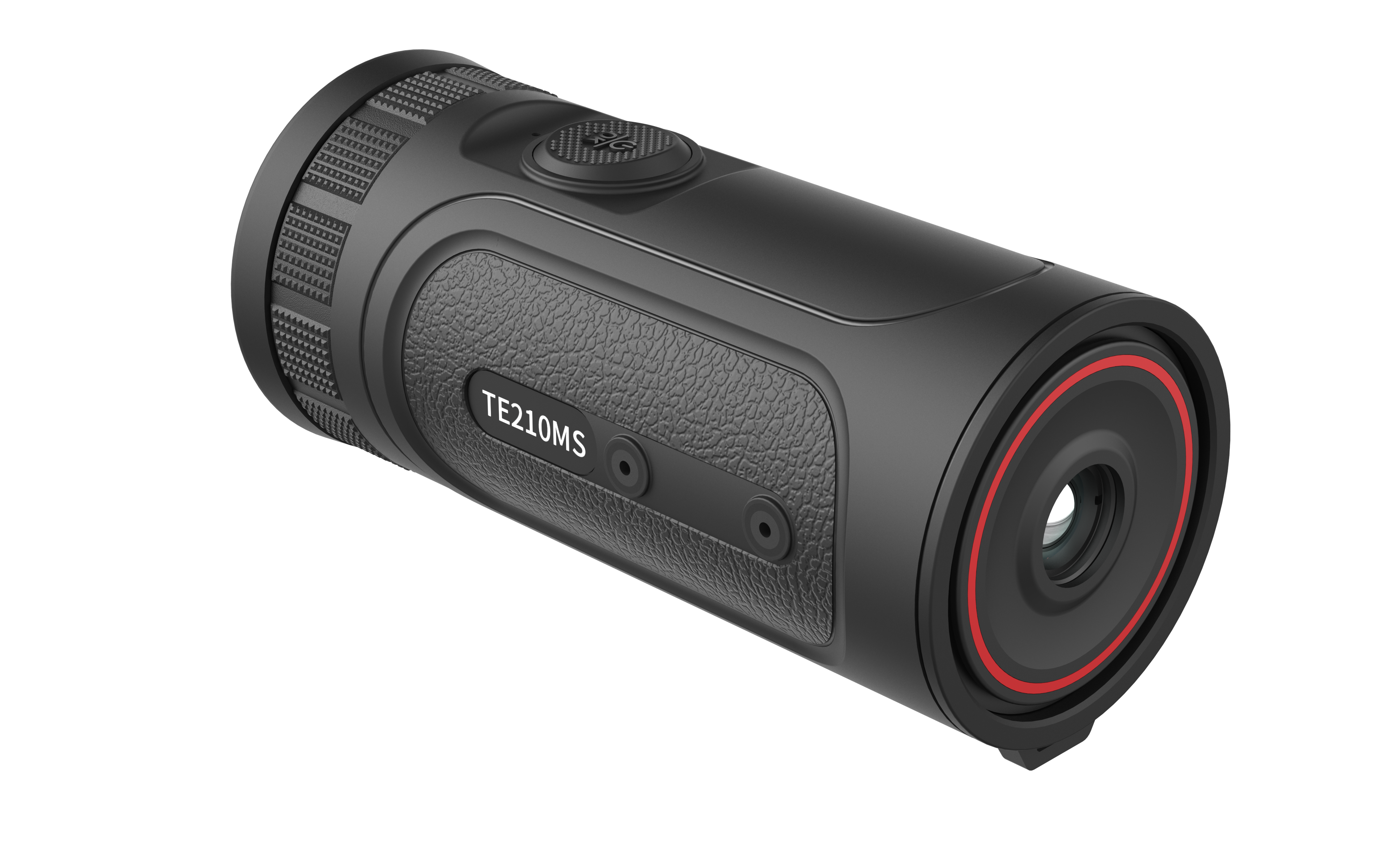

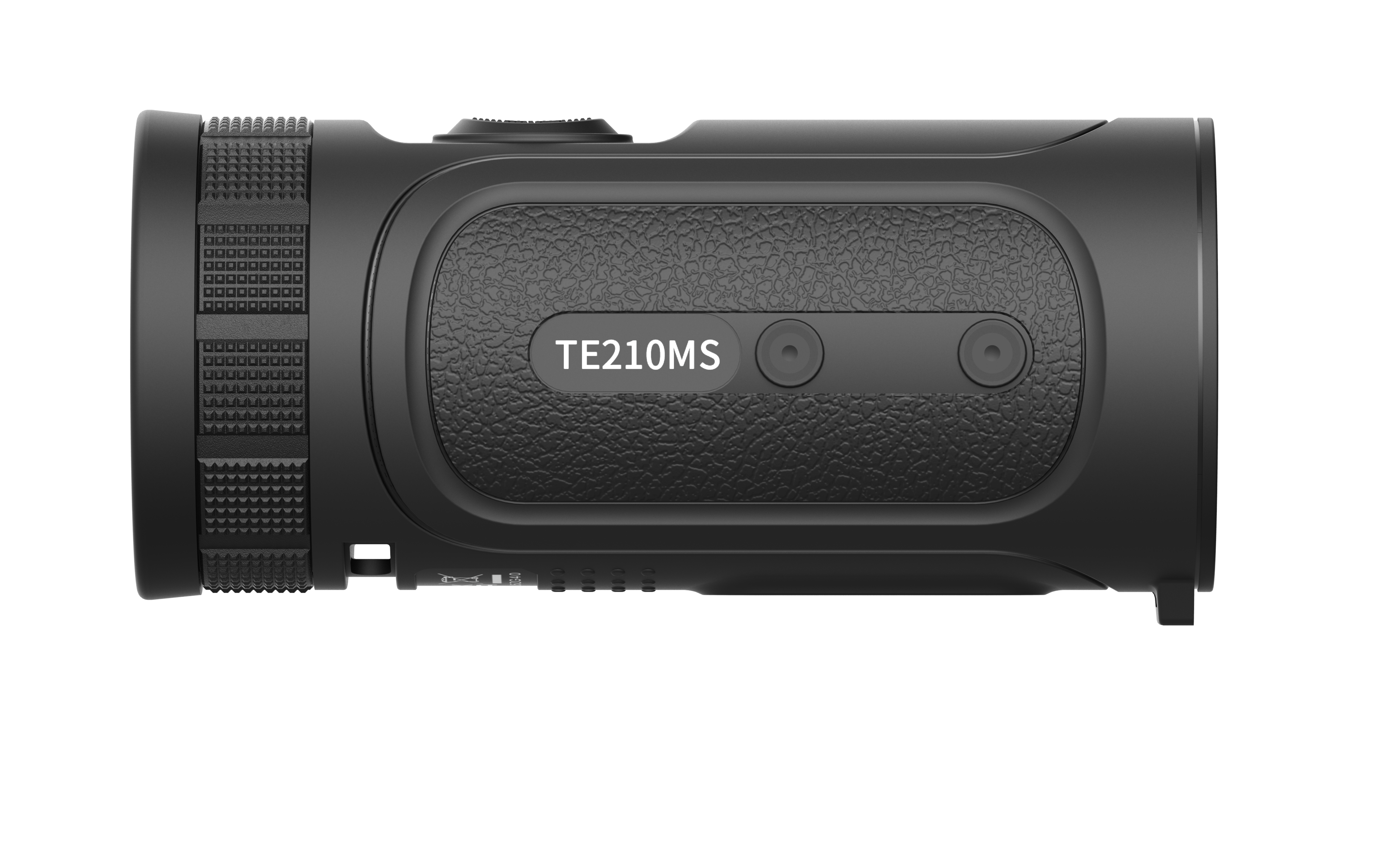

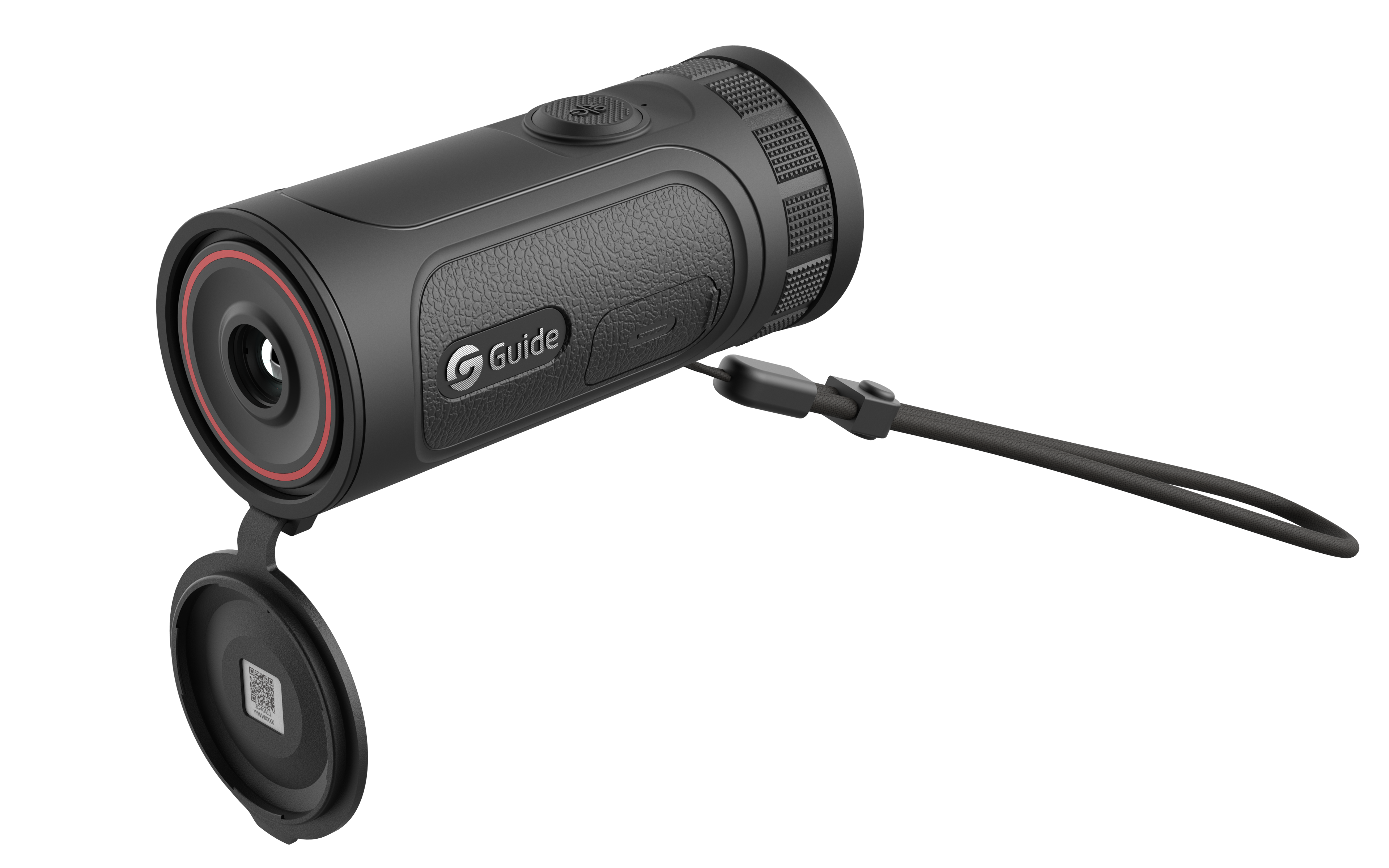

TE210MS

Handheld Mini Thermal Imaging Monocular

TE Mini Series handheld thermal imaging monocular, your pocket-sized night vision companion, is equipped with a 256×192 infrared detector and a 10mm lens, providing a detection range of up to 500 meters. The integrated 1.43” AMOLED full-color touchscreen allows you to view infrared images clearly without pressing your eyes against the eyepiece, reducing eye fatigue during extended use. With just a 10-minute quick charge, it offers up to 1 hour of continuous use, making it the ideal companion by your side.

256×192@12μmResolution

Only 205gUltra-Lightweight

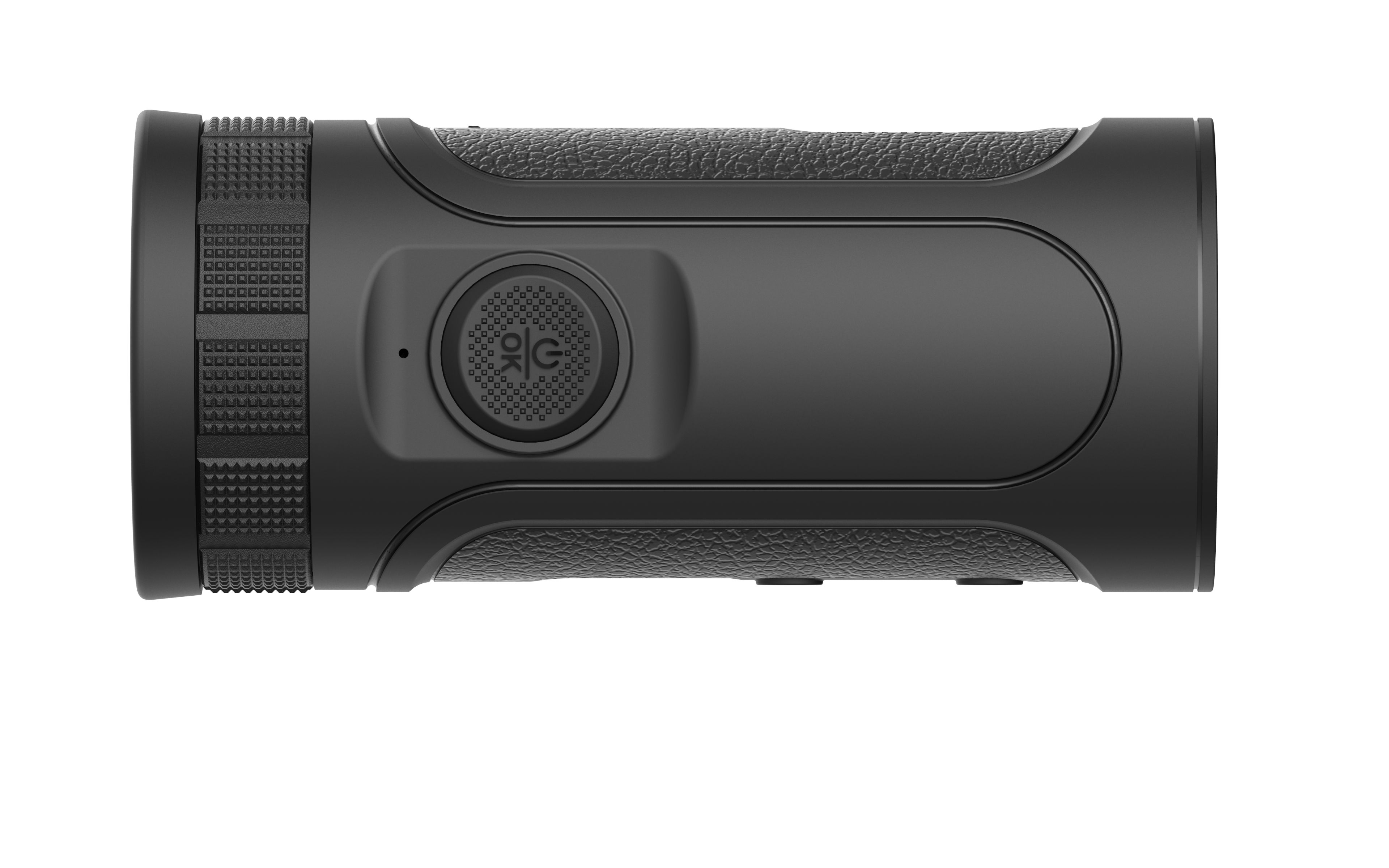

One-button controlSmooth Operation

IP67Encapsulation

Product Manual

Download the APP

ADD TO COMPARE

MEDIA GALLERY

Technical Parameters

Model

TE210MS

ADD TO COMPARE

Sensor
Core technology	Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type	Uncooled VOx Infrared Detector, 8 to 14µm
Resolution	256×192@12µm
NETD	15mK
Frame rate	50Hz

Lens
Objective lens	10mm, F1.0
Field of view	13.1°×13.1°
FOV m@100m	23×23
Magnification	0.4x~1.6x
Detection range	500m/550yd
Focus	Focus-free

Display
Display type	Touch screen, 1.43'' AMOLED 466×466

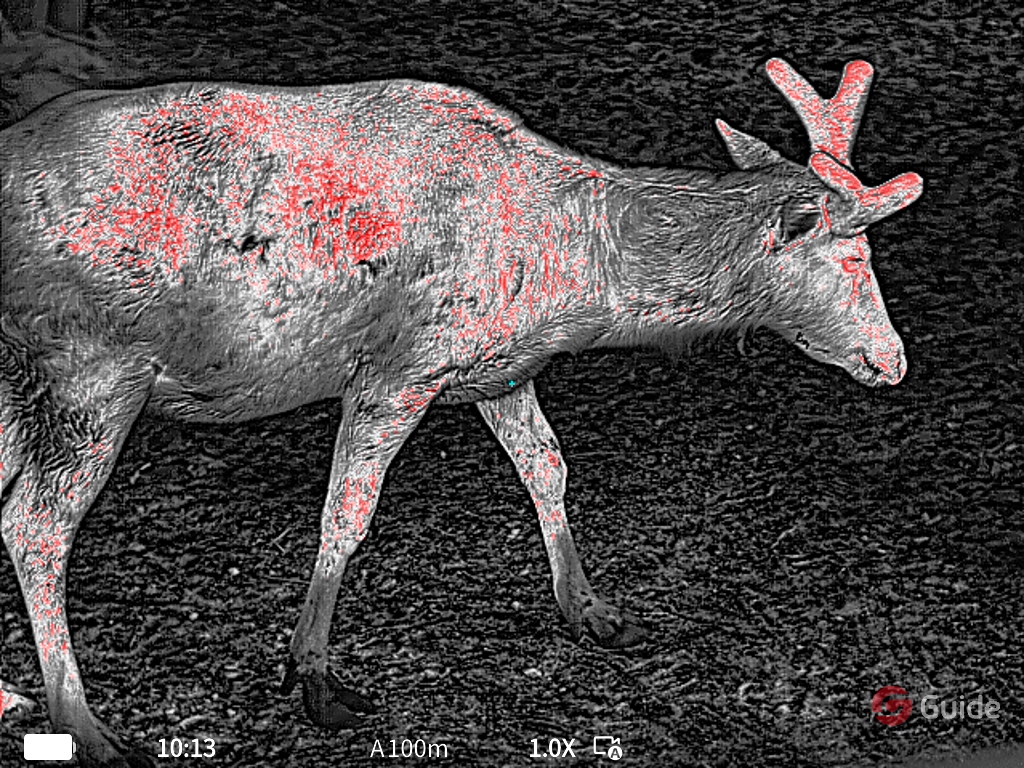

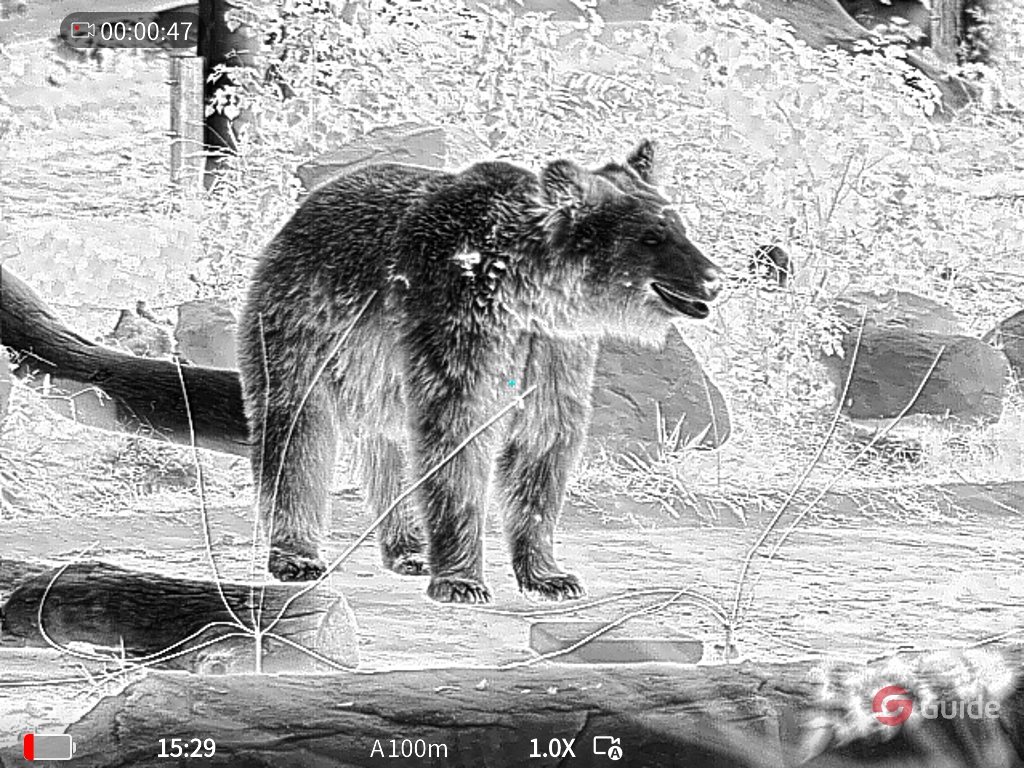

Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Hardware
Wi-Fi	2.4G, 5G
Interface	USB-C (Charging/Power supply/USB2.0)
Others	Microphone, Bluetooth

System
Recording function	Photo/Video (Audio recording included)
Memory capacity	64 GB

Power
Battery type	Built-in Battery
Operating time	6 hours (Support 20W quick charging)

Environmental
Operating temp.	-20°C to 50°C / -4°F to +122°F
Encapsulation	IP67

Physical
Weight (g/oz)	200/7.05
Size (mm/in)	49×49×111/1.93×1.93×4.37

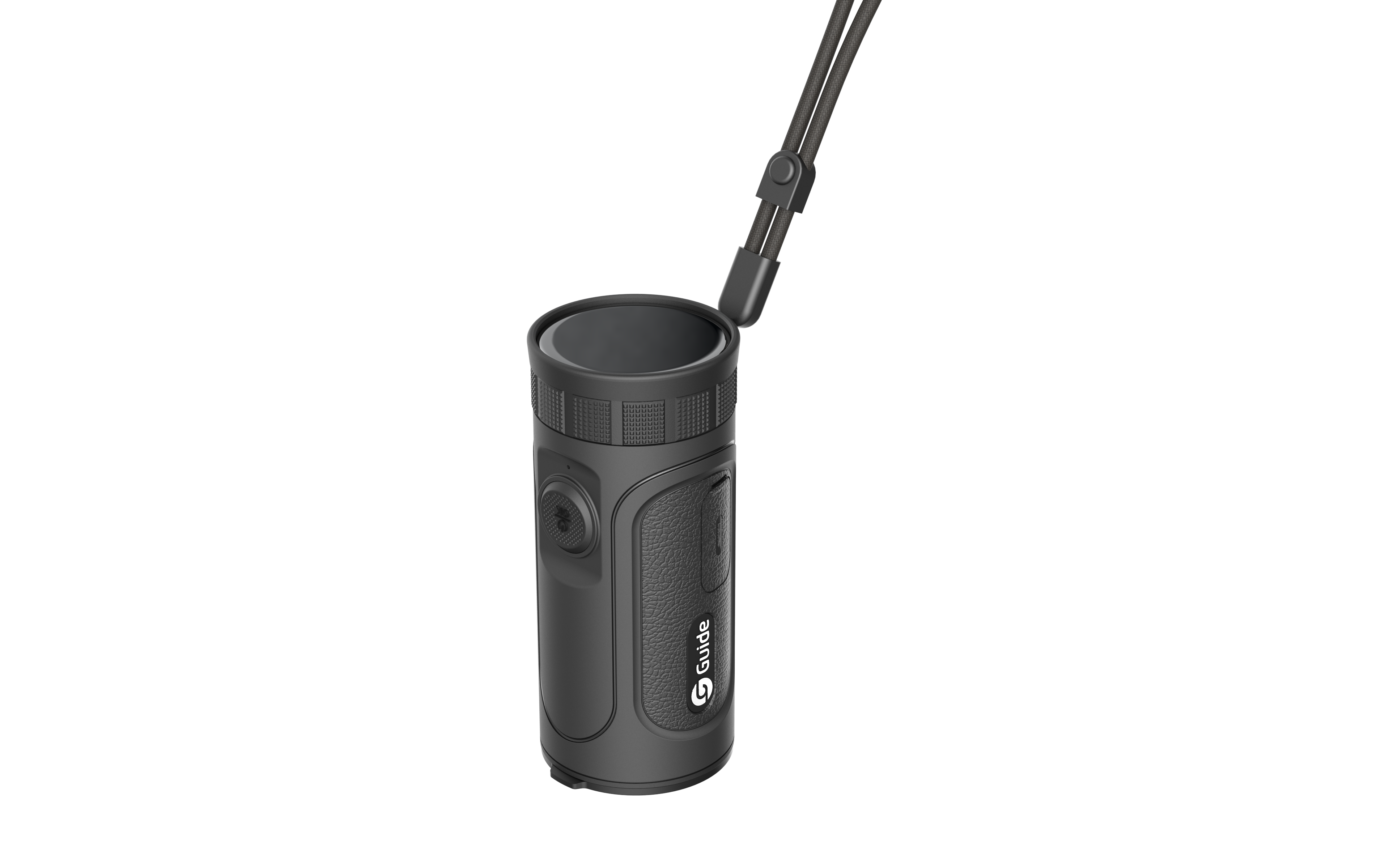

Standard	Device, Wrist Strap, Carry Bag, Lint-Free Cloth, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional	Bluetooth Remote Control, Quick Charging Adapter, USB-C to USB-C Cable
