TD421

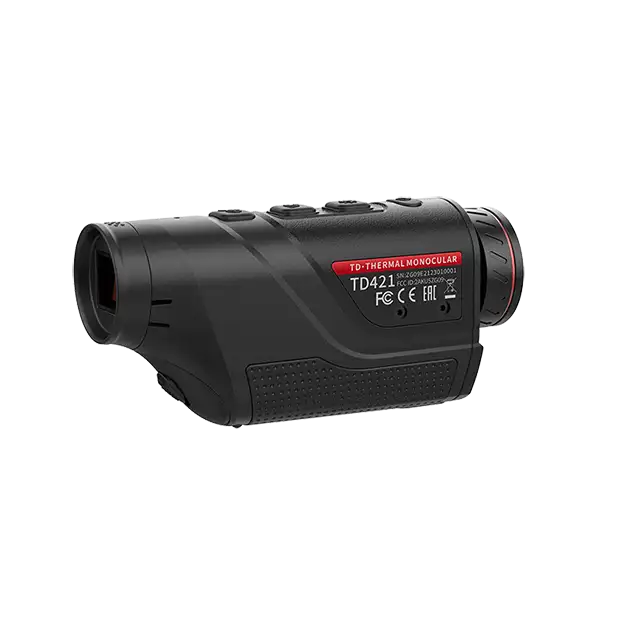

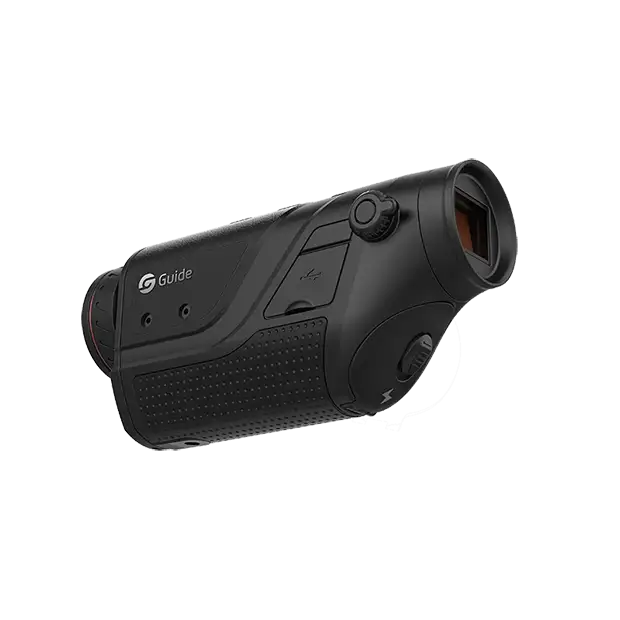

Handheld Thermal Imaging Monocular

TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.

384x288IR Resolution

25mm/F1.1Focal Length

ManualFocusing

10 HoursBattery Life

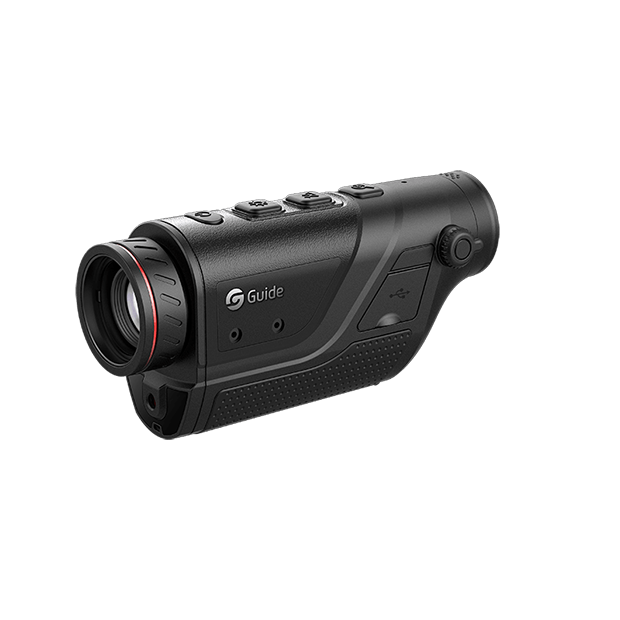

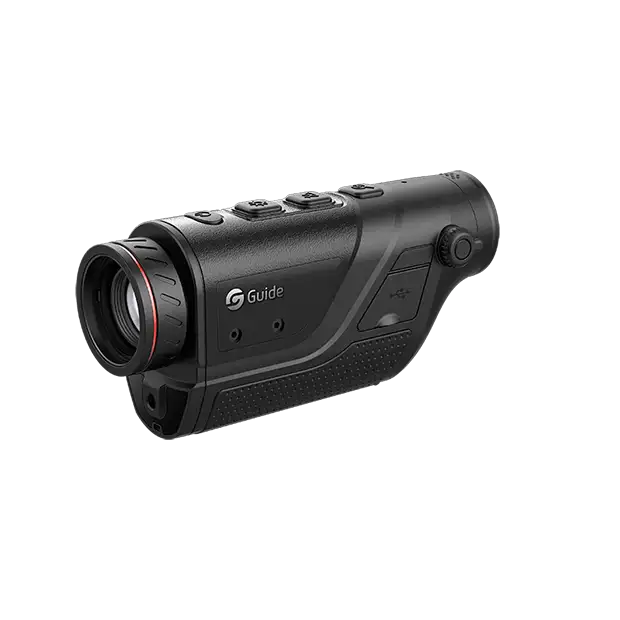

  • ZG09E-TD421_1.png

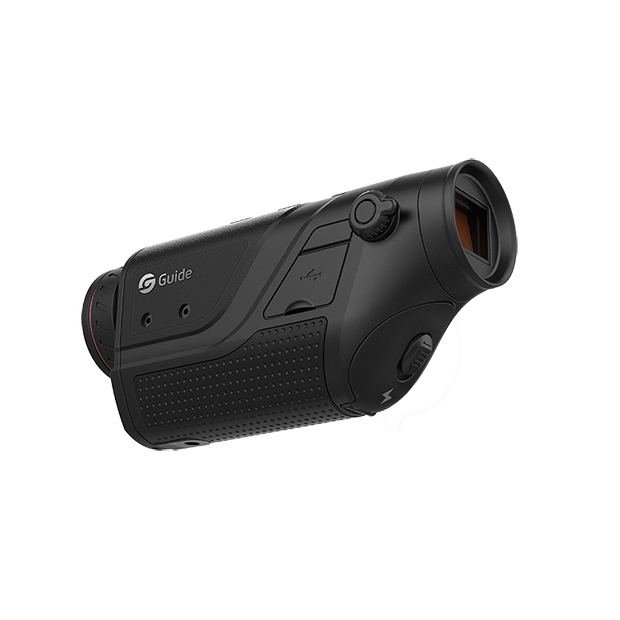

  • ZG09E_TD421_2.png

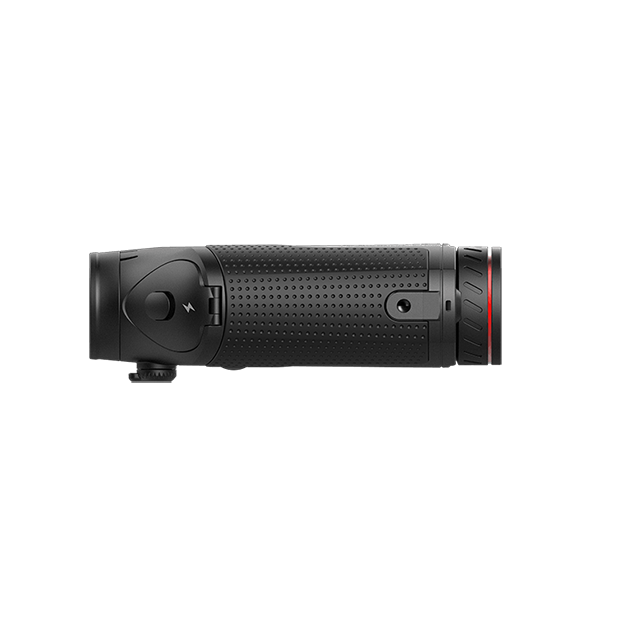

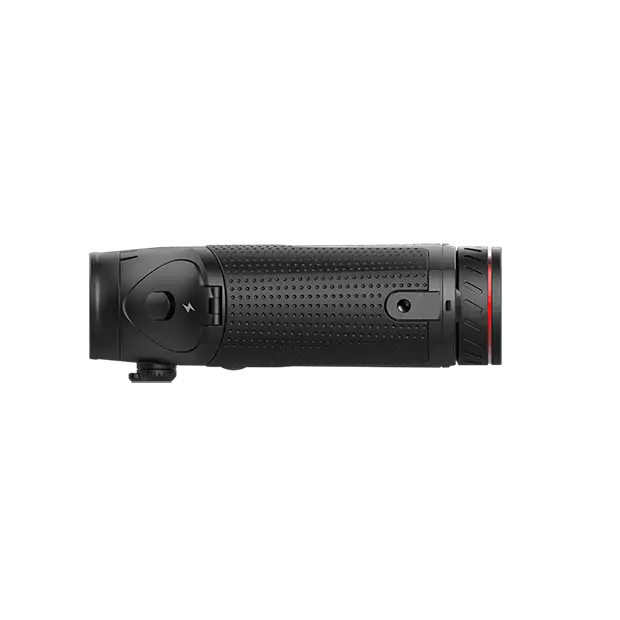

  • ZG09E_TD421_3.png

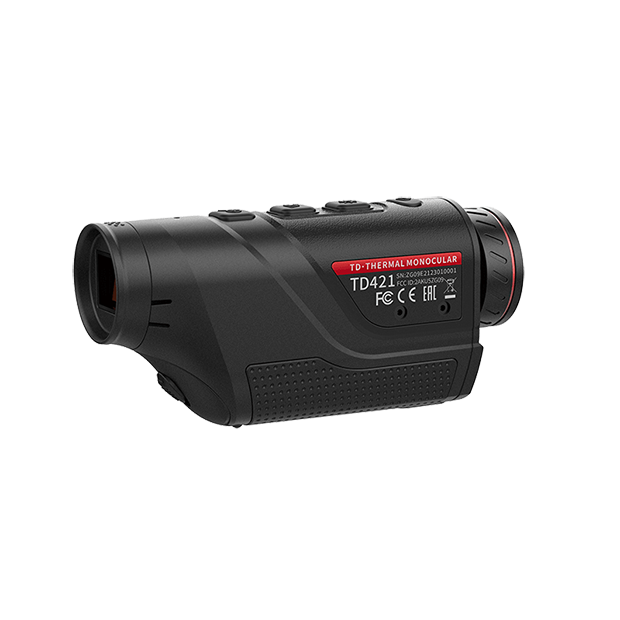

  • ZG09E_TD421_4.png

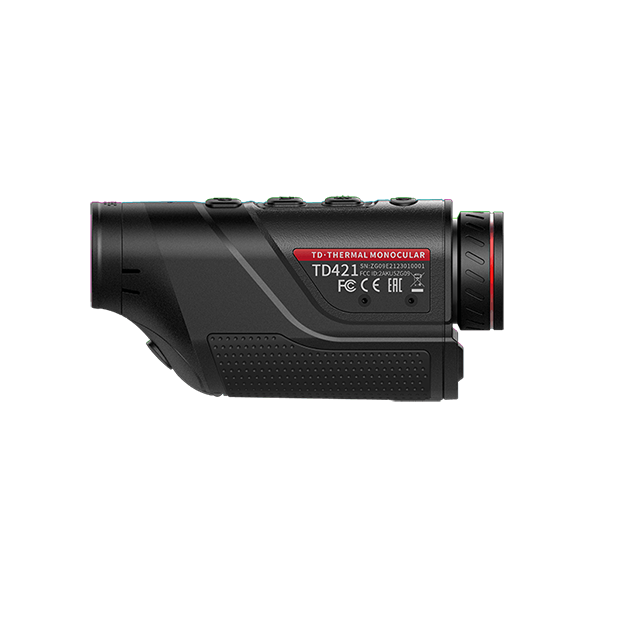

  • ZG09E-TD421_5.png

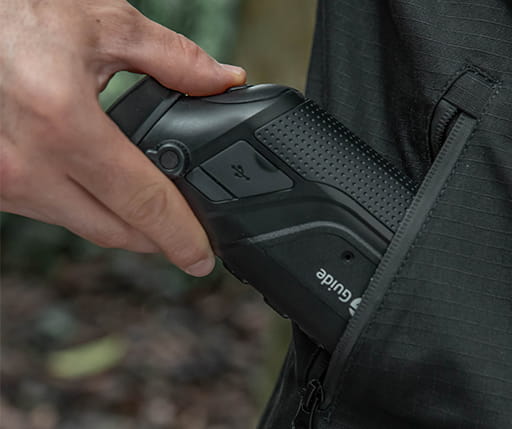

  • Tiny and Powerful

    A lightweight body, which can be controlled by one hand, is comfortable to hold and has no burden to carry and explore.



    • image1-512X429.jpg

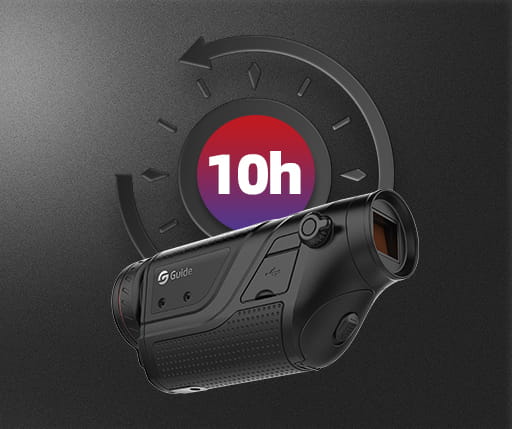

  • 10 Hours Strong Battery Life

    Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.



    • image2-512X429.jpg

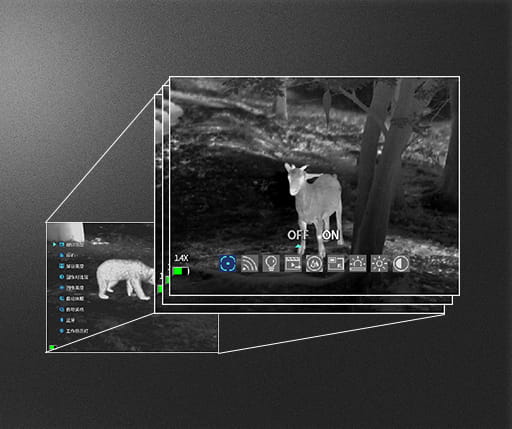

  • New User Interface design

    New user interface design to simplify operation; iconized operation without language restrictions.



    • image3-512X429.jpg

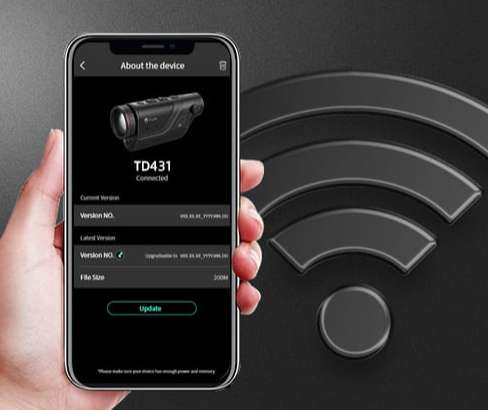

  • OTA Upgrade

    Support device firmware updates by connecting to TargetIR APP for high efficiency.



    • image5-512X429-en.jpg
  • Real-time Sharing by WIFI

    Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.



    • image4-512X429.jpg

MEDIA GALLERY

  • DSC01442_副本.jpg

  • DSC01461_副本.jpg

  • TD6-鹿3_副本.jpg

Technical Parameters

Model

TD421

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 384×288@12μm
NETD 35mK
Frame rate 50Hz
Lens
Objective lens 25mm, F1.1
Field of view 10.4°×7.9°
FOV m@100m 18×14
Magnification 1.9x~7.6x
Detection range 1300m/1400yd
Display
Display type 0.23'' AMOLED 640×400
Color palettes Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
Eyepiece Eye relief: 12 mm; Diopter: -4 to +2; Zoom: 18x
Hardware
WIFI 2.4G
Interface USB Type-C
Power
Battery type Single, replaceable 18650 battery
Operating time 10 hours
Environmental
Encapsulation IP66
Physical
Weight (g/oz) 325/11.46
Size (mm/in) 150×45×74/5.91×1.77×2.91
Standard A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card
