Guide Sensmart's TD631 LRF handheld thermal imaging monocular has a wide range of applications, such as in law enforcement, outdoor, and life entertainment.

TD631 LRF

Handheld Thermal Imaging Monocular

The TD Gen2 LRF Series is the industry's first entry-level full-featured handheld thermal imaging monoculars. While inheriting the characteristics of the previous generation, such as being lightweight, portable, easy to operate, and durable, it integrates a high-precision laser rangefinder module to accurately detect targets within 600 meters. It adopts an AMOLED display, providing clear imaging and a comfortable viewing experience, making it the ideal equipment for outdoor night vision.

640x480IR Resolution

35mm/F1.0Focal Length

640x400AMOLED Display

8 HoursBattery Life

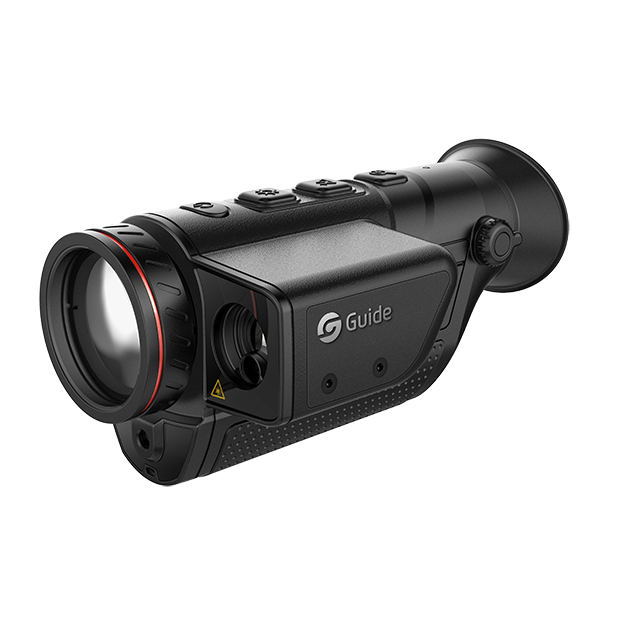

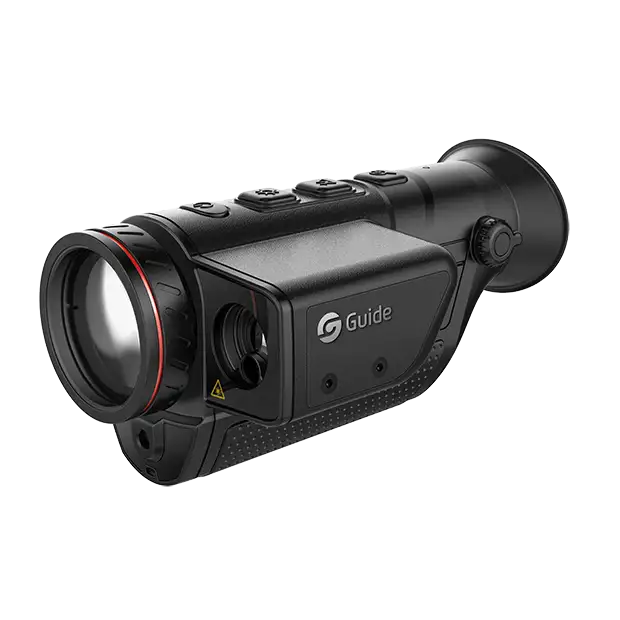

  • 620.png

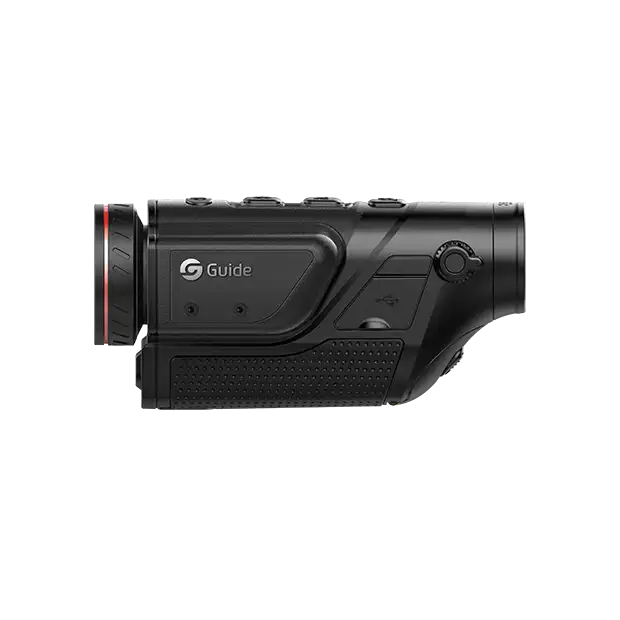

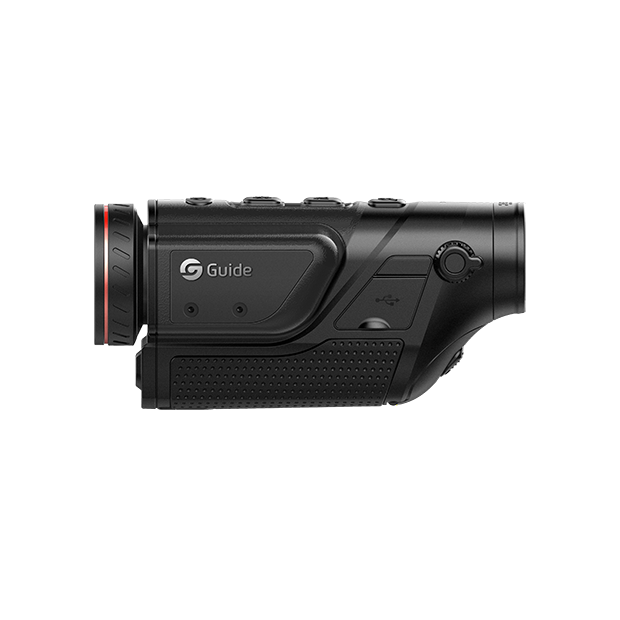

  • ZG09G_02-zuoshitu_.png

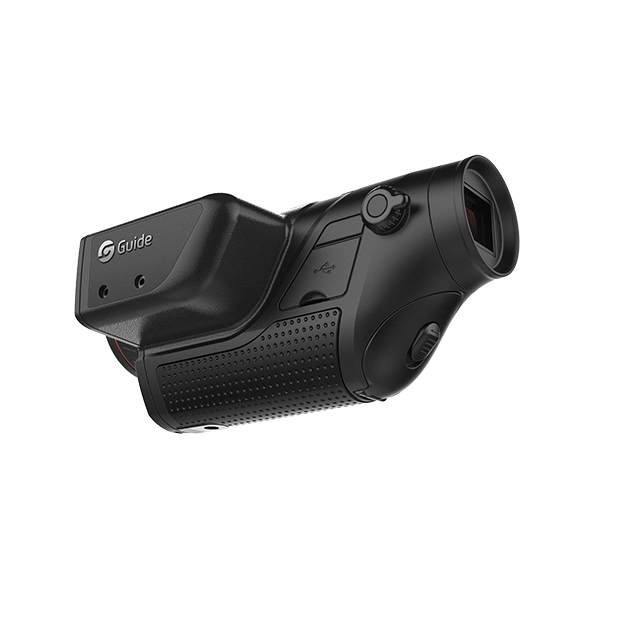

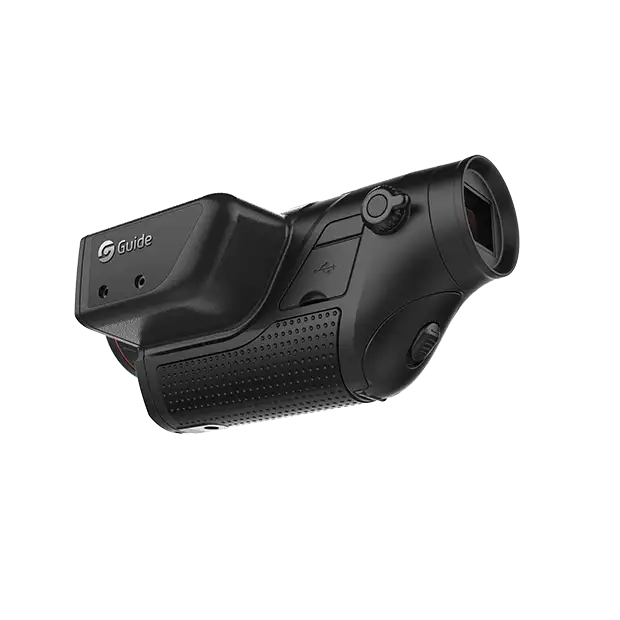

  • ZG09G_03-weibutoushitu-biaozhun.png

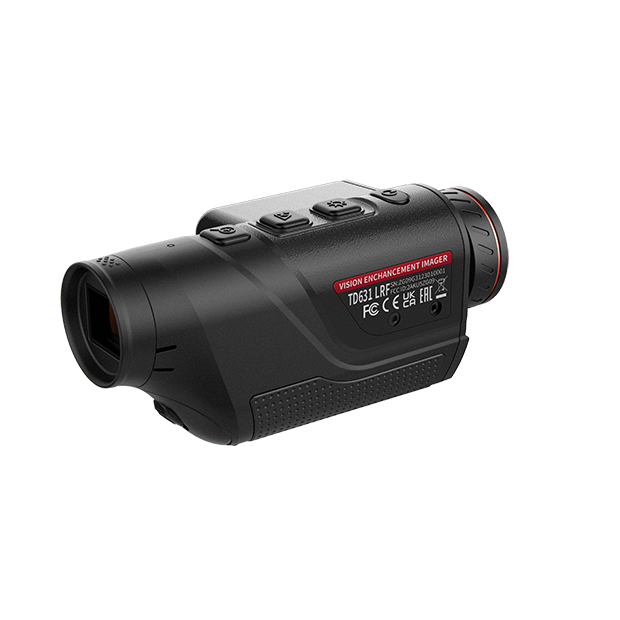

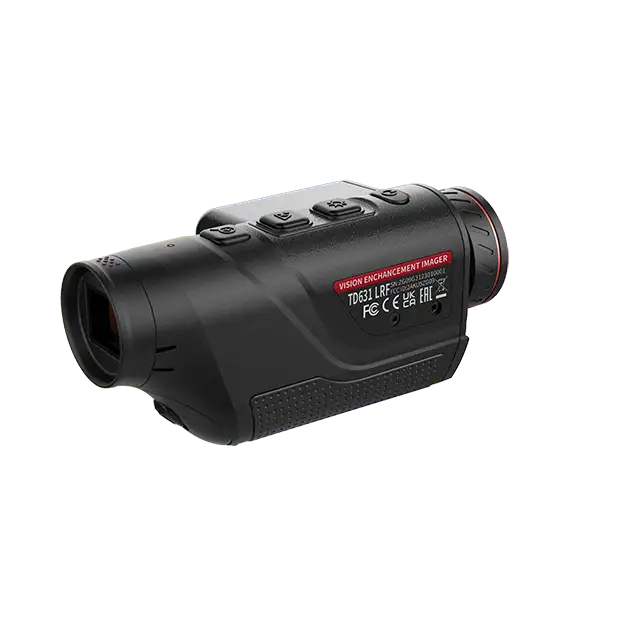

  • ZG09G_biaozhun_02-you45toushitu.png

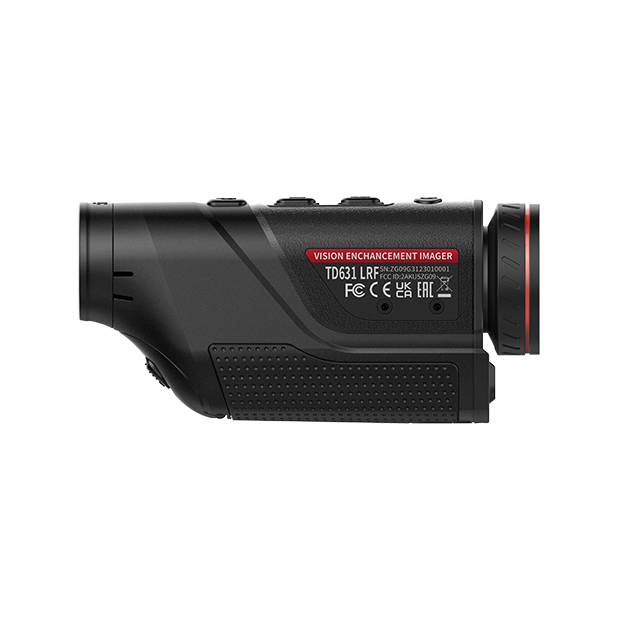

  • ZG09G_biaozhun_02-youshitu.png

banner_TD2 L.jpg

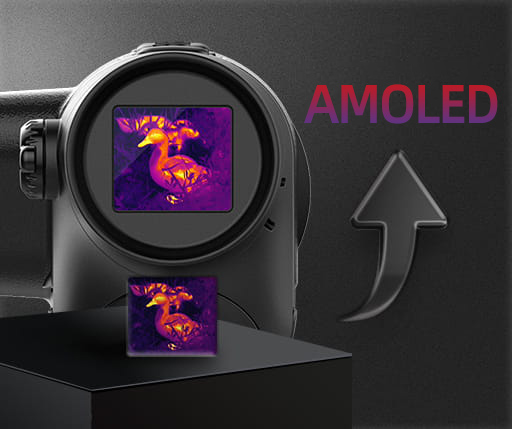

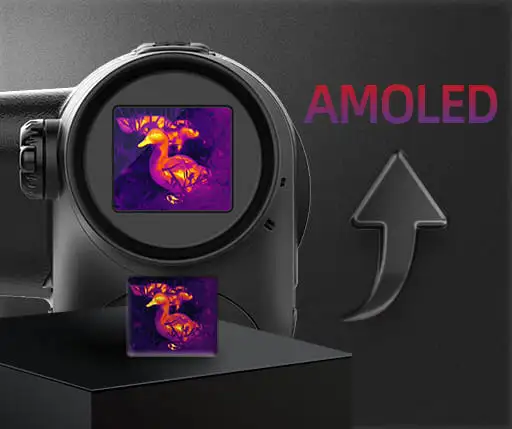

  • High-brightness AMOLED Display

    The 12μm high sensitivity infrared detector and a 0.23-inch AMOLED display with 384 x 288 resolution to better depict image edges and details, providing a high-contrast and detailed thermal image for a comfortable viewing experience.

    • image1-512X429-999.jpg

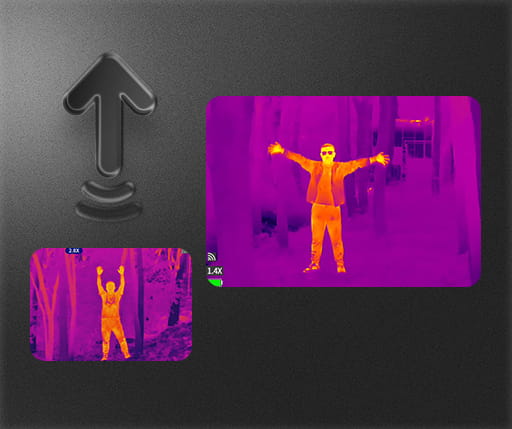

  • Enhanced Image Processing Algorithms

    The TD Gen2 LRF Series uses a new approach to image optimisation depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

    • image2-512X429-133.jpg

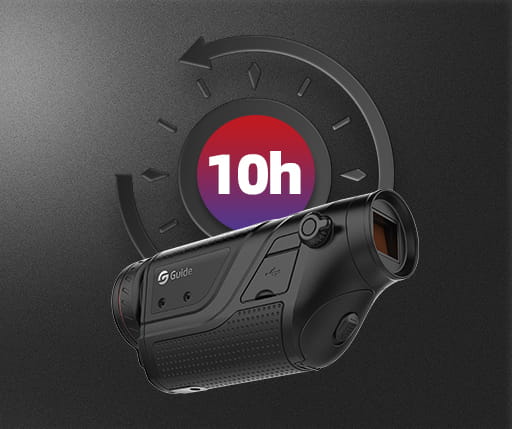

  • 10 Hours Strong Battery Life

    Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.



    • 64be24b61ff8b.jpg

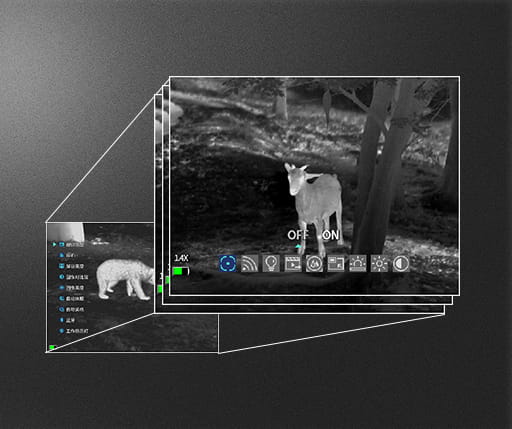

  • New User Interface design

    New user interface design to simplify operation; iconized operation without language restrictions.

    • 64be24b620202.jpg

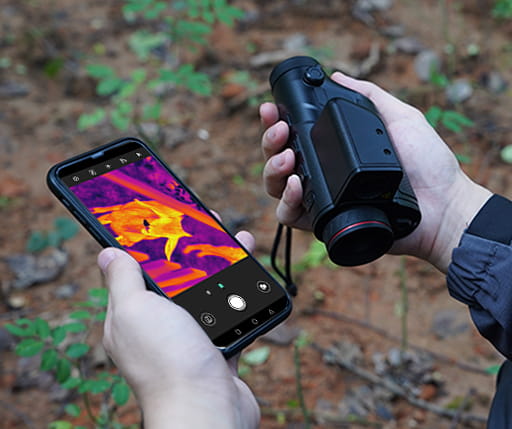

  • Real-time Sharing by WIFI

    Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.

    • image5-512X429.jpg

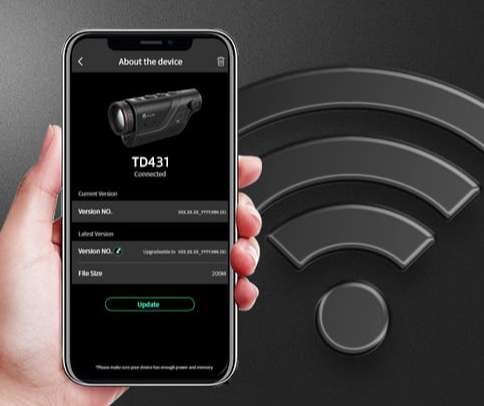

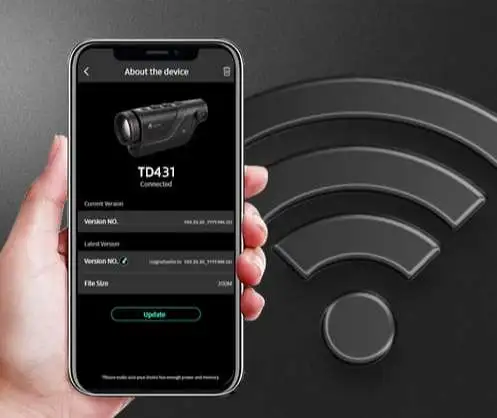

  • OTA Upgrade

    Support device firmware updates by connecting to TargetIR APP for high efficiency.



    • 64be24b6206dd.jpg

Media Gallery

  • 2024.01.14th.GST-452_副本.jpg

  • TD2LRF-特写P图_副本.jpg

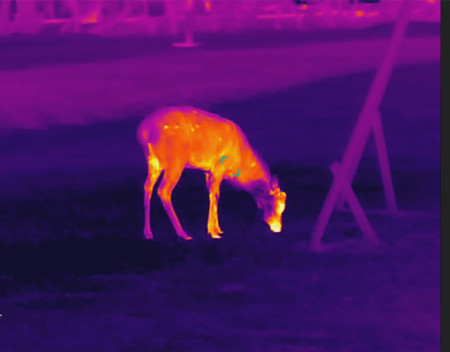

  • 鹿3_副本.jpg

Technical Parameters

Model

TD631 LRF

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×480@12μm
NETD 35mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×9.4°
FOV m@100m 22×16
Magnification 1.7x~13.6x
Detection range 1800m/1950yd
Display
Display type 0.23'' AMOLED 640×400
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 12mm; Diopter: -4 to +2; Zoom: 18x
Hardware
Laser rangefinder 600m/650yd
WIFI 2.4G
Interface USB Type-C
Power
Battery type Single, replaceable 18650 battery
Operating time 8 hours
Environmental
Encapsulation IP66
Physical
Weight (g/oz) 399/14.07
Size (mm/in) 153×77×74/6.02×3.03×2.91
Standard A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card
