TB630

Clip-on Thermal Imaging Attachment

The TB Series bridges the gap between precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.

High sensitivityNETD 20mK

Display1920x1080

Operating time12h

EncapsulationIP68

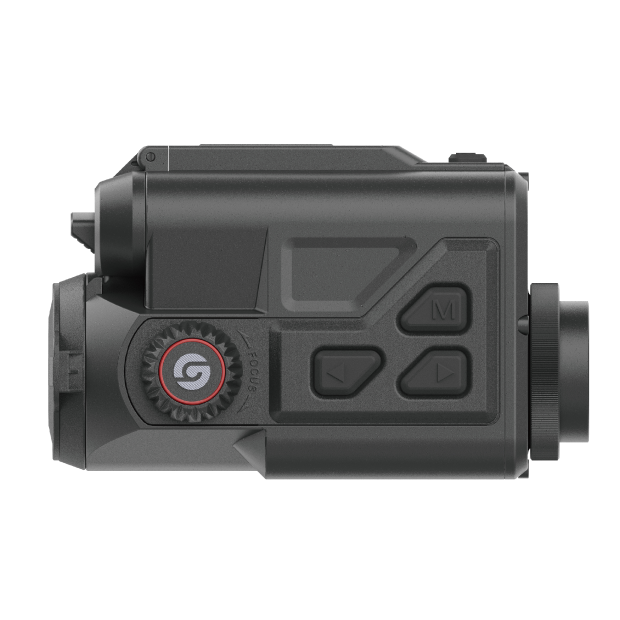

  • TB3901 2.png

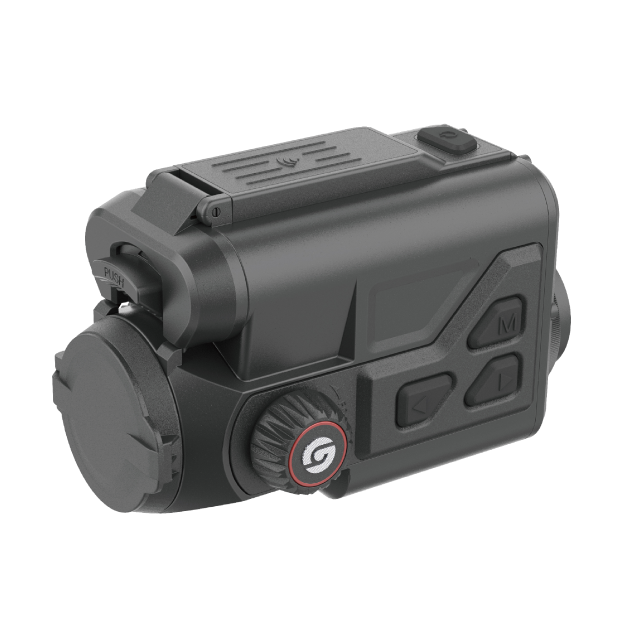

  • TB6545 1.png

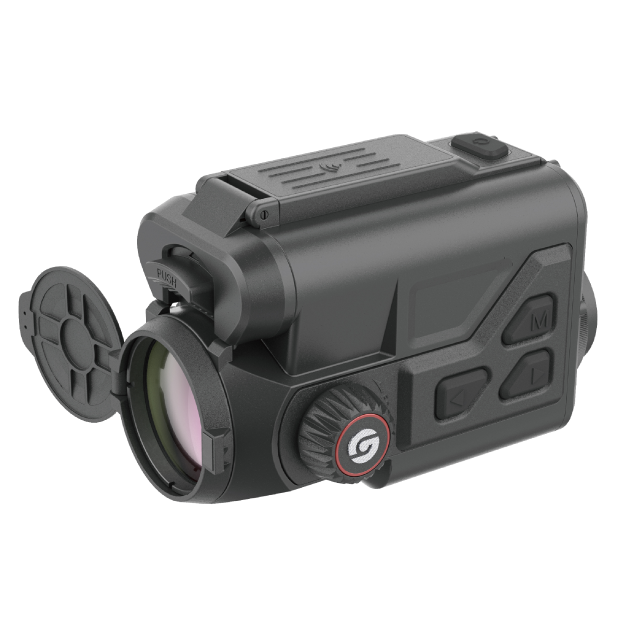

  • TB4174 1.png
  • TB5258 1.png
  • TB2318 1.png

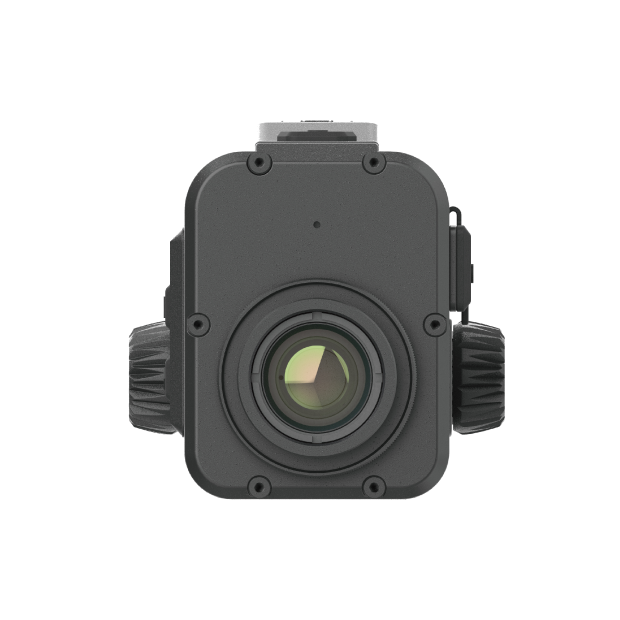

  • TB1143 1.png

banner_TB .jpg
  • 12μm high sensitivity infrared detector

    By utilizing a highly sensitive IR detector with a NETD of 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.

    • 官网切图-13.jpg
  • 1920x1080 AMOLED Display

    The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.

    • 官网切图-12.jpg
  • Compact design, lightweight and portable

    The body shell is made of a lighter magnesium alloy, making it more compact and easier to carry and install.

    • 官网切图-11.jpg

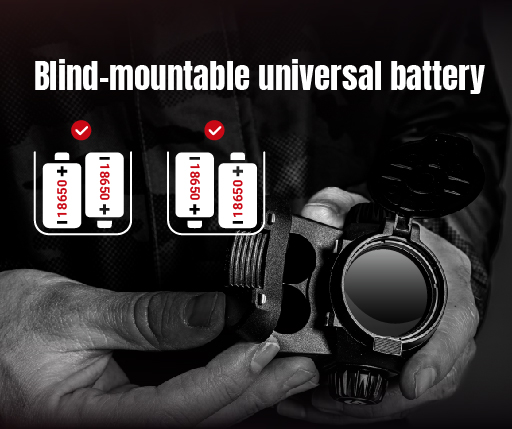

  • Blind-mountable universal battery

    Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.

    • 官网切图-14.jpg

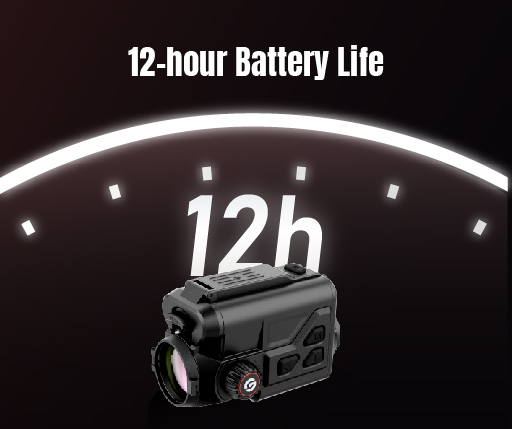

  • 12-hour Battery Life

    Experiencing wild adventures with power energy consumption, lightweight design, and enduring performance.

    • 官网切图-15.jpg

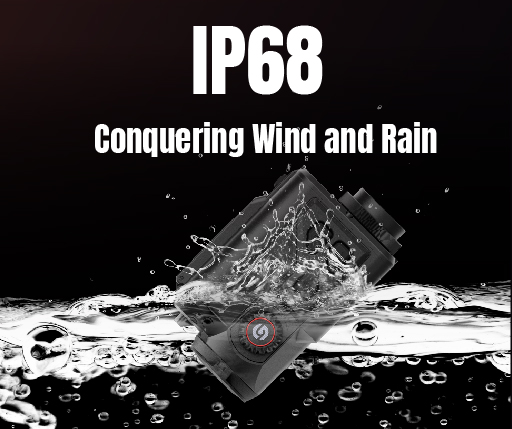

  • IP68 Conquering Wind and Rain

    Superior waterproof performance ensures reliable operation in the harshest conditions. Shock resistance up to 1000G/ms.

    • 官网切图-10.jpg

TBSeriespc1.jpg TBSeriesph1.jpg

Media Gallery

  • 2024.01.14th.GST-189_副本.jpg

  • 03-334.jpg

  • 野猪-GUIDE TK 631 (1)_副本.jpg

Technical Parameters

Model

TB630

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×10.0°
FOV m@100m 22×17
Magnification 1x
Detection range 1800m/1950yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Zoom: 9.5x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 10 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 1000G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Physical
Weight (g/oz) 440/15.52
Size (mm/in) 128×79×79/5.04×3.11×3.11
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
