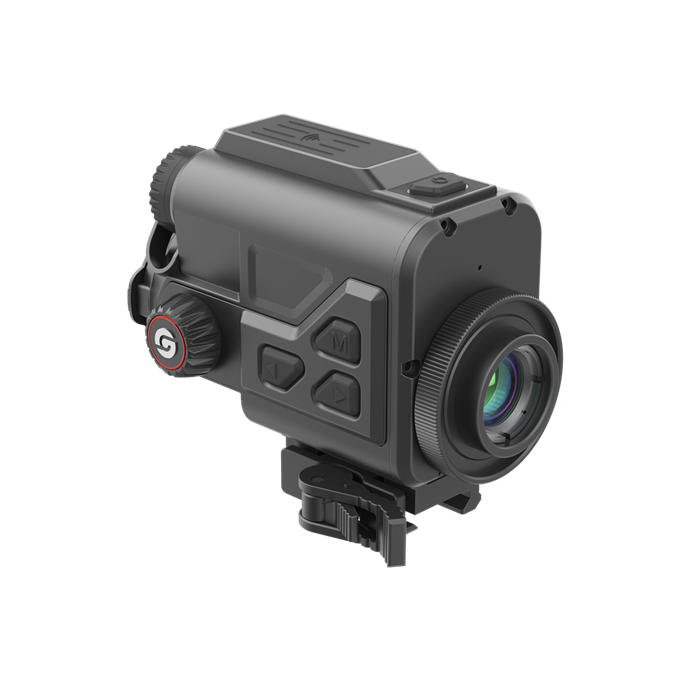

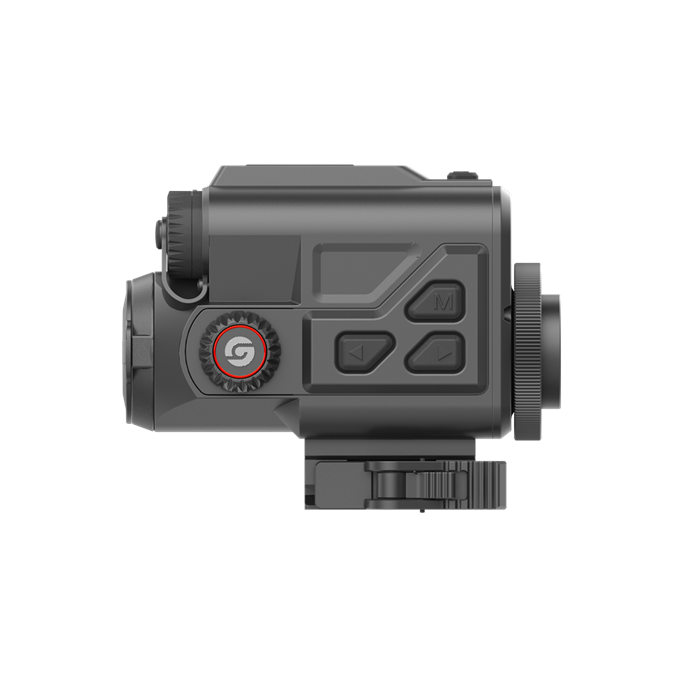

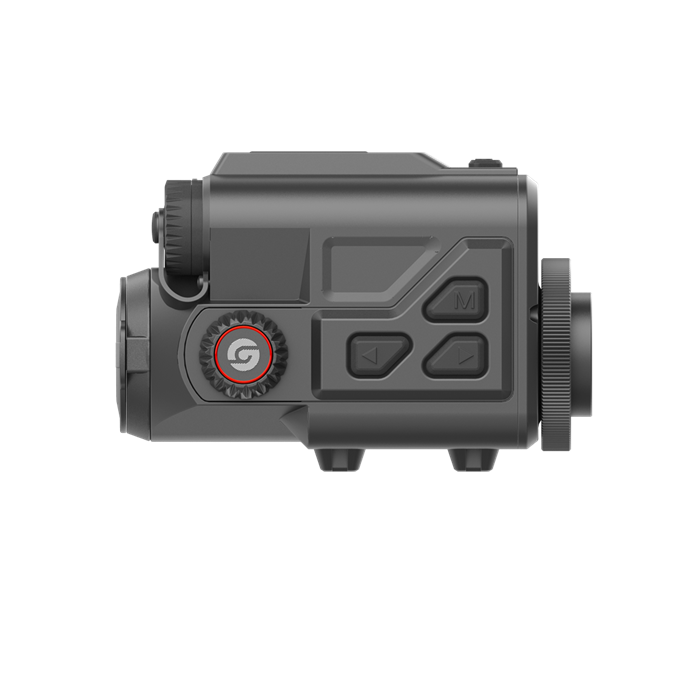

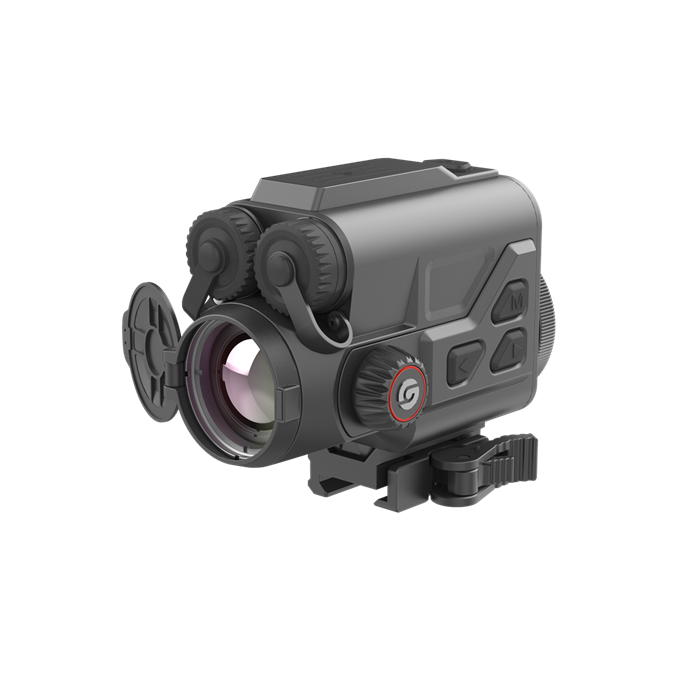

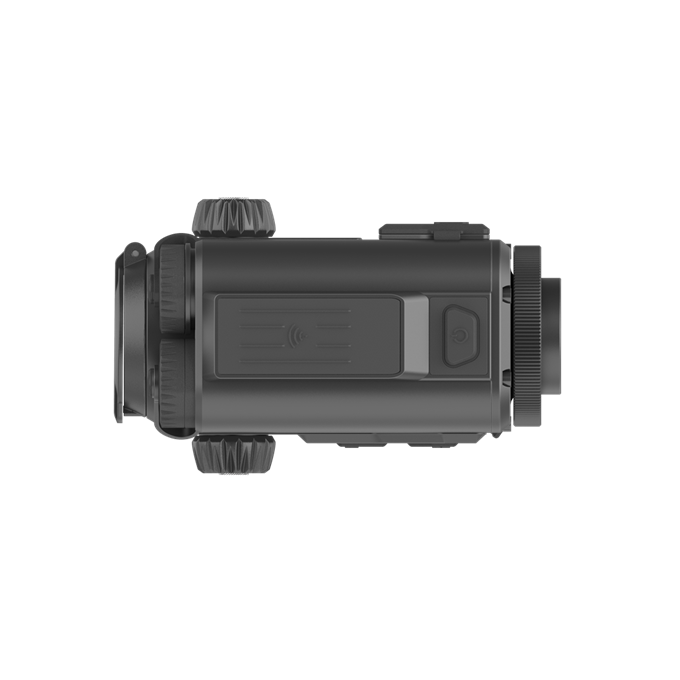

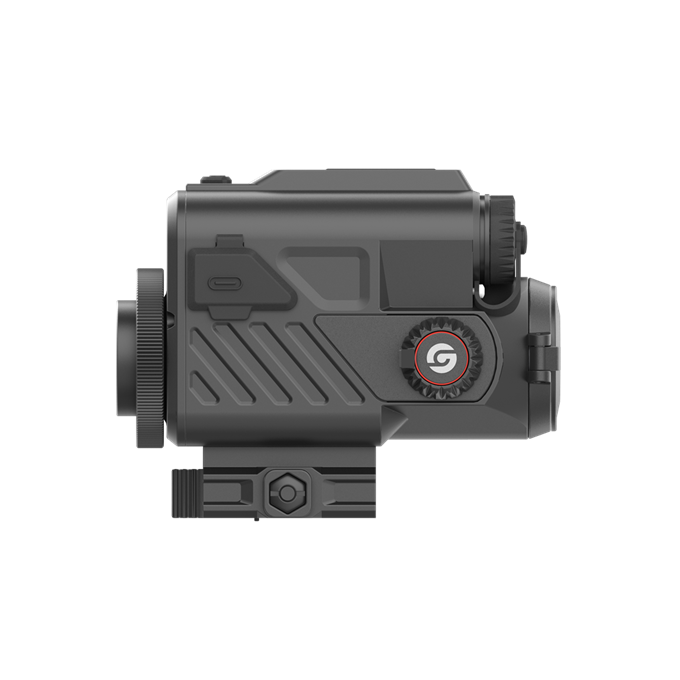

TB630 LRF
Thermal Imaging Attachment
The TB LRF Series perfectly balances precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.
NETD20mk
DisplayFull-HD 1920×1080
Laser rangefinder1000m
EncapsulationIP68

ADD TO COMPARE

-
12μm infrared detector, NETD down to 20mK
TB LRF Series adapts the high-sensitive 12μm infrared detector with NETD down to 20mK, providing a crystal-clear image in both day and night time.
-
-

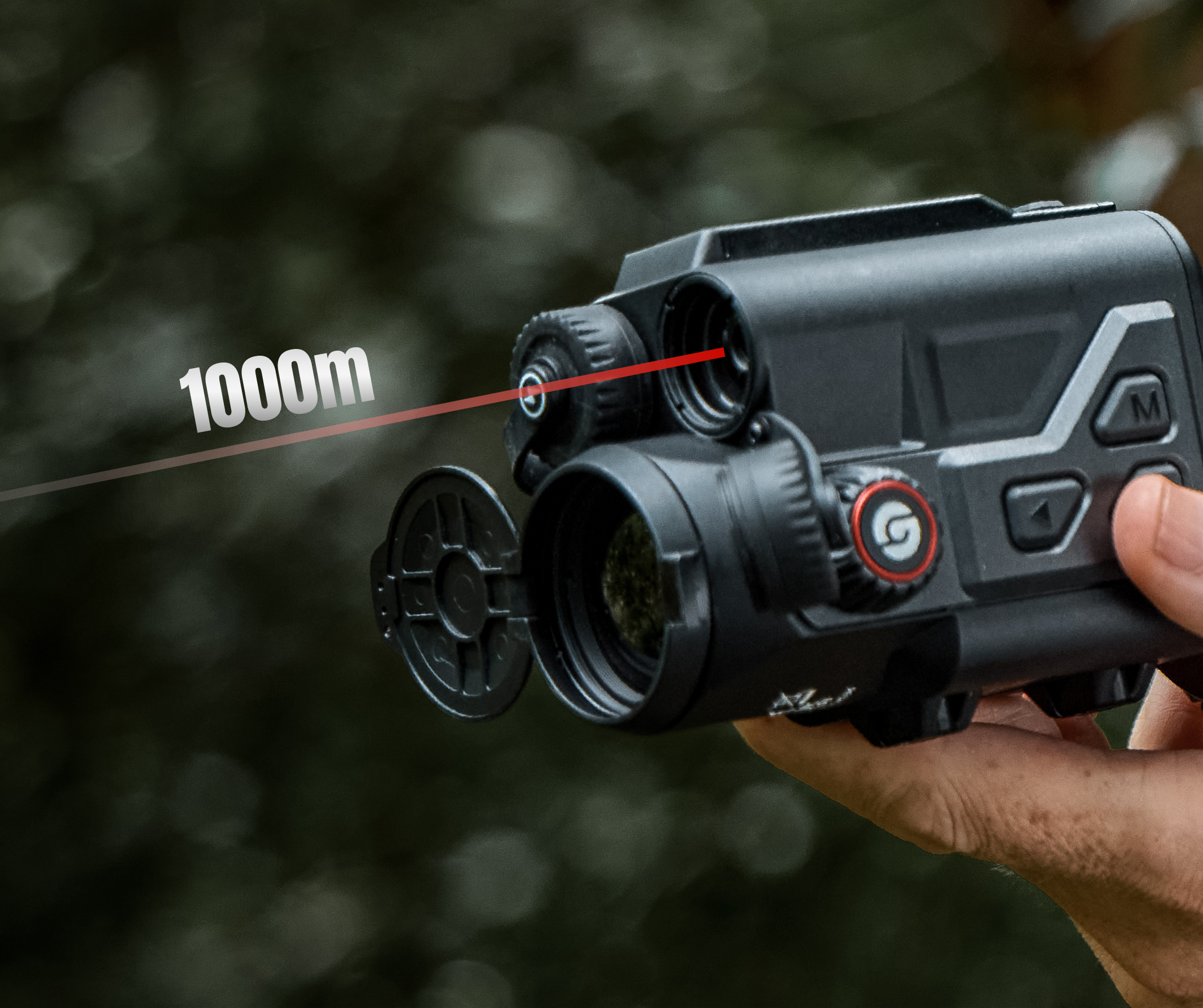

Accurate 1000m laser rangefinder
The built-in LRF module provides a long laser rangefinder of up to 1000m/1090yd, helping users to detect and locate the targets for making quick decisions.
-
-
Full-HD 1920x1080 AMOLED display
Equipped with an ultra-large 0.39'' AMOLED display of 1920x1080 pixels resolution, TB LRF Series is capable of delivering better image quality and presenting more details and information about identified targets.
-
-

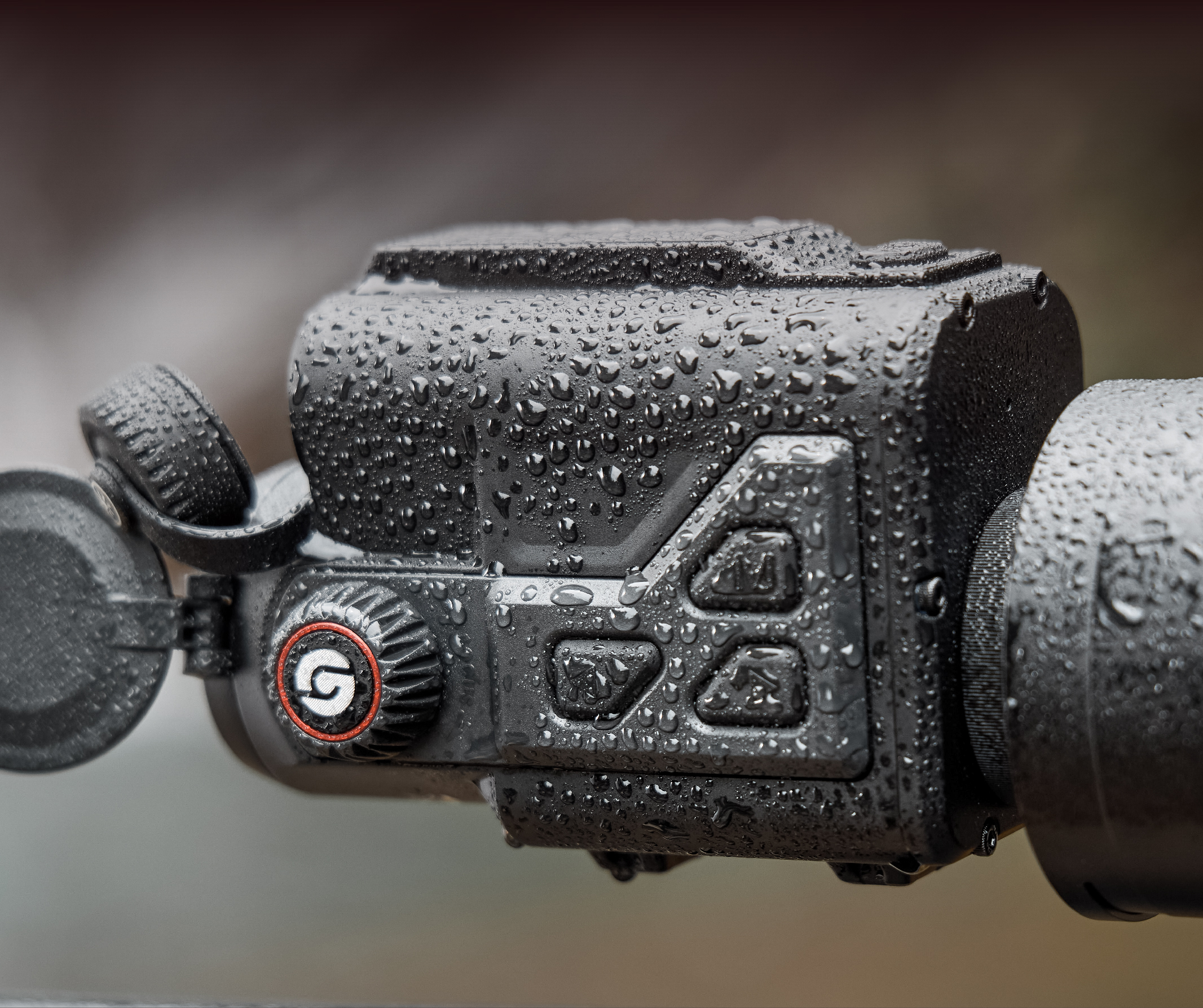

IP68 submersion waterproof
The high protective features of IP68 encapsulation, 2-meter drop resistance, and 1000G/ms shock resistance, support your outdoor adventures in rain, fog, and other harsh environments.
-
-
Compact design, lightweight and portable
TB LRF Series integrated the easy-to-use features within a pocket-sized magnesium alloy housing, compact and rugged, portable and powerful.
-



Technical Parameters
Model
TB630 LRF
ADD TO COMPARE
Sensor | ||||
---|---|---|---|---|
Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
Resolution | 640×512@12μm | |||
NETD | 20mK | |||
Frame rate | 50Hz |
Lens | ||||
---|---|---|---|---|
Objective lens | 35mm, F1.0 | |||
Field of view | 12.5°×10.0° | |||
FOV m@100m | 22×17 | |||
Magnification | 1x | |||
Detection range | 1800m/1950yd |
Display | ||||
---|---|---|---|---|
Display type | 0.39'' AMOLED 1920×1080 | |||
Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
Eyepiece | Eye relief: 20mm; Zoom: 9.5x |
Hardware | ||||
---|---|---|---|---|
Laser rangefinder | 1000m/1090yd | |||
WIFI | 2.4G, 5G | |||
Interface | USB Type-C (Power supply/USB2.0) | |||
Others | Microphone, Bluetooth |
System | ||||
---|---|---|---|---|
Recording function | Photo/Video (Audio recording included) | |||
Memory capacity | 64GB |
Power | ||||
---|---|---|---|---|
Battery type | Single, replaceable 18650 battery | |||
Operating time | 6 hours |
Environmental | ||||
---|---|---|---|---|
Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
Shock | 1000G at 1ms half sine pulse (as per IEC60068-2-27) | |||
Encapsulation | IP68 |
Physical | ||||
---|---|---|---|---|
Weight (g/oz) | 447/15.77 | |||
Size (mm/in) | 130×80×79/5.12×3.15×3.11 | |||
Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
Optional | 18650 battery, Bluetooth remote control, Cover ring adapter |
