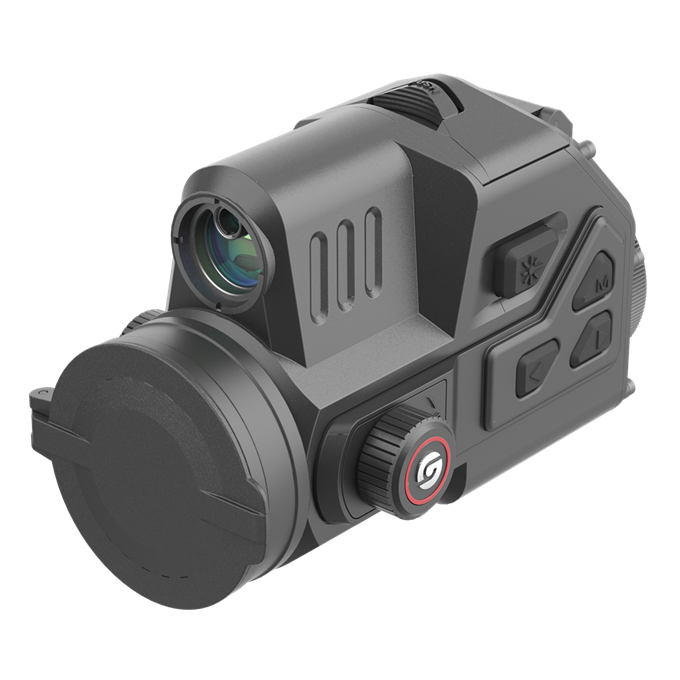

TB630LP

Thermal Imaging Attachment

After an in-depth hardware upgrade and software optimization, the TB LRF Pro Series combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,000 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording after each shot, etc.

NETD20mK

Display1920x1080

Laser rangefinder1000m

EncapsulationIP68

  • 6671260a25fe4.png
  • 6671260a262c0.png
  • ZG31A-1207.1584_fuben-280.png
  • 6671260a2692e.png
  • 6671260a26c36.png
  • 6671260a26f3a.png

banner_TB LP.jpg
  • 12um infrared detector

    TB LRF Pro Series adapts the high-sensitive 12um infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.

    • 6671260a276cd.jpg
  • 1000m laser rangefinder

    The built-in LRF module provides a long laser rangefinder up to 1000m, enabling users to detect and locate the targets quickly and precisely.



    • TBLP-xiangqingye-11.jpg
  • FuII-HD 1920x1080 AMOLED display

    TB LRF Pro Series is equipped with a 0.39" AMOLED 1920x1080 display screen, presenting a vivid image with more details for users.



    • TBLP-xiangqingye-12.jpg

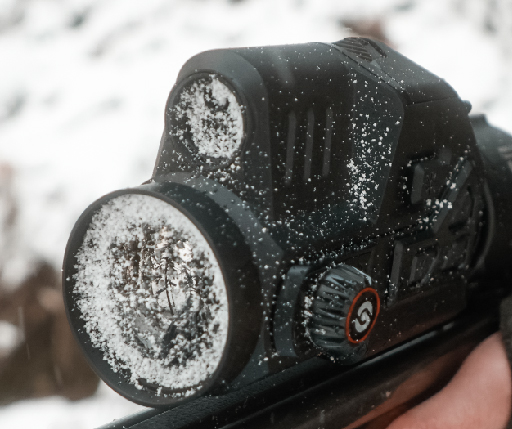

  • IP68 dustproot & waterproof

    Compact and rugged, portable and powerful, the TB LRF Pro Series shares the high protective features of lP68, to support your outdoor adventures in the harsh environment.

    • TBLP-xiangqingye-13.jpg

Technical Parameters

Model

TB630LP

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm, F1.0
Field of view 12.5°×10.0°
FOV m@100m 22×17
Magnification 1x
Detection range 1800m/1950yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Zoom: 9.5x
Hardware
Laser rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 9 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 1000G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Physical
Weight (g/oz) 561/19.79
Size (mm/in) 161×89×97/6.34×3.50×3.82
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
