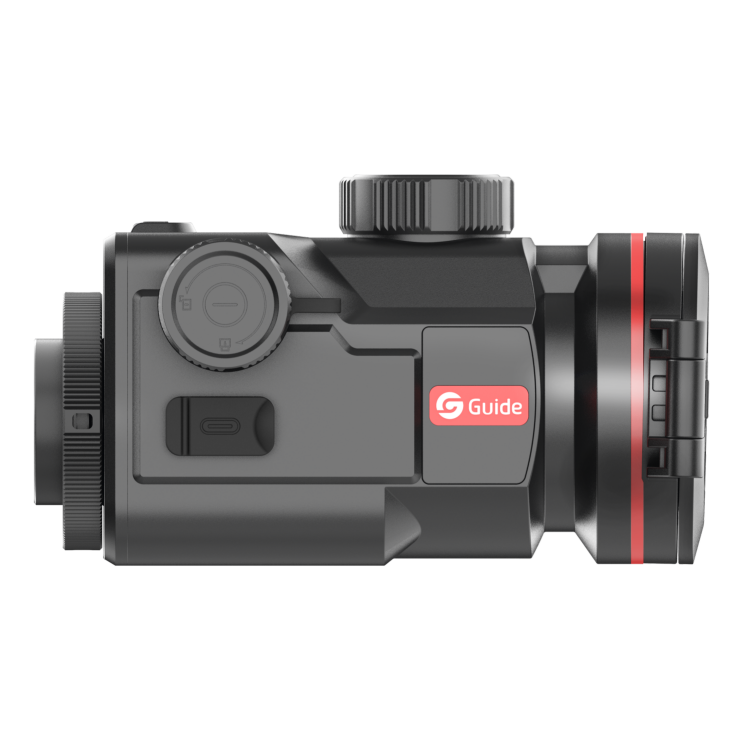

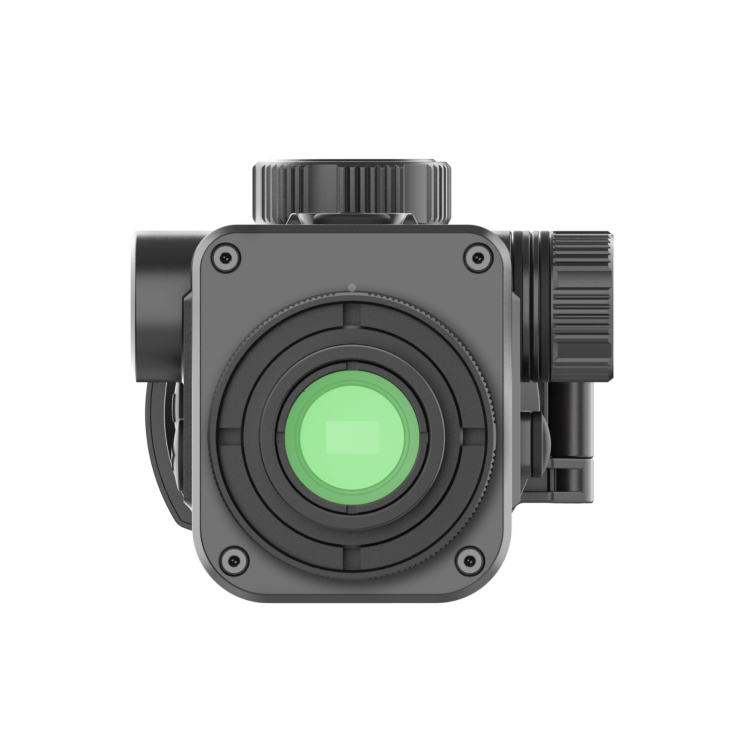

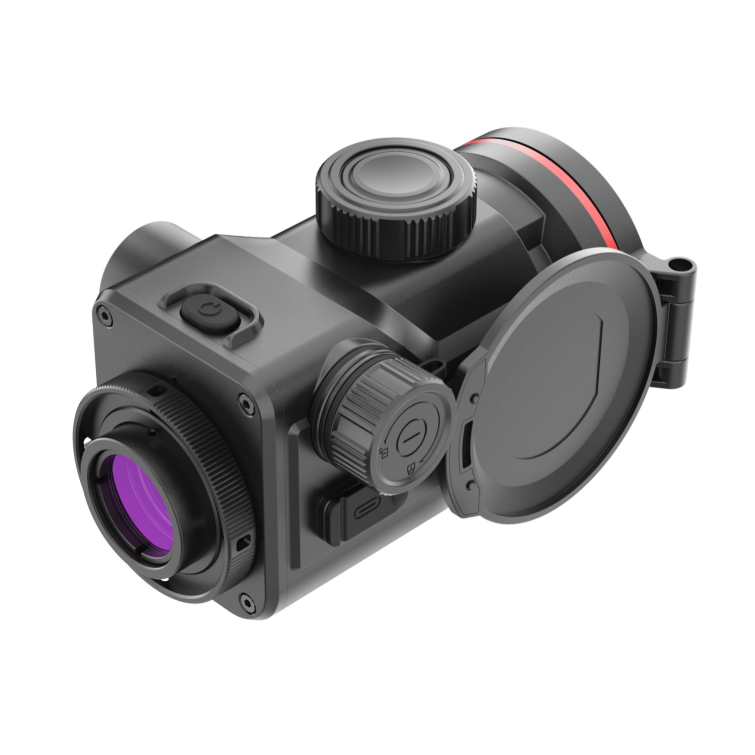

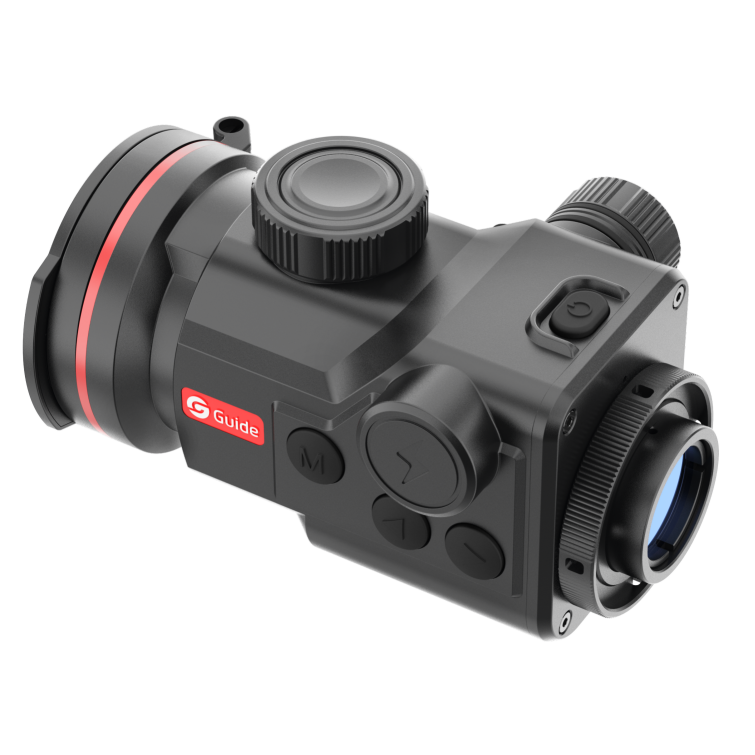

TB650P 2.0
Clip-on Thermal Imaging Attachment
The TB 2.0 Series is a thermal clip-on tailored for hunting. It brings precision in silence while integrating multiple intelligent features into a compact, lightweight housing weighing under 490g: G-Zero shutterless technology, an in-lens LRF, the Hyper-light image enhancement algorithm, and the standard replaceable 18650 battery. It delivers unmatched downrange accuracy and exceptional handling convenience in the field.
640×512@12μmIR Resolution
18mKNETD
0.39'' 1920×1080AMOLED Display
1500mLaser Range
ADD TO COMPARE
-

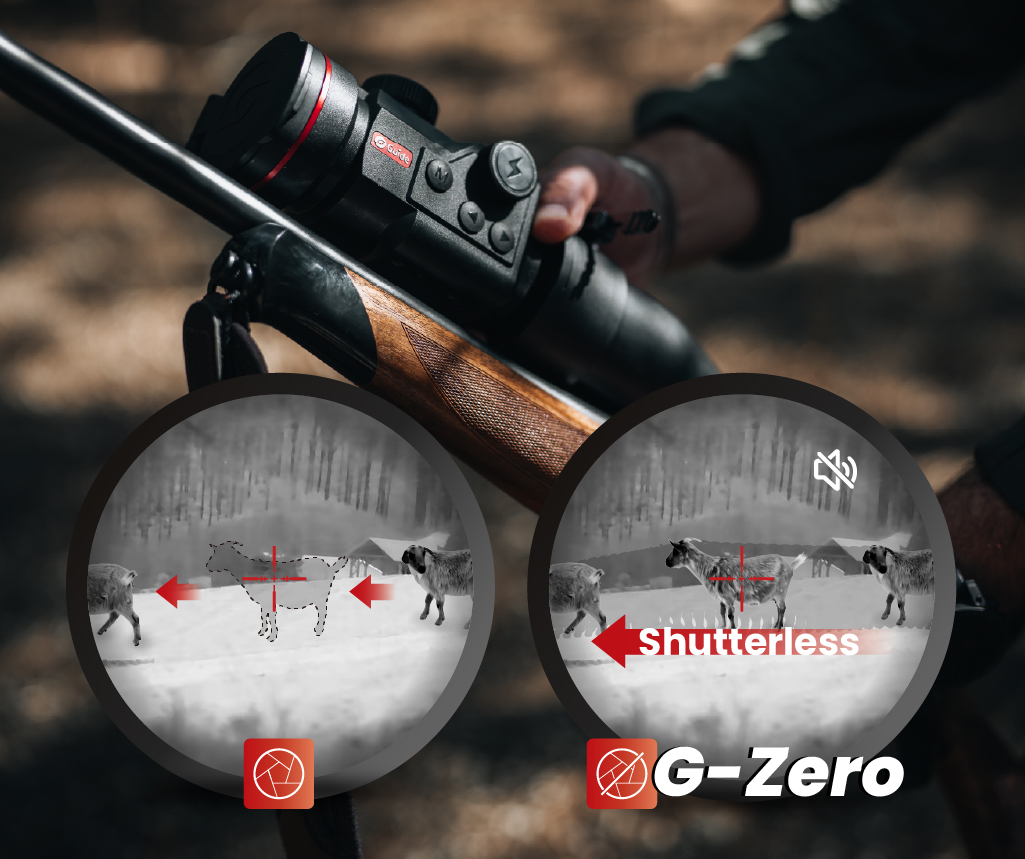

Zero Shutter True Shutterless
G-Zero Shutterless Design brings a true zero-shutter experience during startup, eliminating image freezing that could cause missed targets or critical moments while aiming. It also reduces shutter calibration noise, ensuring silent, uninterrupted operation.
Note: The shutter module has been retained to ensure high image quality during startup and under significant temperature variations.
-
-
Hyper-Light Algorithm Smarter Clarity
The AI powered Hyper-light algorithm, paired with a high-sensitivity thermal detector, delivers top-tier clarity with fine details, reduced noise, and optimized contrast for long-range observation.
-
-

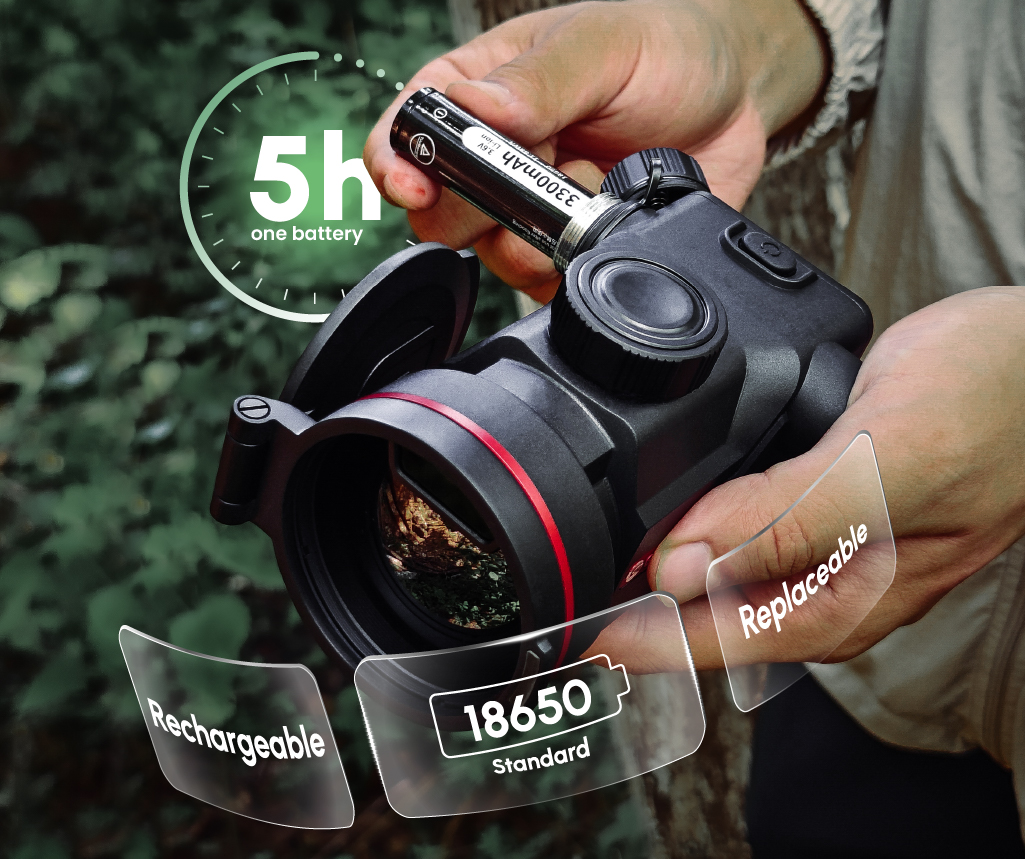

Standard 18650 Extended Runtime
For user convenience, the TB 2.0 Series uses a standard battery that’s easy to purchase, replace, and recharge. Each battery lasts up to 5 hours and is compatible with other Guide devices. The low-power design reduces power consumption, ensuring extended runtime for full hunting sessions.
-
-

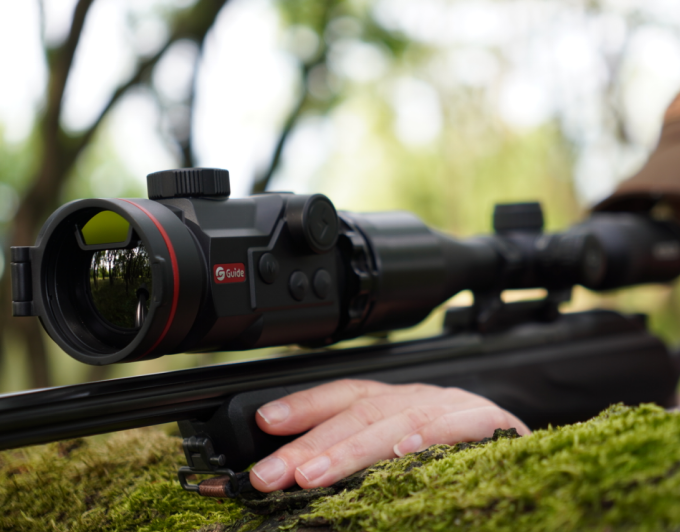

Ultra-Precise Zeroing 15x Optics Ready
The TB 2.0 Series offers superior zeroing accuracy with ultra-precise 1.22 cm@100 m click adjustments. Compatible with daylight optics up to 15x magnification, it delivers exceptional shot-to-shot precision.
-
-

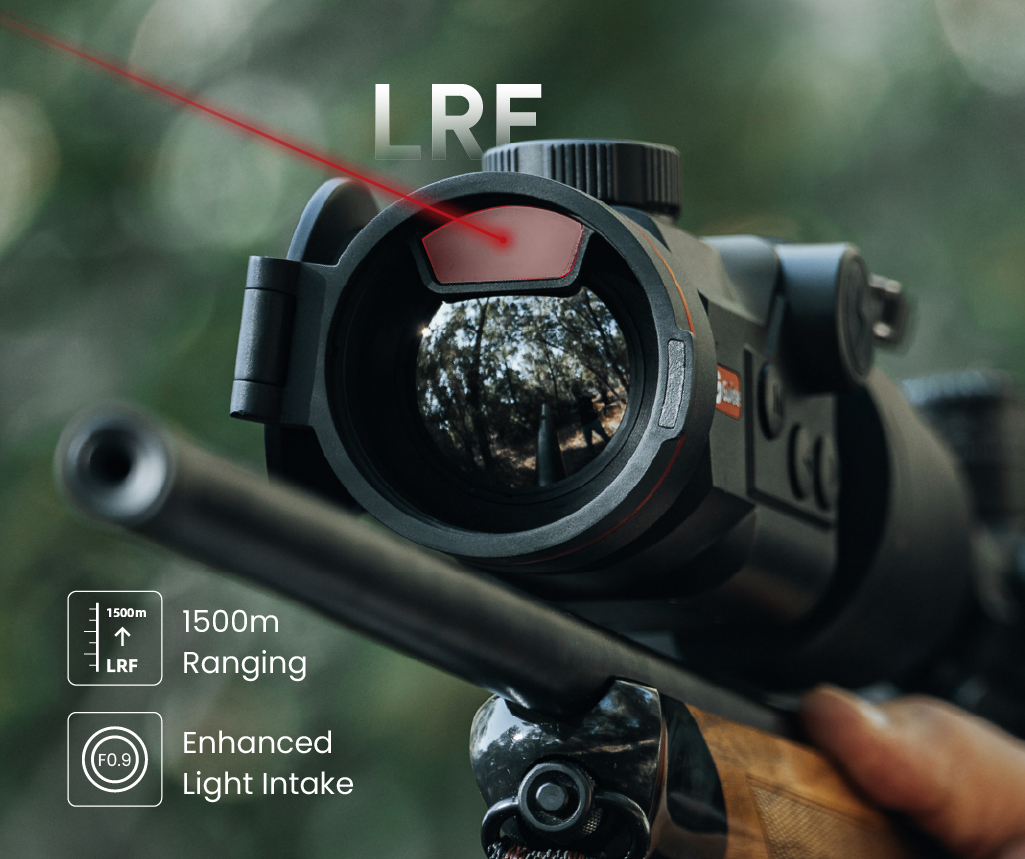

LRF in Lens One Shot, One Hit
By integrating the laser rangefinder into the objective lens, TB650P 2.0 minimizes parallax error and reduces overall device size - elevating ranging accuracy for precision shooting or ballistic calculations at any distance.
-
-

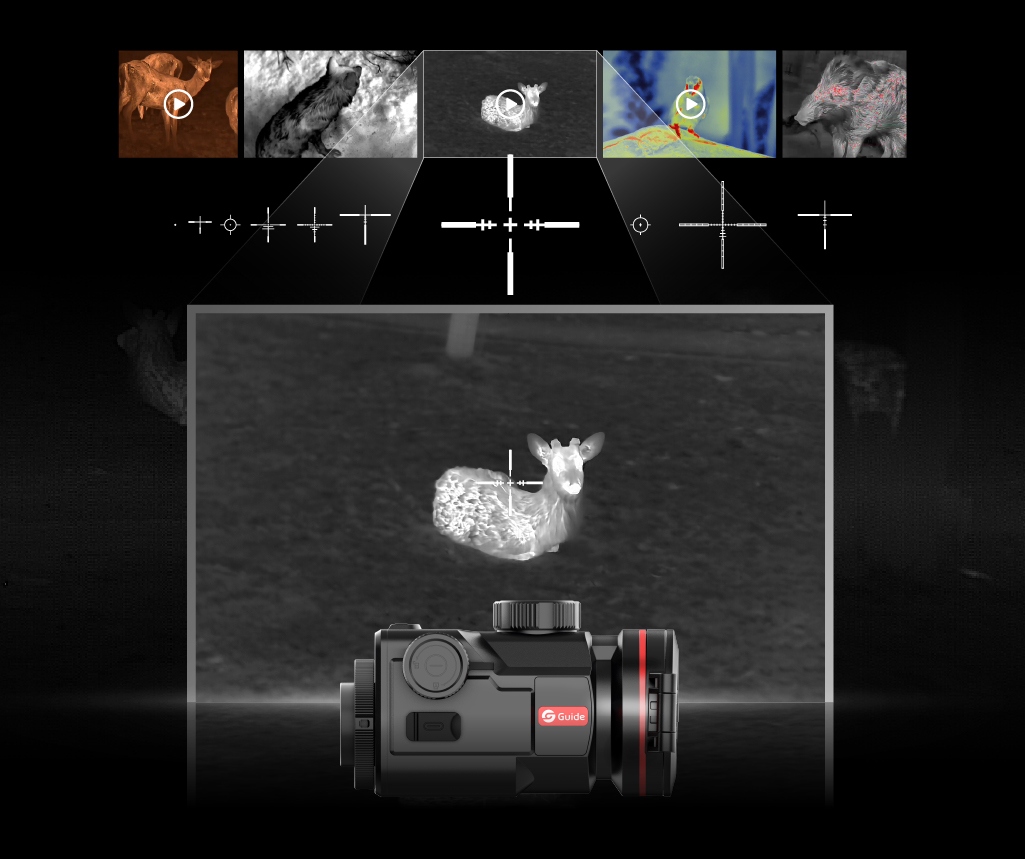

Virtual Reticle Local Album Viewing
The TB 2.0 Series can overlay a virtual reticle in recorded videos to simulate real hunting scenarios, delivering an authentic and immersive experience. Its local album allows instant playback, sharing, and analysis of recorded photos/videos directly on the device.
-
-

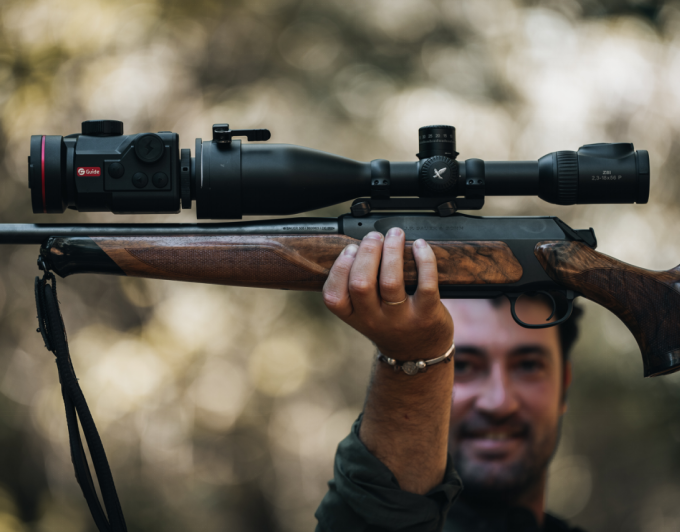

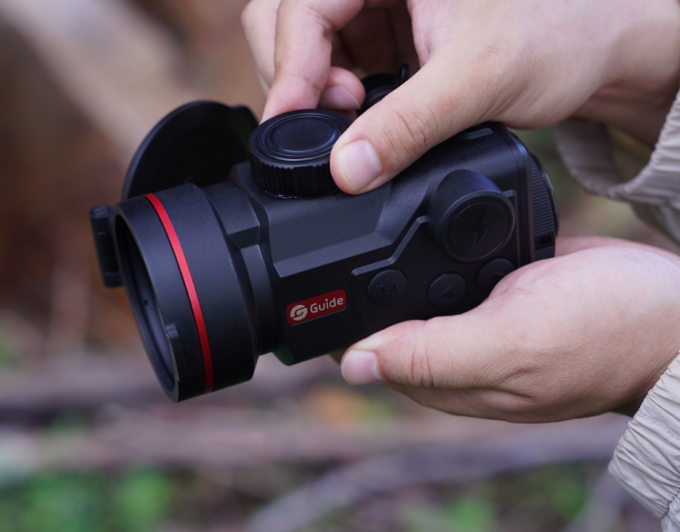

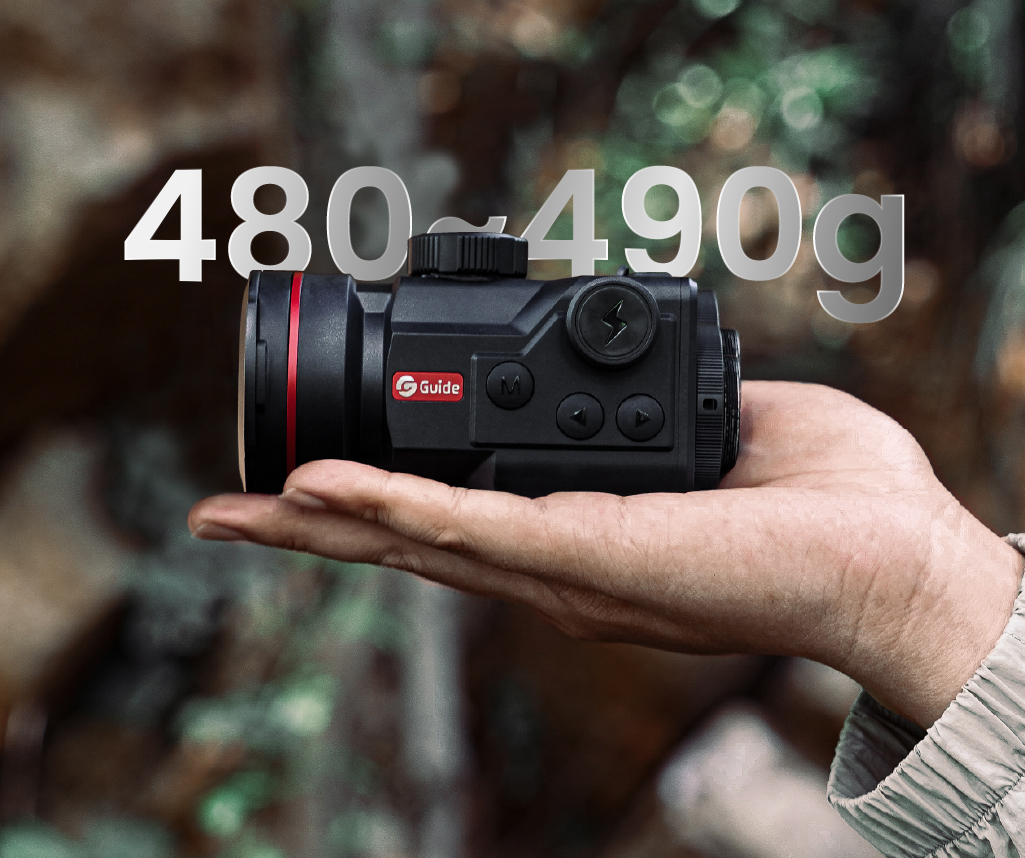

Lightweight. Balanced Comfortable Handling
Weighing only 480~490g, the palm-sized device features a compact housing with smaller dimensions. Its well-balanced design ensures even weight distribution when mounted on a daylight scope, making the hunting gear easier to handle and more comfortable to use.
-
Media Gallery
Technical Parameters
Model
TB650P 2.0
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F0.9 | |||
| Field of view | 8.8°×6.6° | |||
| FOV m@100m | 15×11 | |||
| Magnification | 1x | |||
| Detection range | 2600m/2800yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, Replaceable 18650 Battery | |||
| Operating time | 5 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 490/17.28 | |||
| Size (mm/in) | 144×86×79/5.67×3.39×3.11 | |||
| Standard | Device, 18650 Battery ×2, Battery Charger, USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, Adapter Ring, 18650 Battery | |||
