O435CS

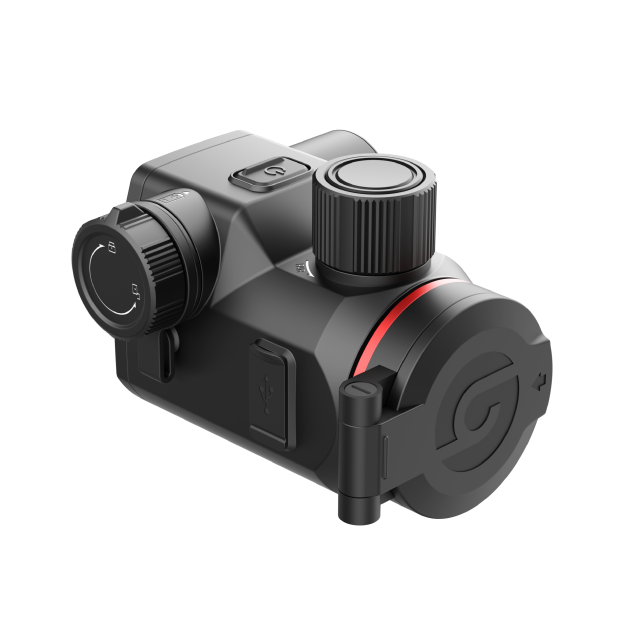

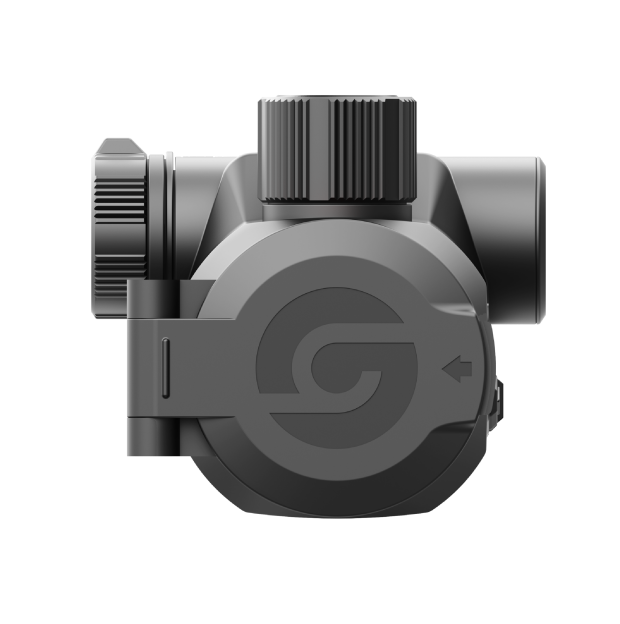

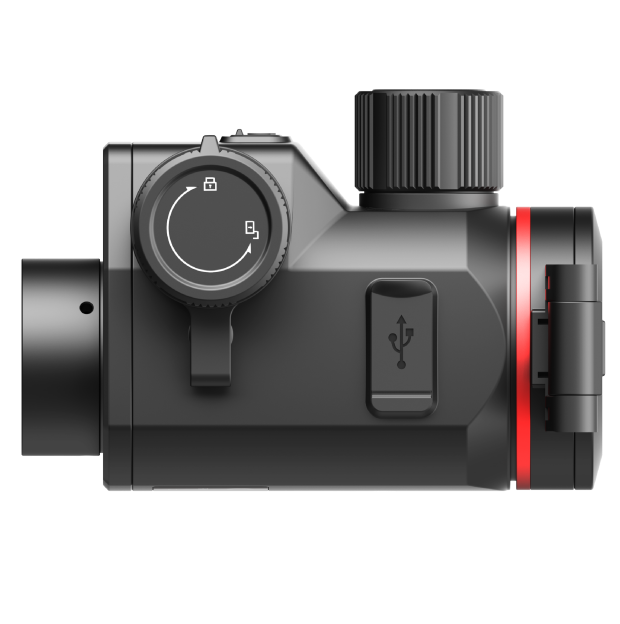

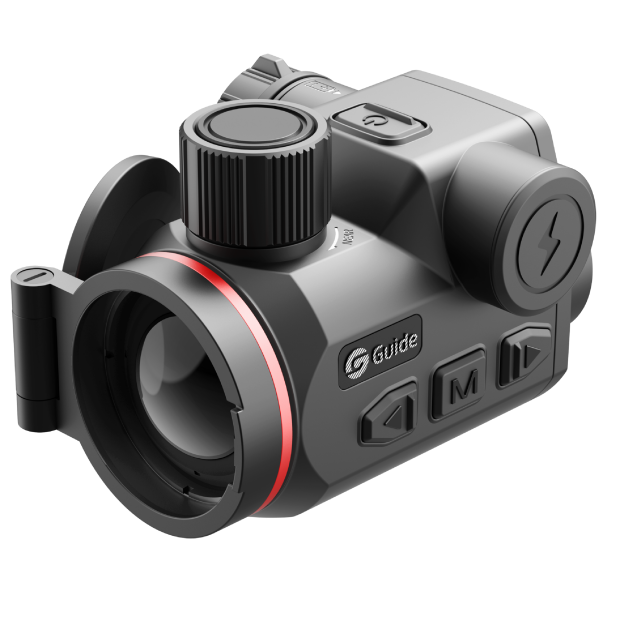

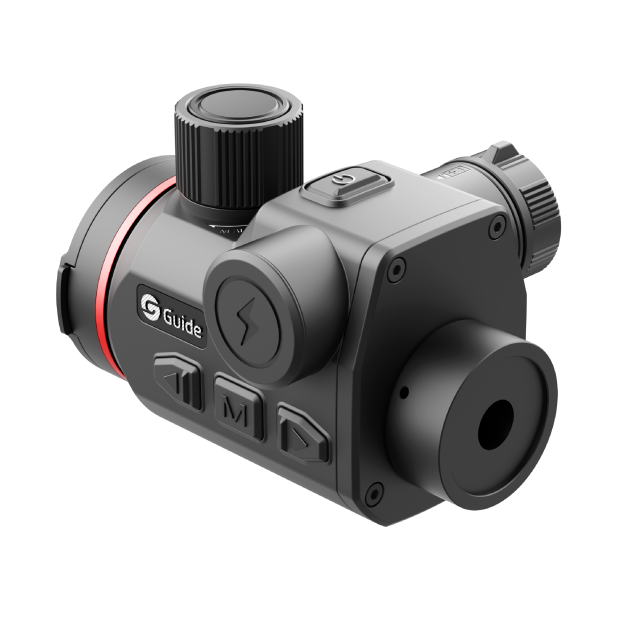

Clip-on Thermal Imaging Attachment

The Orion C Series is a compact thermal imaging attachment for professional use, combining lightweight construction with dependable performance. Powered by the next-generation APEXVISION infrared imaging system, it delivers clear and stable thermal imagery for confident target identification. With a balanced, streamlined design and robust build quality, the Orion C Series is well suited for extended use across demanding environments.

400×300@12μmIR Resolution

15mKNETD

0.39'' 1024×768AMOLED Display

35mm, F0.9Focal length

Product Manual

Download the APP

ADD TO COMPARE

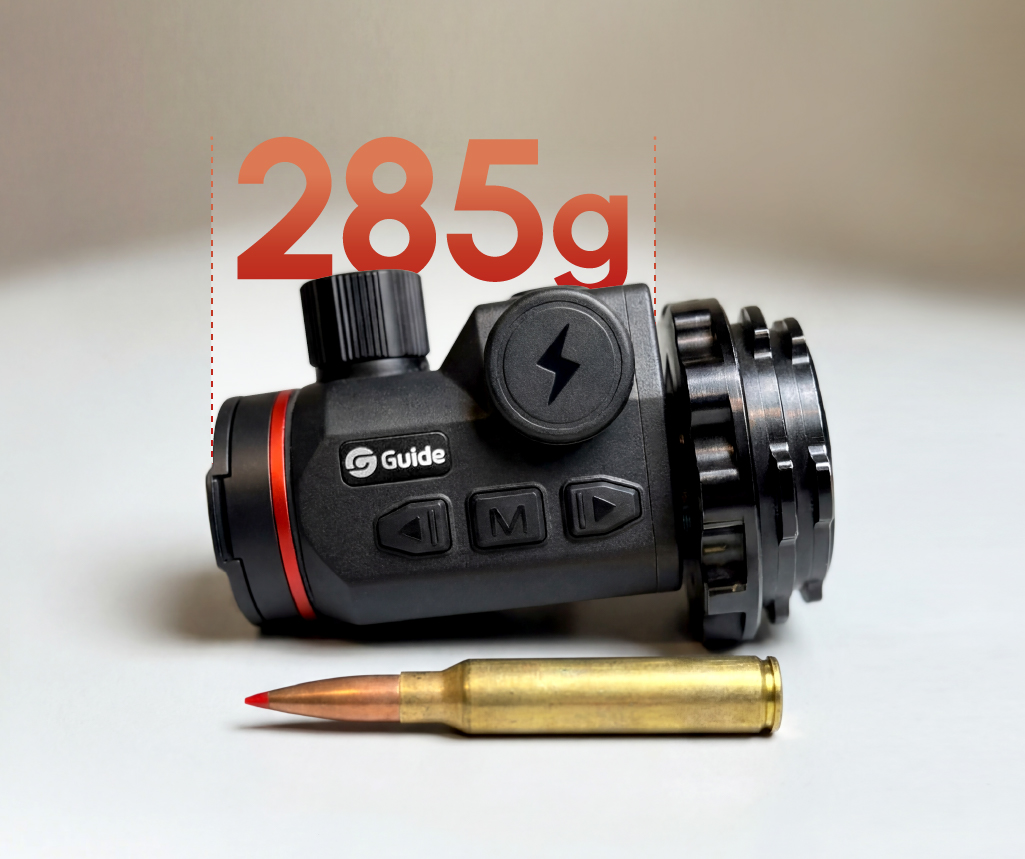

Ultra-light & compact Every gram matters

The Orion C is engineered with extreme weight and size optimization, making it one of the lightest 640×512 thermal clip-ons on the market.
Its compact design reduces overall setup weight and improves balance, delivering a more comfortable and stable hunting experience.
ApexVision technology Ultra-clarity

Guide outdoor’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
3-Second fast startup Ready when it counts

The Orion C boots up in just 3 seconds, allowing instant readiness during fast movement or sudden encounters in the field.

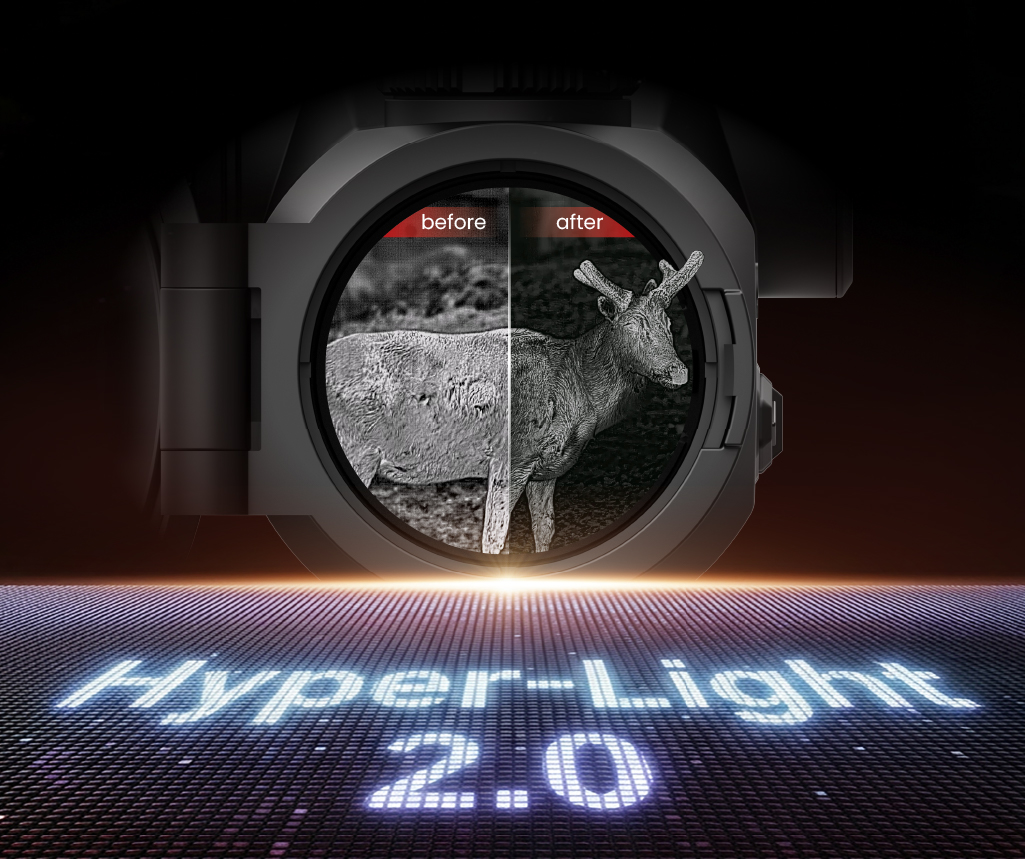

AI-powered algorithm Level up visual clarity

The upgraded Hyper-Light 2.0 AI algorithm improves contrast, brightness, detail enhancement, target highlighting, and tone balance, making long-range observation easier and more efficient.

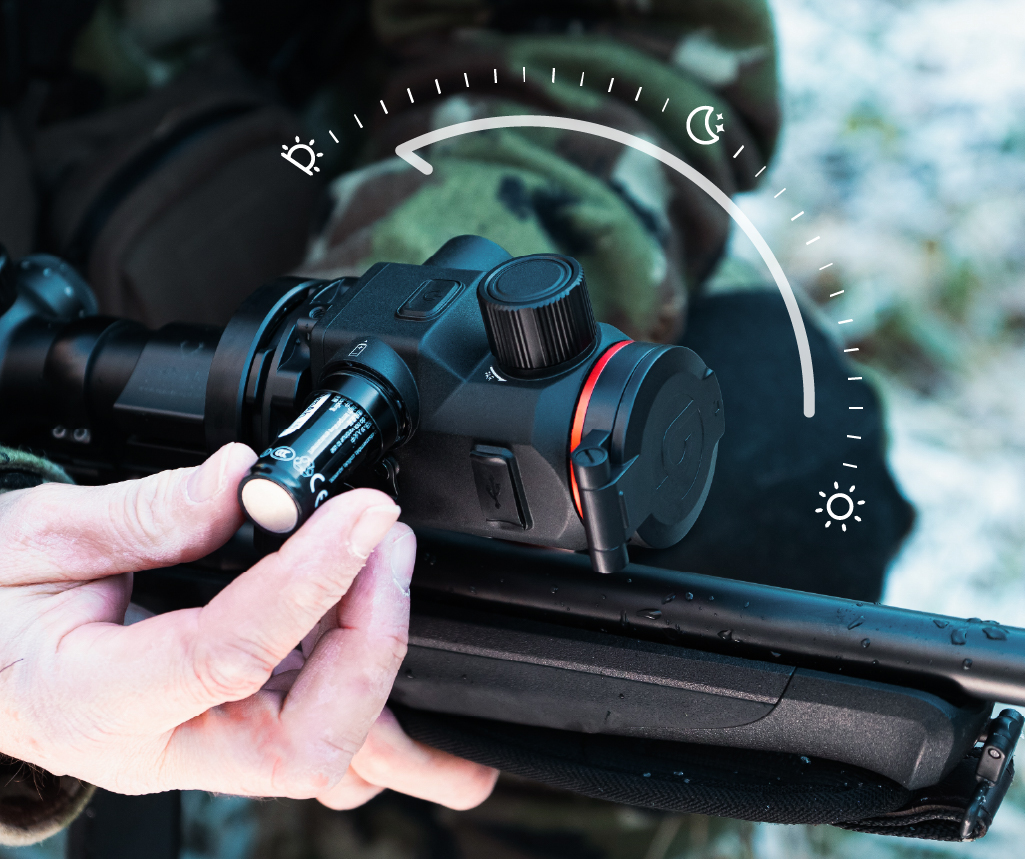

Ultra-low power consumption All-night hunting

Optimized power consumption delivers extended runtime.
A single 18500 battery provides up to 6.5 hours, while two batteries easily support an entire night of hunting.

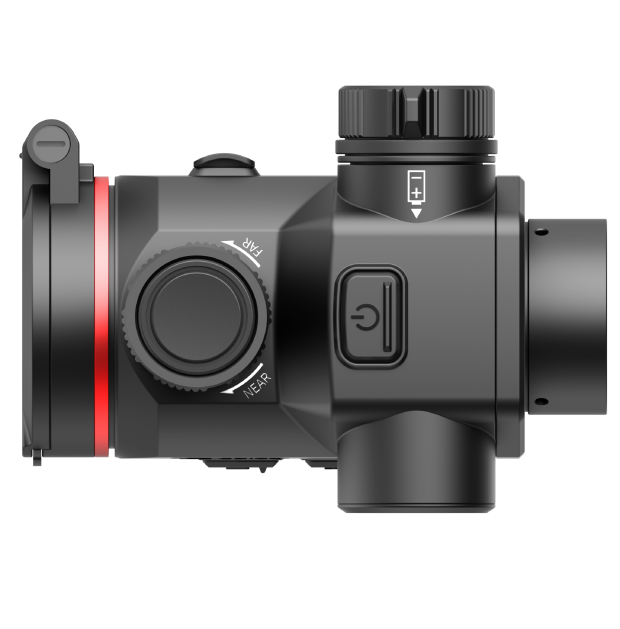

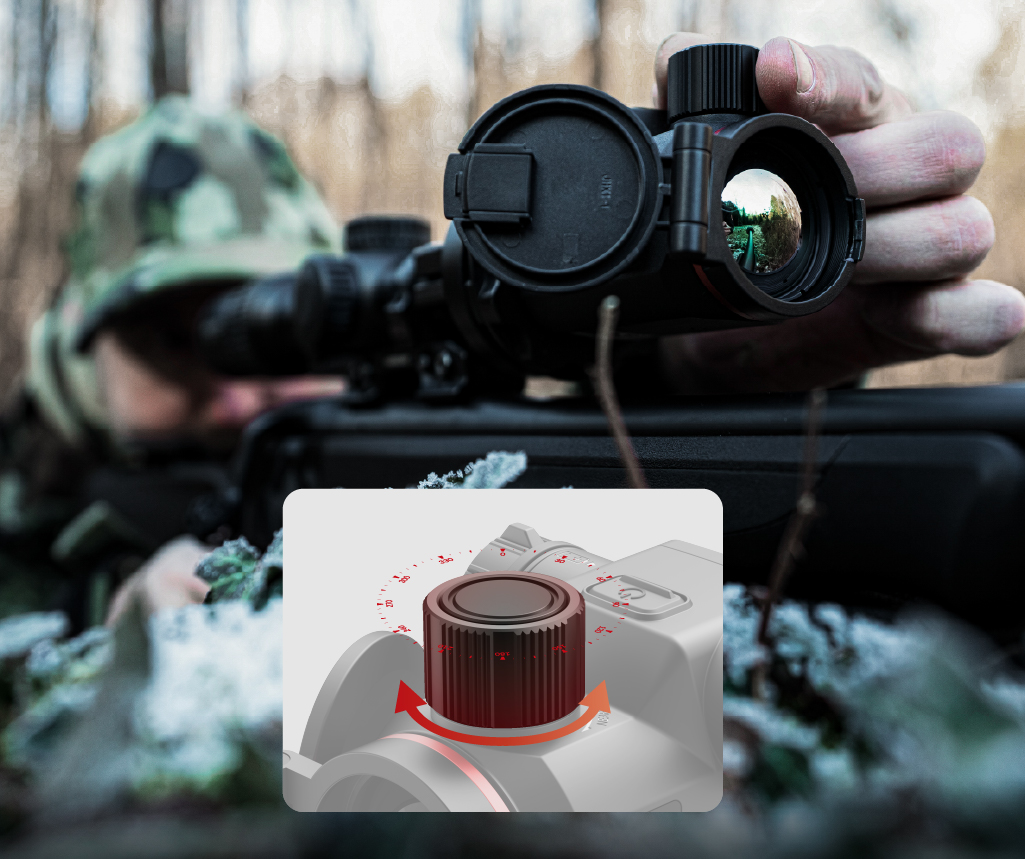

Focus with absolute precision Smooth control with gloves on

The optimized focusing knob provides tactile mechanical feedback for smooth and accurate focusing.
The simplified button layout ensures intuitive operation in all conditions.
Stable, reliable, built for real hunting conditions

Rated to withstand recoil up to 6000 J, the Orion C remains stable and reliable even under continuous shooting.
The IP67 waterproof rating ensures dependable performance in rain, fog, and harsh outdoor environments.

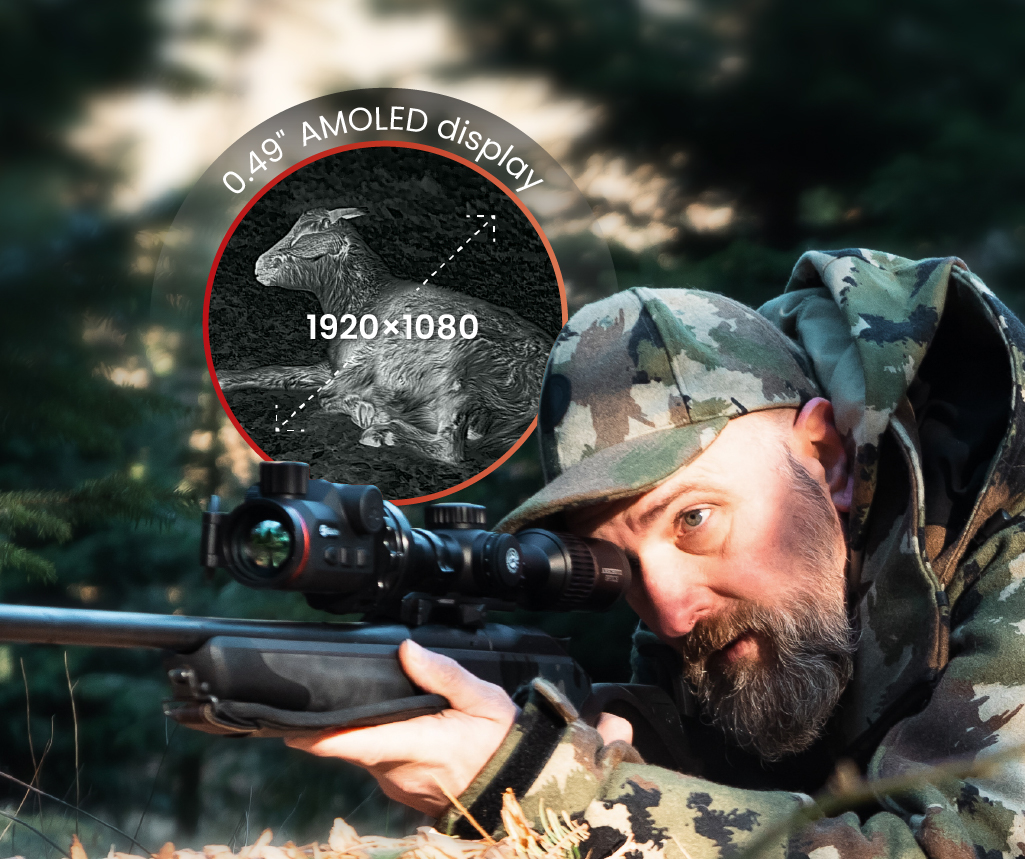

Comfortable viewing for prolonged observation

The 0.49-inch AMOLED display delivers clear, vivid images with reduced eye strain, even during prolonged nighttime observation.

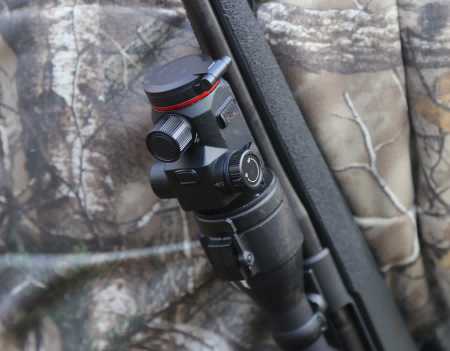

Media Gallery

Technical Parameters

Model

O435CS

ADD TO COMPARE

Sensor
Core technology	Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	400×300@12μm
NETD	15mK
Frame rate	50Hz

Lens
Objective lens	35mm, F0.9
Field of view	7.9°×5.9°
FOV m@100m	13×10
Magnification	1x
Detection range	1800m/1950yd
Focus	Manual

Display
Display type	0.39'' AMOLED 1024×768
Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece	Eye relief: 20mm

Hardware
Interface	USB-C (Power supply)

Power
Battery type	Single, Replaceable 18500 Battery
Operating time	8 hours

Environmental
Operating temp.	-20°C to 50°C / -4°F to +122°F
Shock	6000J
Encapsulation	IP67

Physical
Weight (g/oz)	285/10.05
Size (mm/in)	99×73×68/3.90×2.87×2.67
Standard	Device, Carry Bag, Accessory Bag, Lint-Free Cloth, Battery Charger, 18500 Battery ×2, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional	Adapter Ring, 18500 Battery
