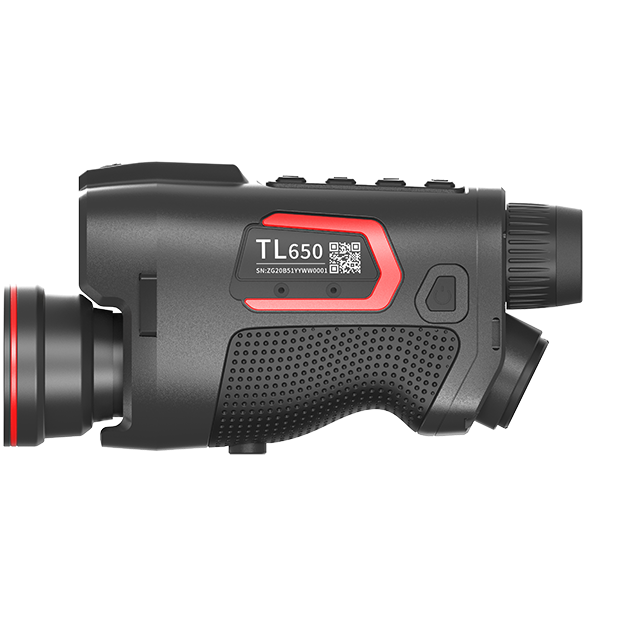

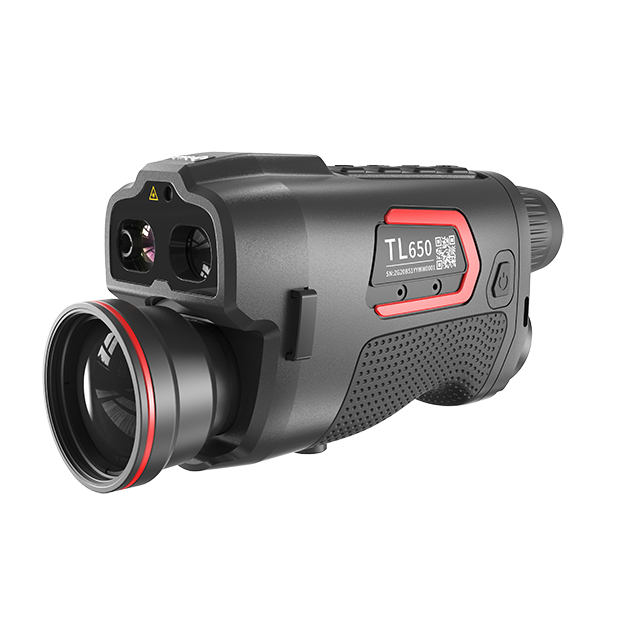

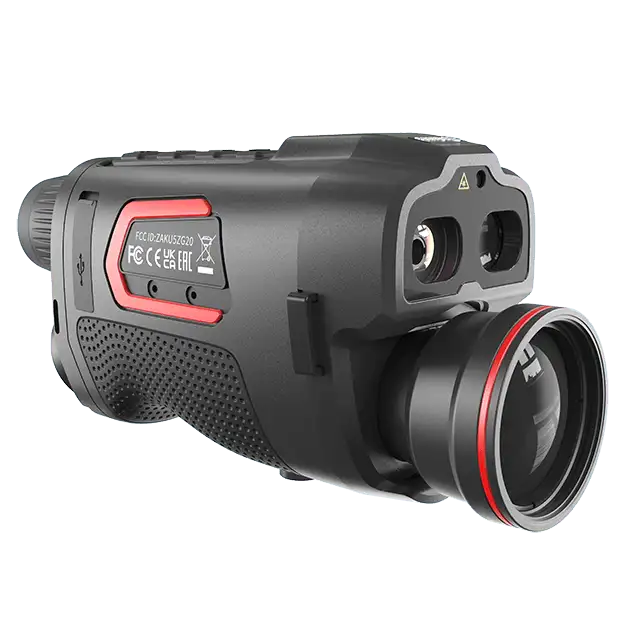

TL650

Multispectral Fusion Thermal Monocular

The TL Series is the first multispectral fusion thermal monocular of Guide Outdoor whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12μm high-end thermal sensor, 1920×1080 CMOS sensor and 1920×1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.

Day & Night UseThermal+Digital

640×480@12μmIR Resolution

1920×1080 AMOLED display

GPS Target Positioning

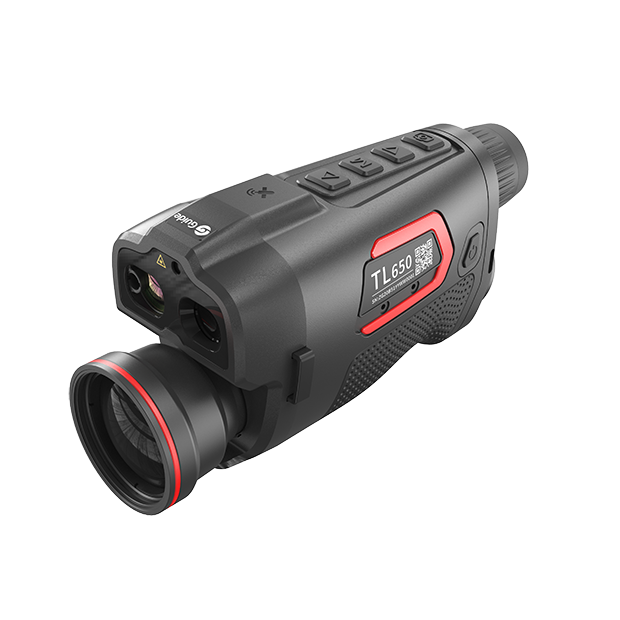

  • TL650-1.png
  • TL650-2.png
  • TL650-3.png

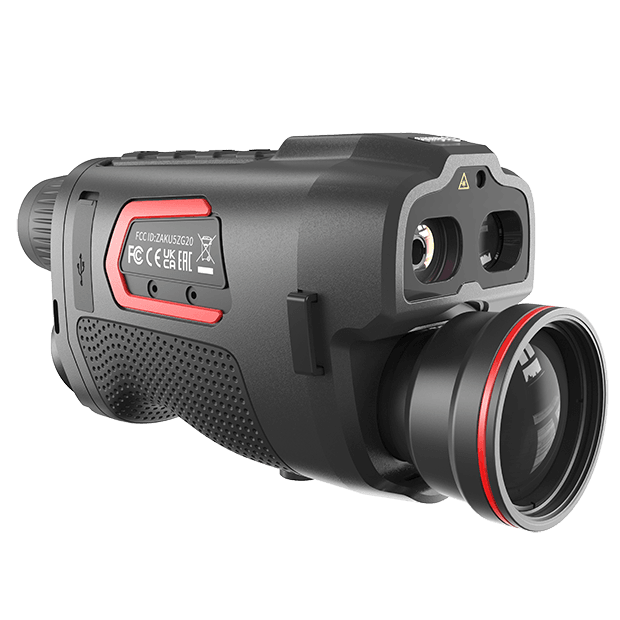

  • 4-563.png

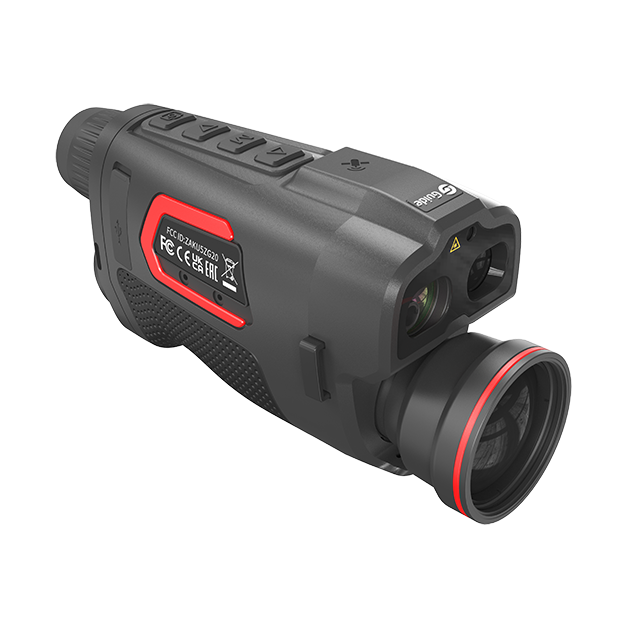

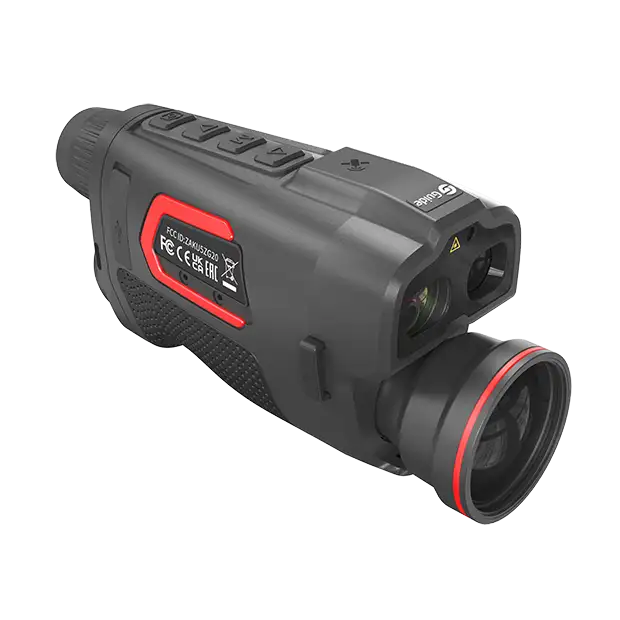

  • 5-511.png

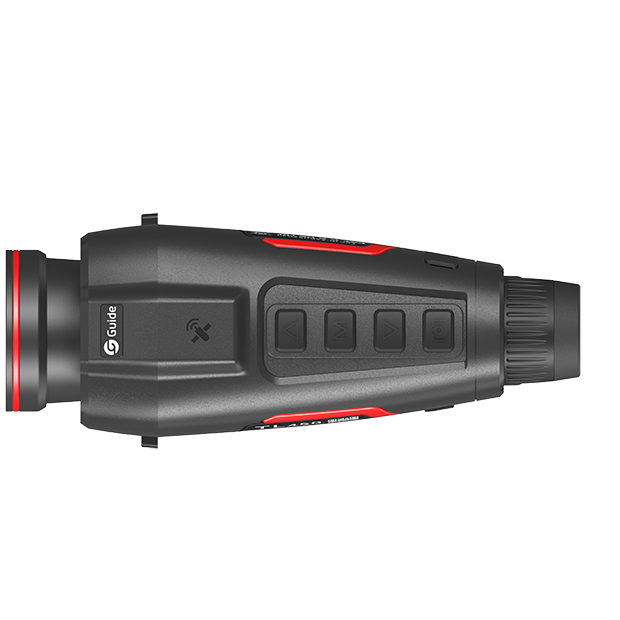

  • 6-485.png

  • All-in-one Design for All-day and All-weather Observation

    With integrated thermal and night vision, considering both the daytime and the nighttime, for quick search and target identification.

    • maidiantu-01yingwen.jpg

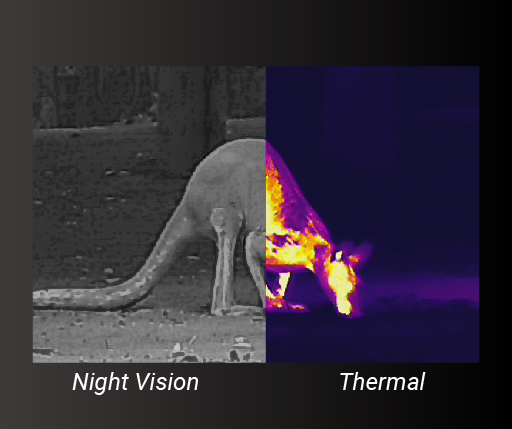

  • Integrated HD Thermal Detector and Digital Sensor

    High-quality thermal imaging and night vision with clear distinctions allow for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape, day and night.



    • maidiantu-02(1).jpg

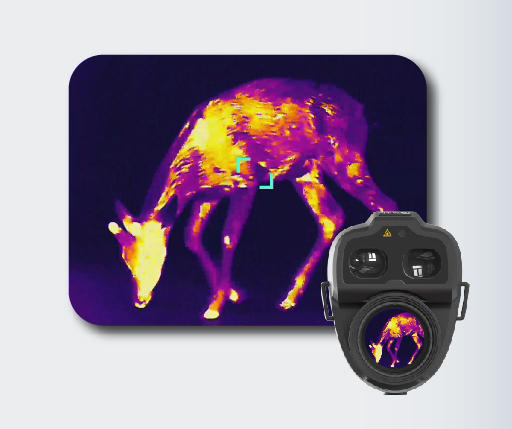

  • 1920×1080 AMOLED Display

    High resolution 0.39'' 1920×1080 AMOLED is capable of lower power consumption, wider viewing angle, and richer color, providing a better observation details.



    • maidiantu-03.jpg
  • Built-in Precision Laser Rangefinder

    The integrated high-precision laser range module can achieve 600m accurate laser ranging, allowing for the precise distance information of targets without calibration.

    • maidiantu-04.jpg

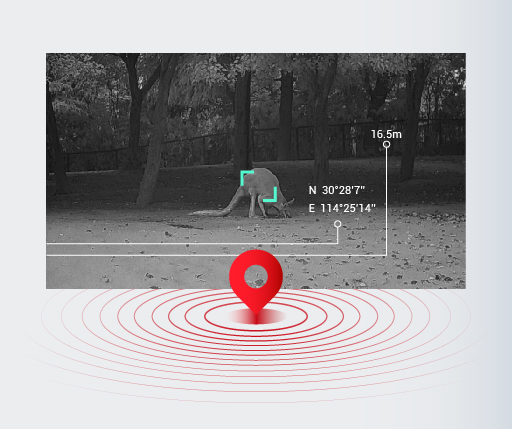

  • Built-in GPS for Target Positioning

    GPS systems display the target latitude and longitude for accurate positioning, essential for hunters in navigation, safety, mapping, game tracking, and providing valuable environmental information. Integrated with a built-in laser rangefinder and gyroscope, target distance and device angle information can be obtained for quick aiming.



    • maidiantu-05.jpg

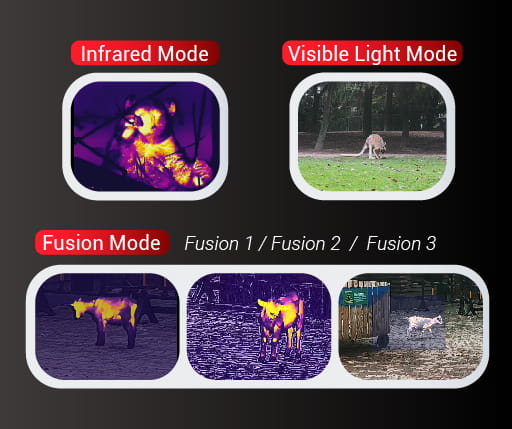

  • Combined Multispectral Viewing Modes

    You can use the TL Series in several distinct image modes including a conventional thermal monocular with the choice of 5 color palettes, a highly detailed daylight & night vision optical camera, or the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.



    • maidiantu-05yingwen.jpg

Group 1321319334.jpg image 23.jpg

Technical Parameters

Model

TL650

ADD TO COMPARE

Sensor
Type Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
Resolution Thermal: 640×480@12μm Digital: 1920×1080@4μm
NETD 30mK
Frame rate 50Hz
Lens
Objective lens Thermal: 50mm, F1.2; Digital: 17mm, F1.4
Field of view 8.7°×6.6°
FOV m@100m 15×12
Magnification 2.0x~16.0x
Detection range 2600m/2800yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes IR: White Hot, Black Hot, Red Hot, Iron Red, Blue Hot
Scene modes Visible: Day, Night, Low-light
Image modes IR, Visible, Fusion 1, Fusion 2, Fusion 3
Eyepiece Eye relief: 15 mm; Diopter: -4 to +4; Zoom: 13.8x
Hardware
Laser rangefinder 600m/650yd
WIFI 2.4G
Interface USB Type-C
Others GPS, Compass, Gyroscope, Bluetooth
System
Recording function Photo/Video
Memory capacity 64GB
Power
Battery type Single, replaceable 18650 battery
Operating time 5 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67
Physical
Weight (g/oz) 567/20.00
Size (mm/in) 190×70×90/7.48×2.76×3.54
Standard A device, Wrist strap, Battery charger, single 18650 battery, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional Bluetooth remote control, 18650 battery, Dovetail guide
