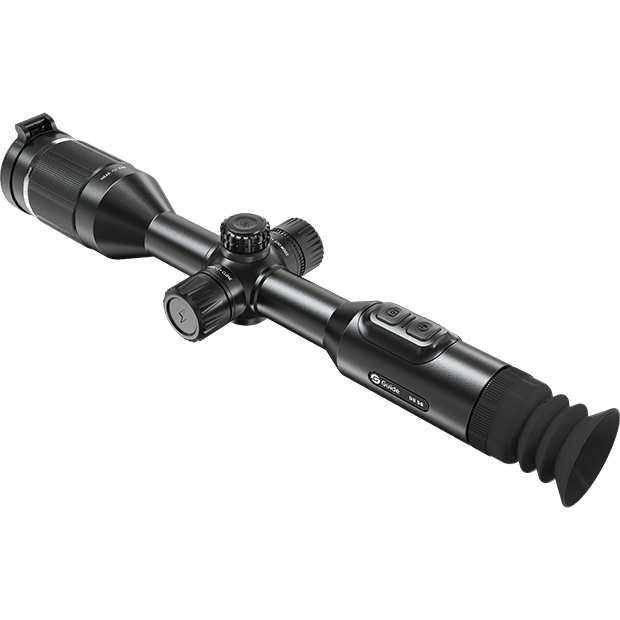

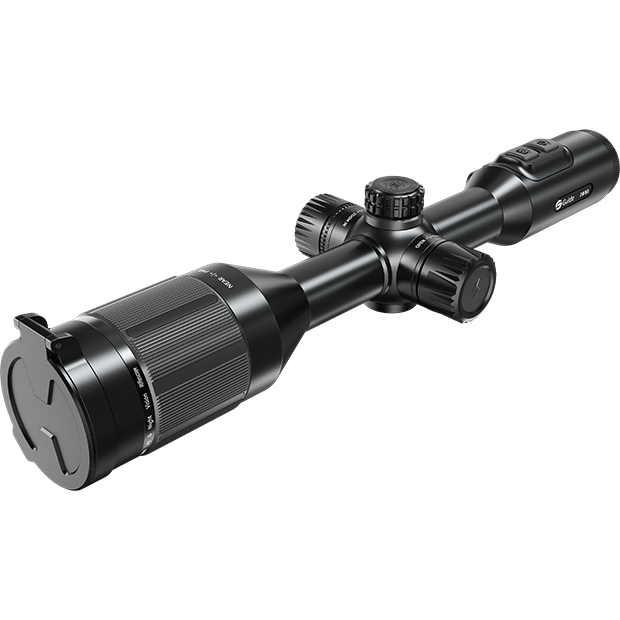

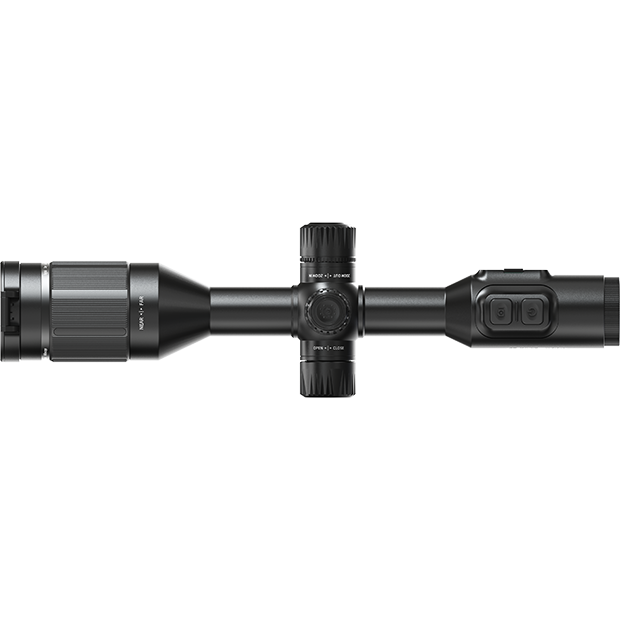

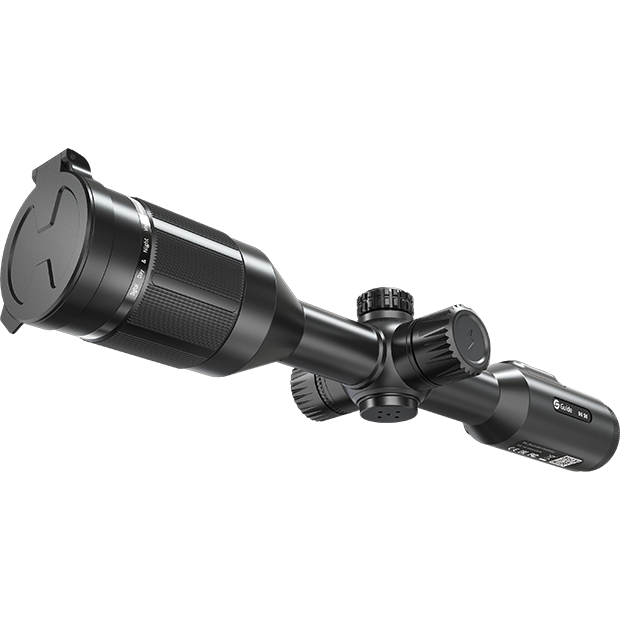

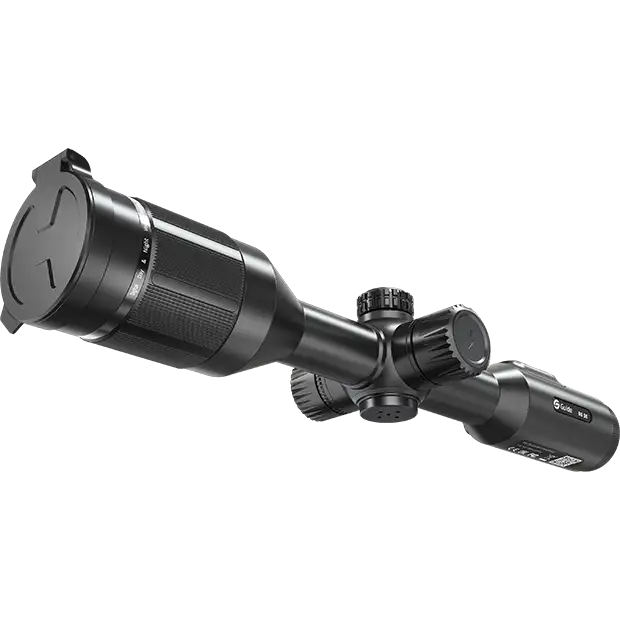

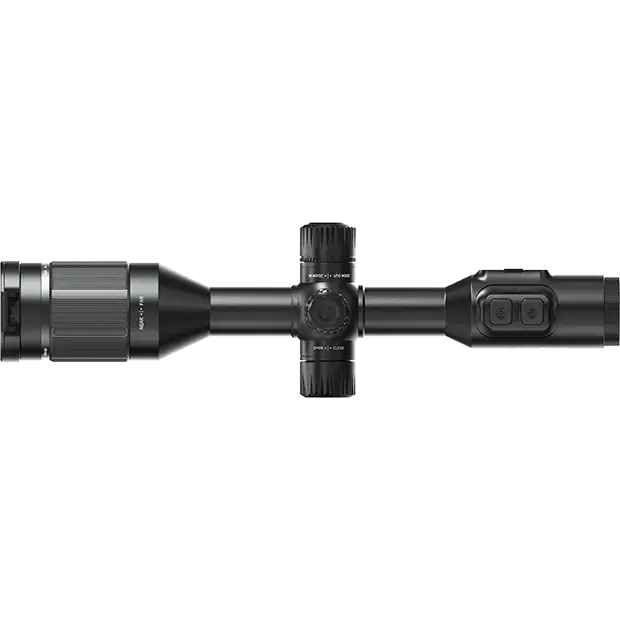

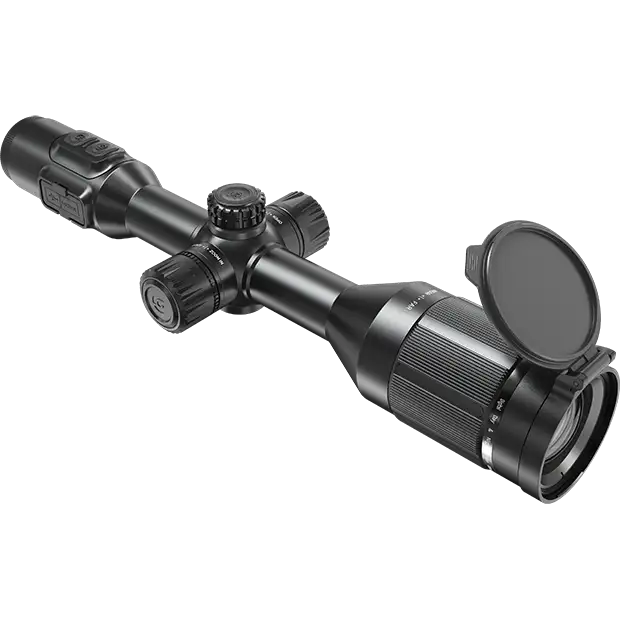

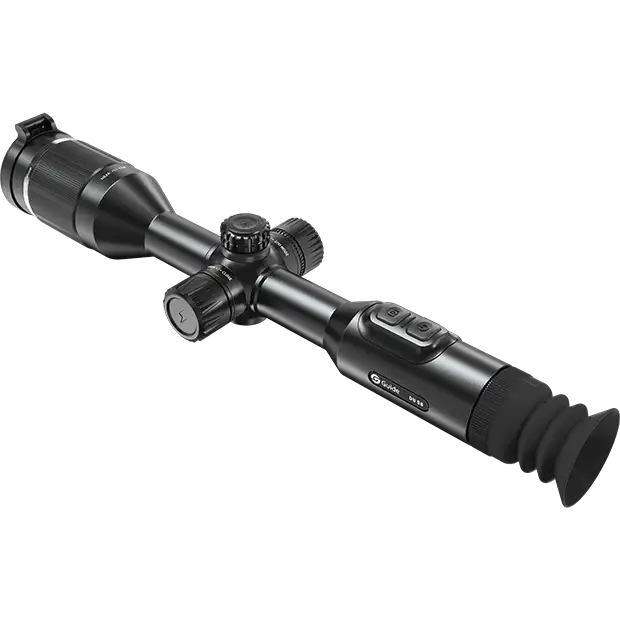

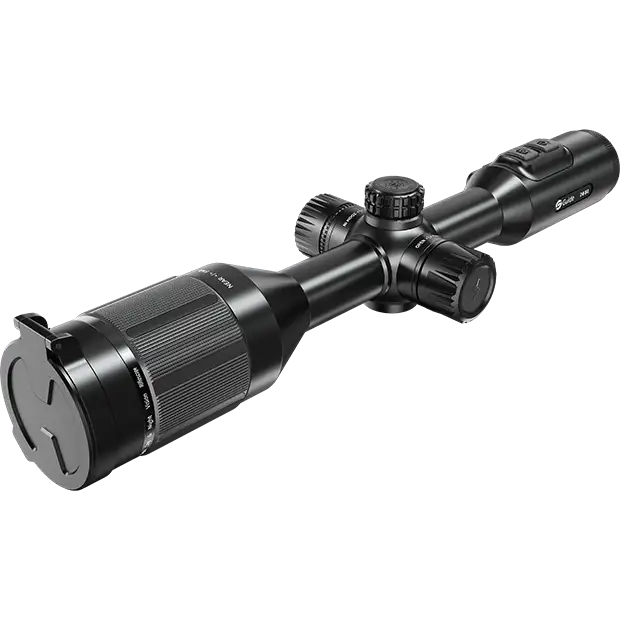

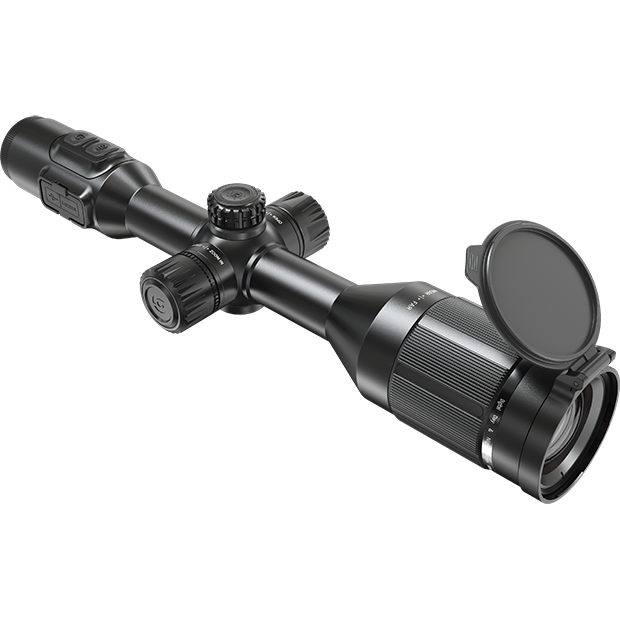

DU50
Digital Day & Night Vision Scope
Guide Outdoor DU Series is a high-performance Digital Day & Night Vision Scope designed for professional hunting. The high-sensitivity 1920x1080/4µm CMOS Sensor that offers outstanding image quality. The full-color HD 1920x1080 AMOLED display guarantees the smallest image detail with meticulous care to respect users' wishes. The advanced dual battery system provides up to 15 hours of non-stop use from day to night.
1920x1080/4µm CMOSSensor resolution
1920×1080 AMOLEDDisplay screen
15hBattery life
3.125×~25× Magnification
ADD TO COMPARE
-

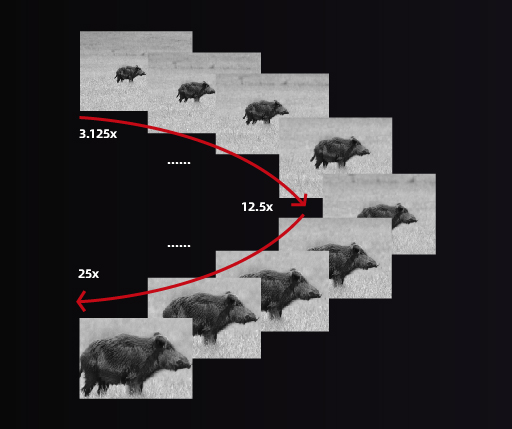

Flexible magnification from 3.125x to 25x
The base magnification of Guide DU50 scope increases eightfold – 3.125x to 25x. It makes the search more flexible and pinpoints the target more quickly while hunting.
-
-

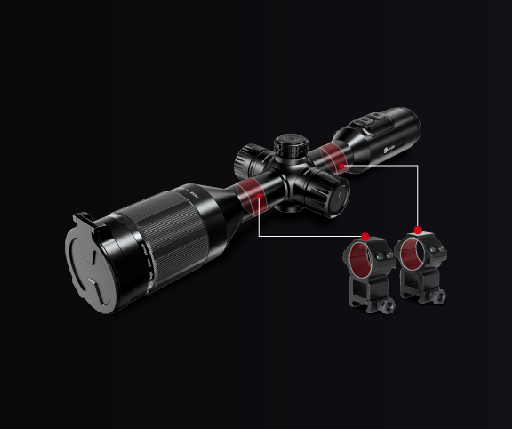

Mounting on standard 30 mm rings
Like a traditional day sight in a 30mm housing from the outside, the Guide DU50 can be mounted on other devices with flexibility.
-
-
15 Hours Super Long Battery Life
Up to 15 hours of battery life are promised with a single charge, which is sufficient for the duration of intensive usage of the scope.
-
-

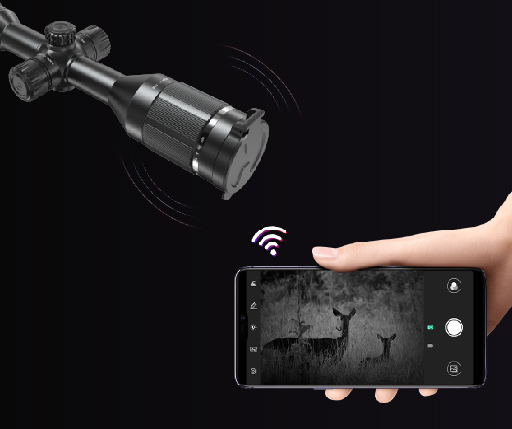

WiFi and APP Support
The built-in WiFi module connects the DU50 with an smartphone (Android or iOS ) through the Target IR mobile application, which supports real-time image transmission to the smartphone and remote control.
-
-
32 GB Storage for images and videos
The DU50 comes with larger storage capacities of 32GB for nearly 40,000 images and videos of several hours.
-
-
IP67 Protection Rating
With IP67 waterproof and dustproof rating, the Guide DU50 works in conditions of high humidity and heavy rain and protects from dust and impact.
-
Media Gallery
Technical Parameters
Model
DU50
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | CMOS | |||
| Resolution | 1920×1080@4μm | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.2 | |||
| Field of view | 9°×5.2° | |||
| FOV m@100m | 16×9 | |||
| Magnification | 3.125x~25x | |||
| Detection range | 600m/650yd (850nm); 550m/600yd (940nm) | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Scene modes | Day, Night, Low-light | |||
| Eyepiece | Eye relief: ≥ 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| IR illuminator | 850nm/940nm (Alternative) | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| Tube diameter | Standard 30 mm | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single 18650 battery (built-in) and customized battery (external) | |||
| Operating time | 15 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 980/34.57 | |||
| Size (mm/in) | 371×107×68/14.61×4.21×2.68 | |||
| Standard | Device, Lens cover, Eye mask, 5V2A adapter (US, Britain, Australia and Europe), Customized battery×2, Customized battery charger, USB Type-C cable, Micro HDMI cable, Clip×2, IR illuminator, IR illuminator bracket, Quick start guide, Warranty card | |||
| Optional | Customized battery, Bluetooth controller, Laser rangefinder, Dovetail rail | |||
