DR30

Digital Day & Night Vision Scope

The DR Series is a powerful and professional day and night vision scope with outstanding night vision capability, featuring an excellent 1920×1080@4μm CMOS sensor with a 35mm lens to create a large field of view of 12.5°×7.06° while the 1920×1080 full HD AMOLED display ensures your viewing experience. The 18650 Li-ion battery lasts up to 6 hours max depending on usage, ever worry about insufficient power during a hunting trip. Elevate your vision with the DR Series!

12.52°x7.06°Ultra large FOV

1920×1080OLED AMOLED

OTAupgrade

1920x1080@4µm HD sensor

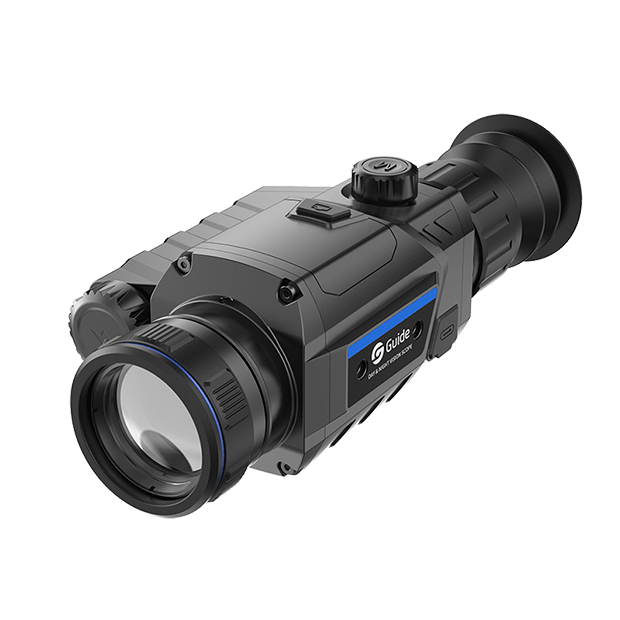

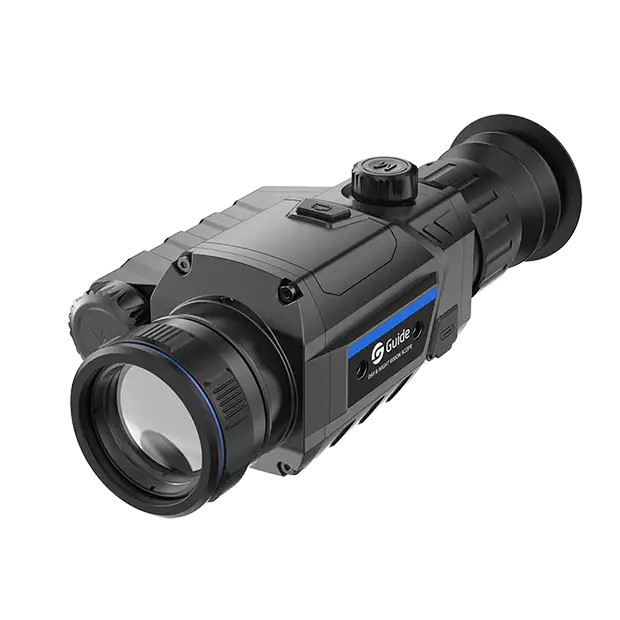

  • 1-620.png

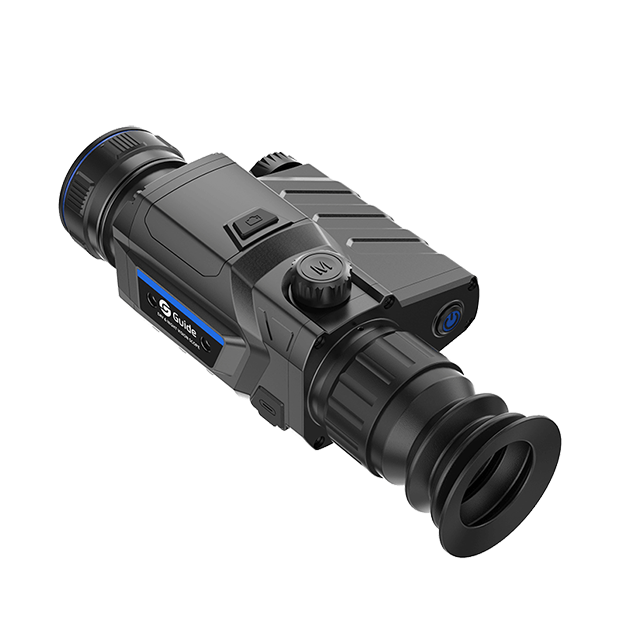

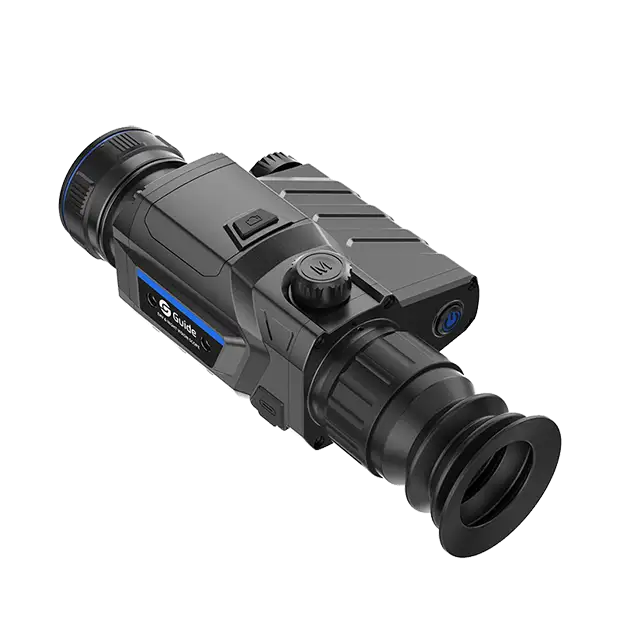

  • 2.png

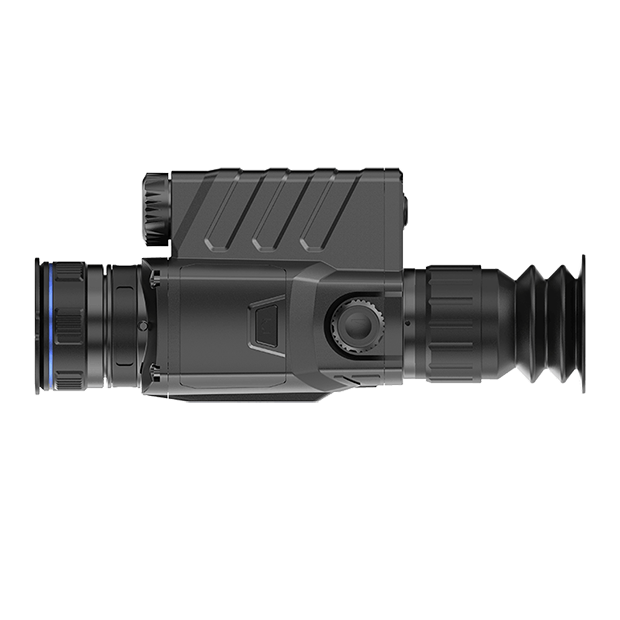

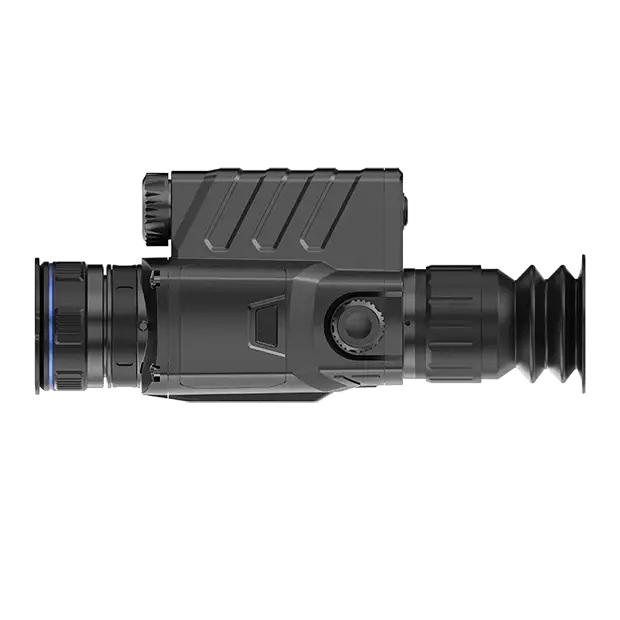

  • 3.png

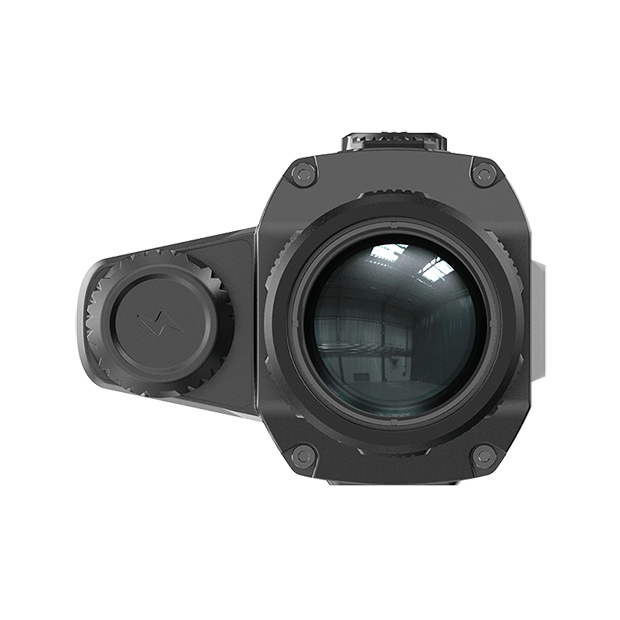

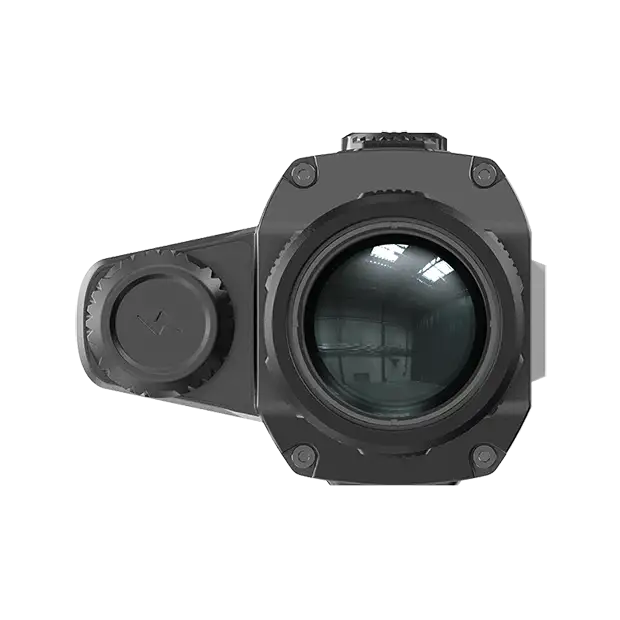

  • 4.png

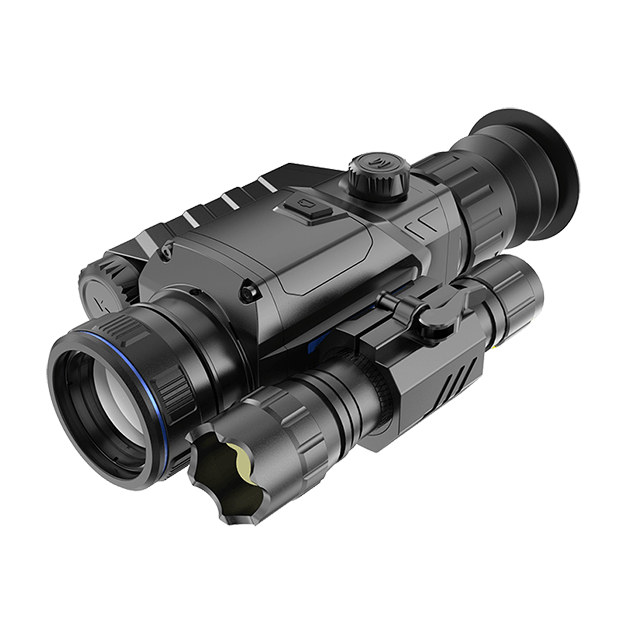

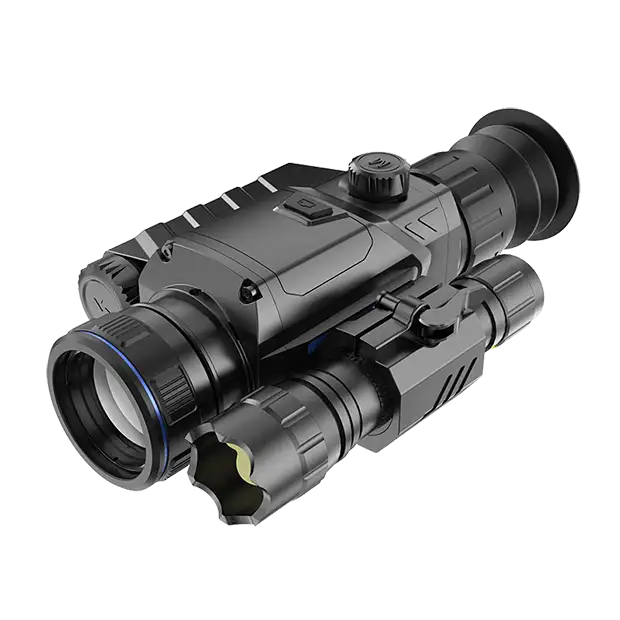

  • 5.png

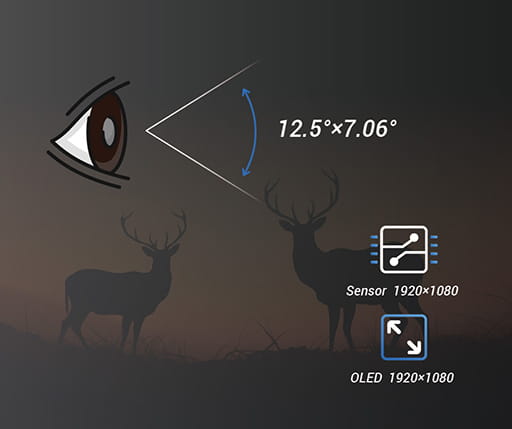

  • Ultra Large FOV Experience

    The 1920×1080@4μm sensor resolution comes with a 35mm lens creating a large field of view of 12.5°×7.06° while the 1920×1080 full HD OLED display ensures your viewing experience. Images are smoother and more detailed.

    • image-01.jpg

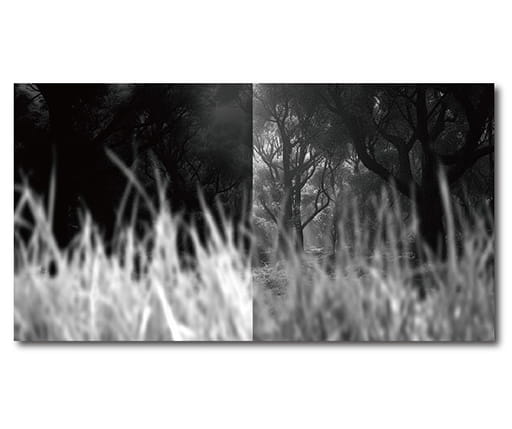

  • Clear Nighttime Imaging

    Upgraded algorithms balance the image brightness on the display when using the scope with an IR illuminator. Additionally, they eliminate flood exposure from foreground objects and increase the brightness of distant objects to a comfortable level, thus offering exceptional crisp images with less noise, ensuring a professional nighttime outdoor experience.

    • image-02.jpg

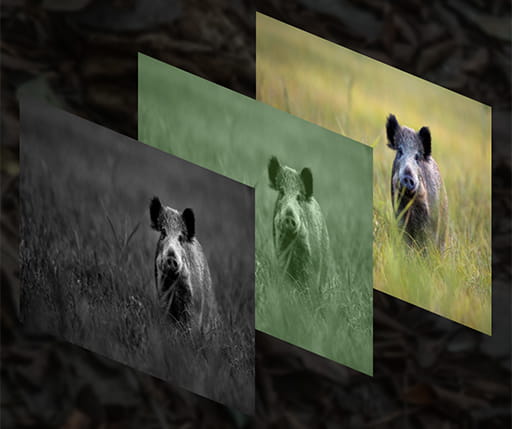

  • Three Viewing Modes

    Day Mode for realistic color rendering, Low-light Mode to capture and display every detail, and Night Mode for every motion capture.



    • image-03.jpg

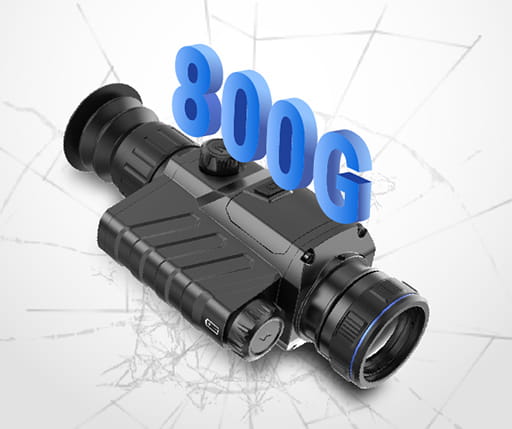

  • IP67 Waterproof

    IP67 offers strong protection even in various harsh outdoor environments such as wet and moist weather, featuring exceptionally high shock resistance up to 800G.



    • image-04.jpg

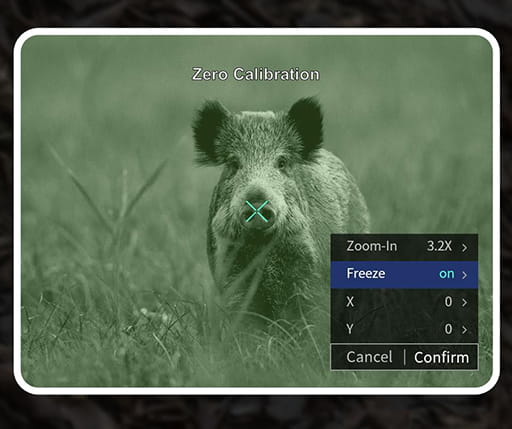

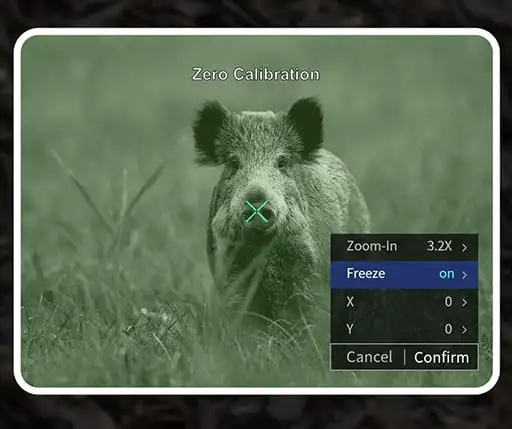

  • One-touch Freeze

    Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.



    • image-05.jpg

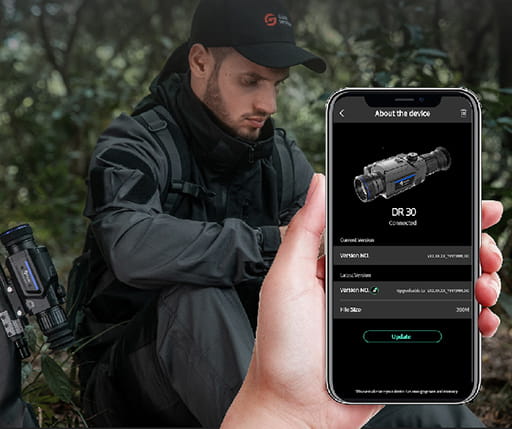

  • OTA Upgrade

    Firmware updates have become more intuitive, easier, and more convenient through OTA upgrades. By connecting to TargetIR APP, you can automatically update the firmware at home.

    • image-06.jpg

DR Series pc.jpg DR Series ph.jpg

Media Gallery

  • DSC08942_副本.jpg

  • DSC09069_副本.png

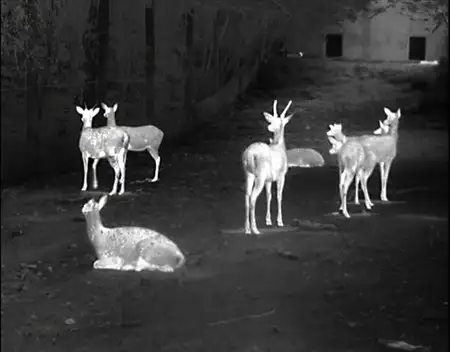

  • 夜视-鹿_副本.jpg

Technical Parameters

Model

DR30

ADD TO COMPARE

Sensor
Type CMOS
Resolution 1920×1080@4μm
Frame rate 50Hz
Lens
Objective lens 35mm, F1.2
Field of view 12.52°×7.06°
FOV m@100m 22×12
Magnification 2.175x~17.4x
Detection range 500m/550yd (850nm); 450m/500yd (940nm)
Display
Display type 0.39'' AMOLED 1920×1080
Scene modes Day, Night, Low-light
Eyepiece Eye relief: ≥ 48 mm; Diopter ± 4; Zoom: 14x
Hardware
IR illuminator 850nm/940nm (Alternative)
WIFI 2.4G
Interface USB Type-C
System
Recording function Photo/Video
Memory capacity 32 GB
Power
Battery type Single, replaceable 18650 battery
Operating time 6 hours
Environmental
Operating temp. -30°C to 50°C / -22°F to +122°F
Shock 800G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP67
Physical
Weight (g/oz) 565/19.93
Size (mm/in) 218×88×66/8.58×3.46×2.60
Standard Device, Sight base (Choose from two specifications), Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, IR illuminator, IR illuminator bracket, Quick start guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Laser rangefinder
