TN650

Handheld Thermal Binoculars

TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.

640×480IR resolution

50mm/F1.2Focal Length

≤30mKNETD

2.8X~22.4XMagnification

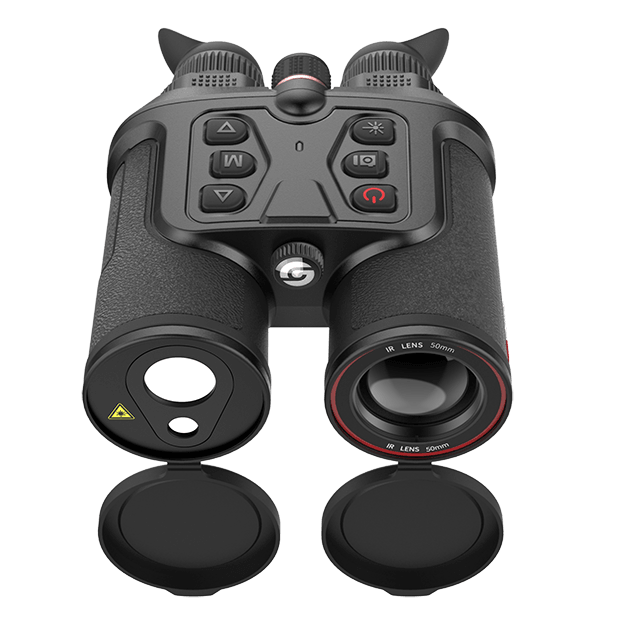

  • TN650xiaoguotu(3).png
  • 62c8113072003.png
  • TN650xiaoguotu(11).png
  • 62c8113072577.png

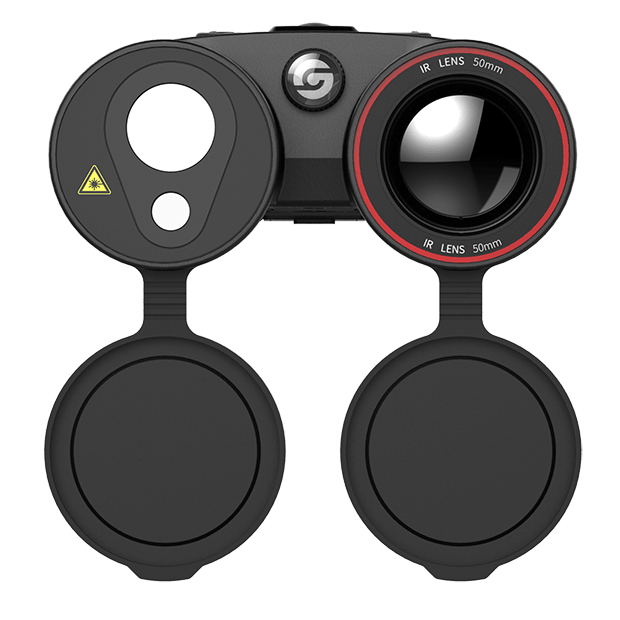

  • TN450650(1)-738.png

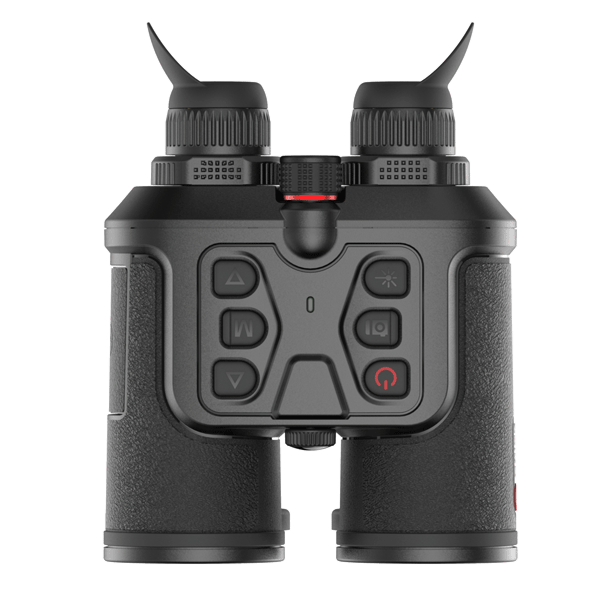

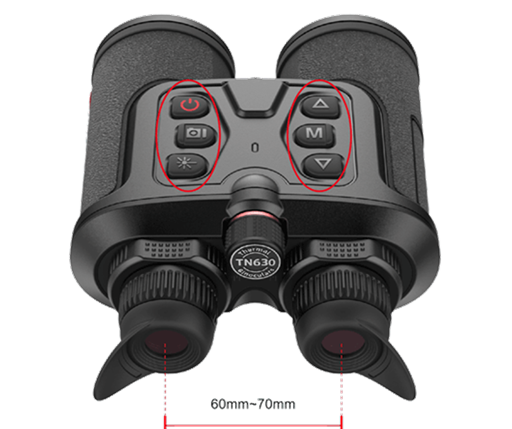

  • Ergonomic design Easy observation

    Binocular design, greatly reducing the fatigue feeling of long-time observation; Adjustable interpupillary distance between 60mm~70mm, Catering to different group of people; Ergonomic design,raised buttons can be quickly recognized by touch even in total darkness.

    • 62c811306969d_副本.png

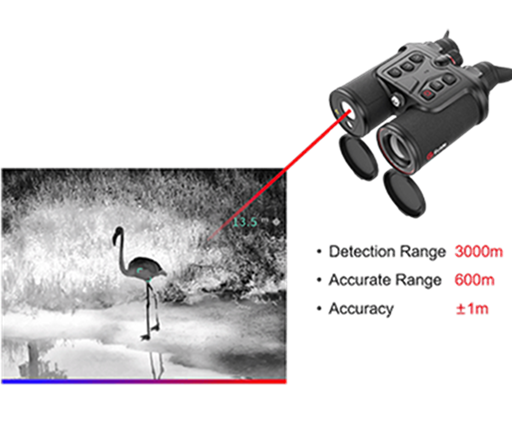

  • Quick location,All new experience

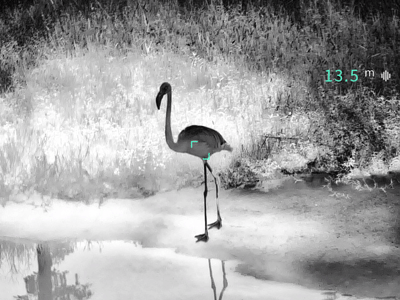

    In the dark, laser ranging ensures accurate location with distance information.

    • 2-200_副本_副本.png
  • High Quality Imaging In Day and Night

    Up to 640 x 512 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly.

    • 62c8113065160_副本.png

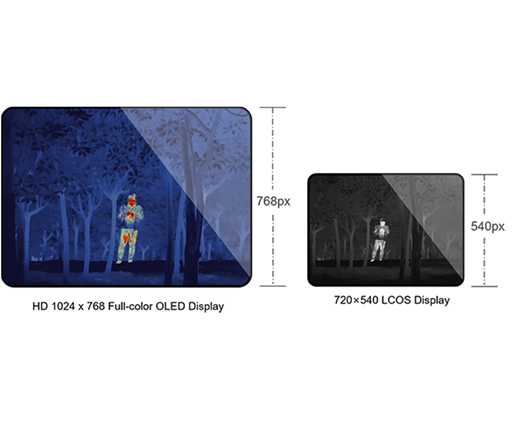

  • Full-color AMOLED display

    1024 x 768 Full-color AMOLED, High contrast, image details boost, Improving viewing comfort.

    • GuideTNseries_副本.png

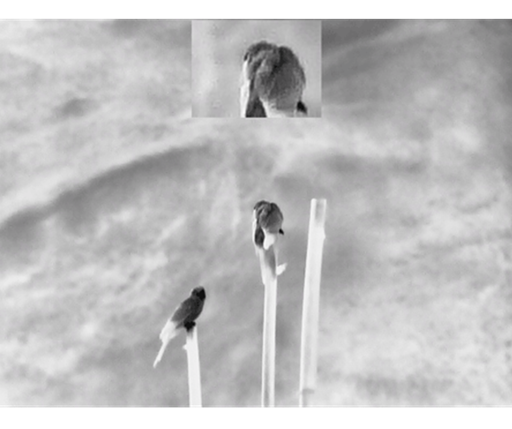

  • Well-designed PIP mode, highlighting the target

    PIP mode, Identify the location of the target instantly by PIP Mode even in outdoor

    • 62c8113065783_副本.png

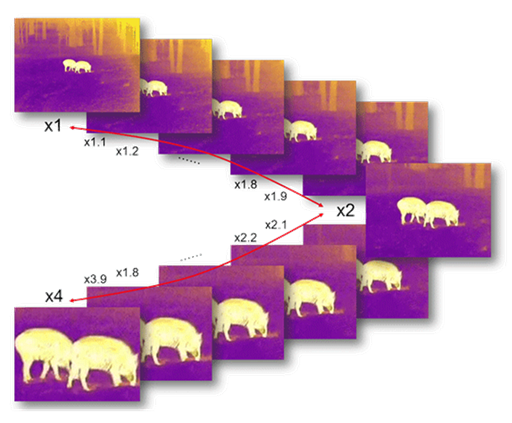

  • Smooth Zoom For Flexible Searching

    Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly

    • 62c8113065a5c_副本.png

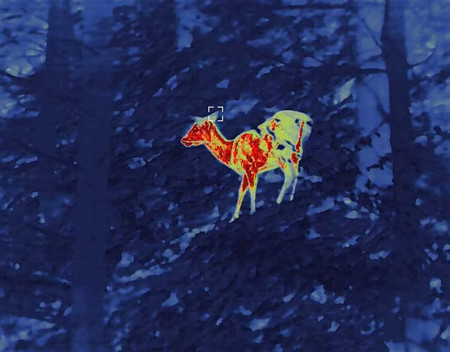

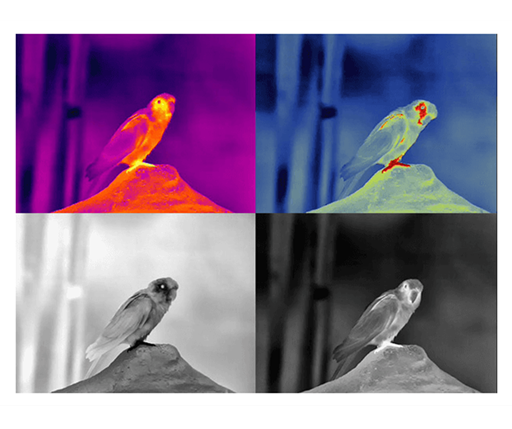

  • Multiple Color Palettes to Highlight the Target

    • Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.

    • Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

    • 62c8113065160_副本.png

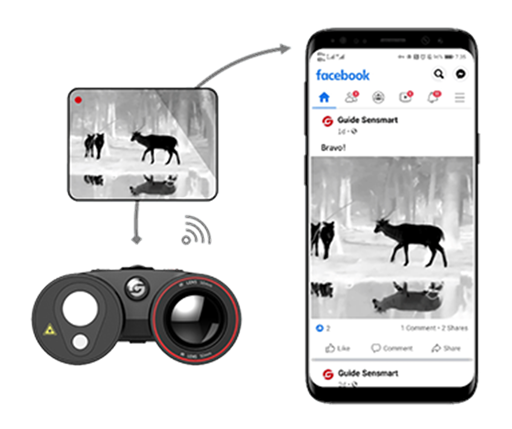

  • Photo and Video Recording

    Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.

    • 3-259_副本.png

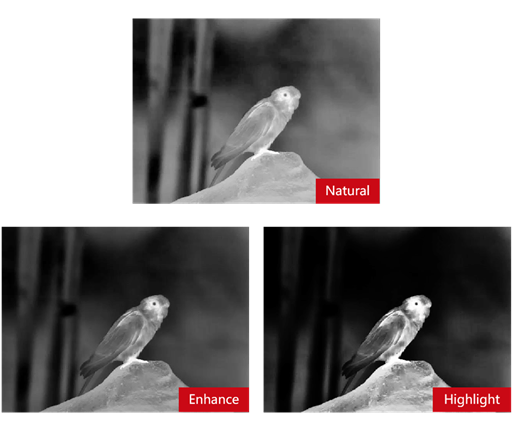

  • Multiple scene modes,Highlight Target Clearly

    “Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively  reduce image impurities to highlight the target.

    • 62c8113066058_副本.png

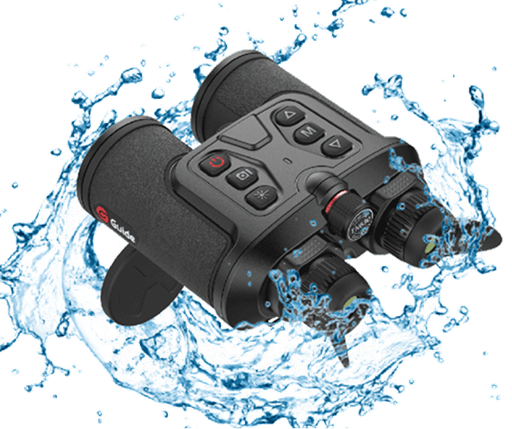

  • IP66, 1-meter Drop test

    With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~55°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed

    • 62c8113066611_副本.png

TNSeriespc.jpg TNSeriesph.jpg

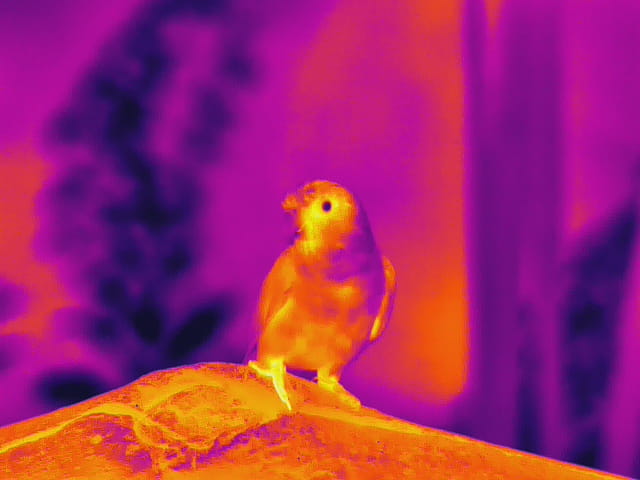

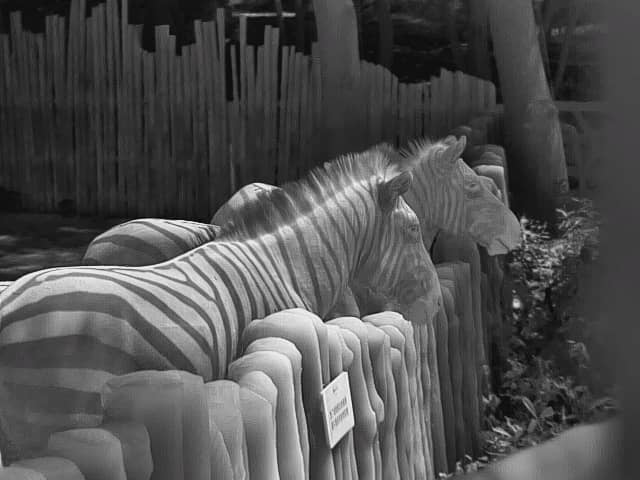

Media Gallery

  • 62c81130669de.png

  • 62c8113066cb4.jpg

  • TN-鹿1_副本.jpg

  • 62c811306719a.jpg

Technical Parameters

Model

TN650

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×480@12μm
NETD 30mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.2
Field of view 8.78°×6.59°
FOV m@100m 15×12
Magnification 2.8x~22.4x
Detection range 2600m/2800yd
Display
Display type 0.39'' AMOLED 1024×768
Color palettes Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
Eyepiece Eye relief: 16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x
Hardware
Laser rangefinder 1500m/1630yd
WIFI 2.4G
Interface USB Type-C; Micro HDMI
Others GPS, Compass, Gyroscope, Bluetooth
System
Recording function Photo/Video
Memory capacity 16GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 5.5 hours
Environmental
Operating temp. -30°C to 50°C / -22°F to +122°F
Encapsulation IP66
Physical
Weight (g/oz) 880/31.04
Size (mm/in) 162×146×70/6.38×5.75×2.76
Standard Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide
Optional Extended bracket, Bluetooth remote control
